17030-02
Product Overview

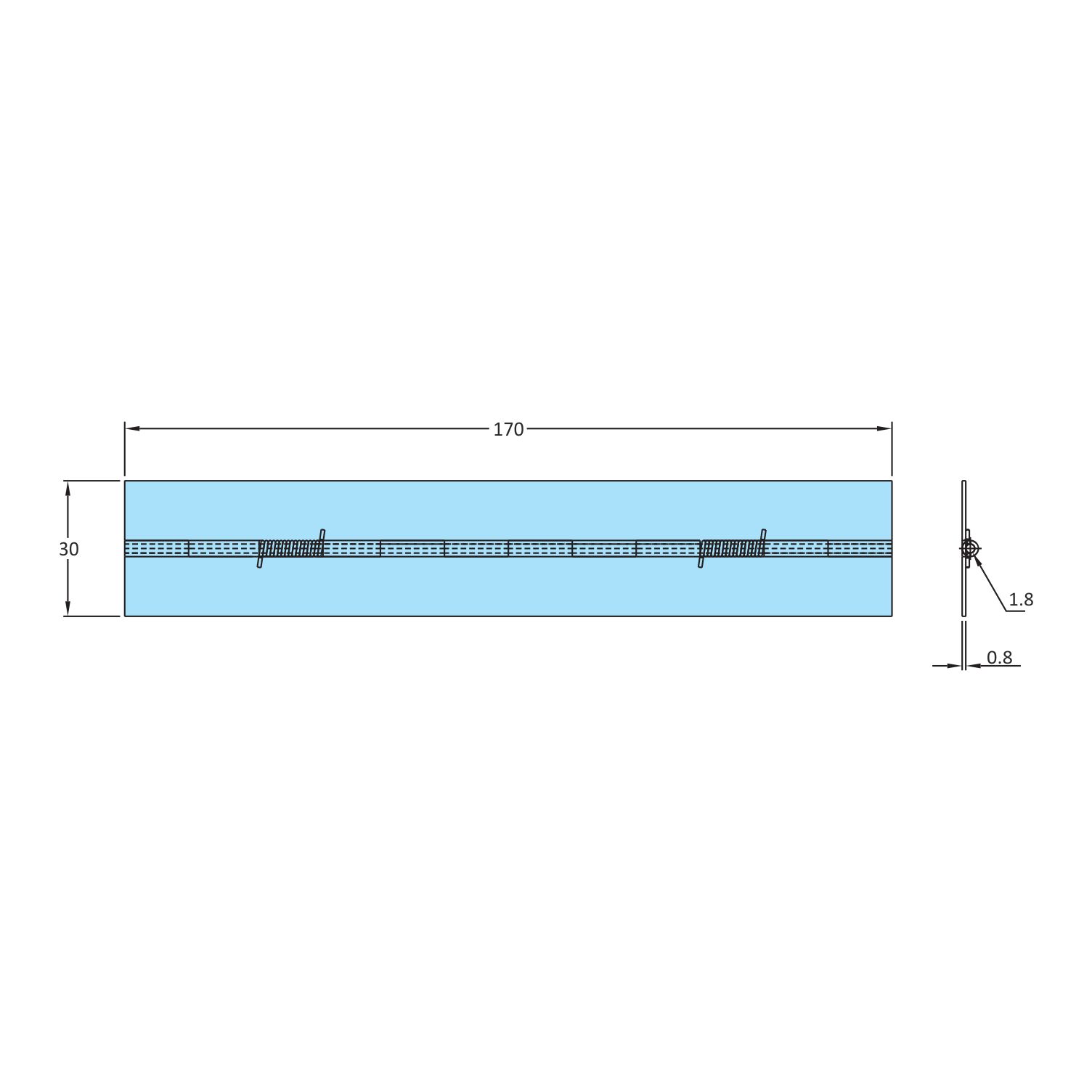

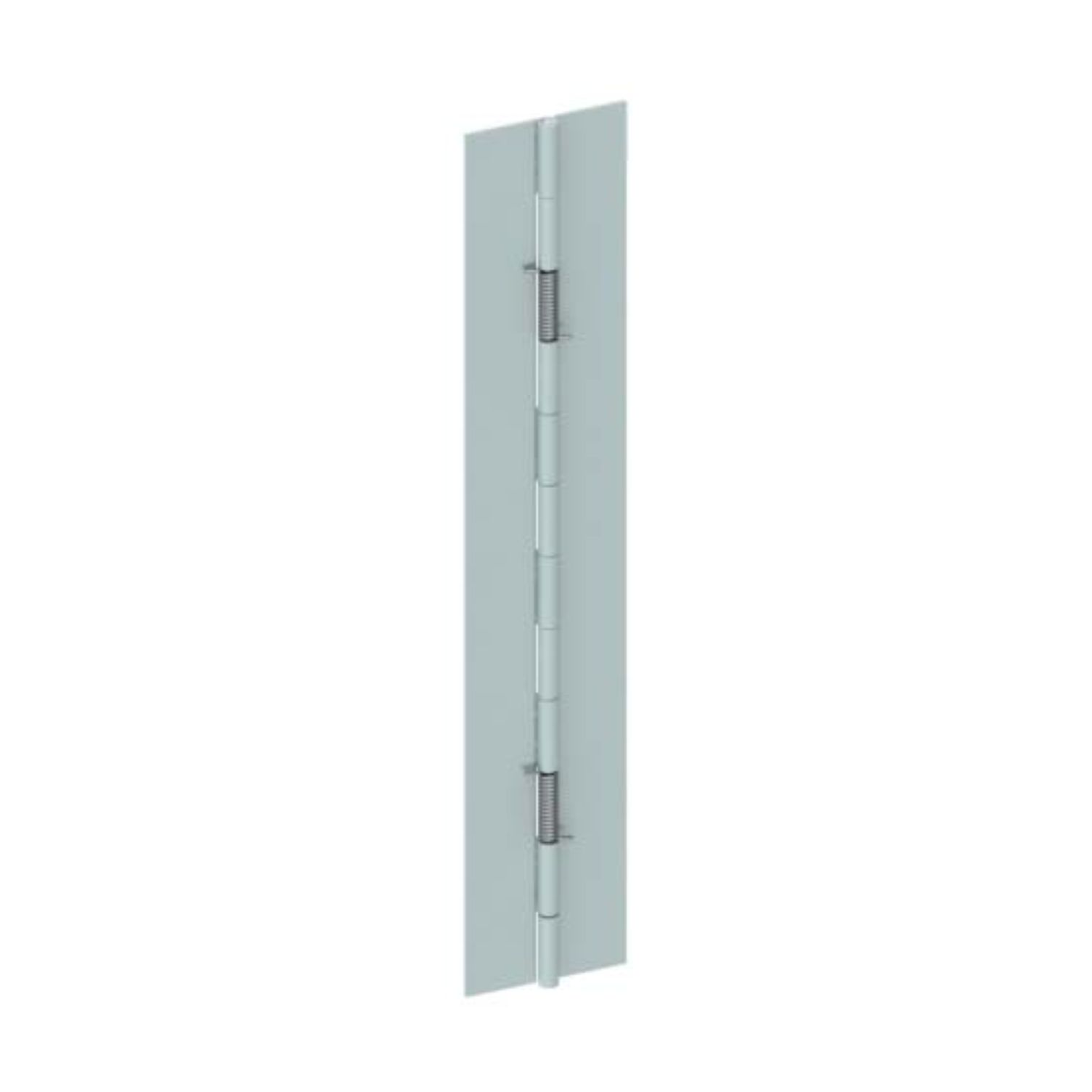

Rolled Knuckle Spring Hinges - Opening Spring Hinges 170 mm Long
Technical Specifications
| Material: | Stainless Steel-304 |
| Finish: | Electro Polish |
| Note: | Opening Spring |
| Opening Angle: | 270° |
| Spring: | Stainless Steel-304 |
| Opening Spring Froce M(0°): | 0.24 N.m |
| Opening Spring Froce M(90°): | 0.19 N.m |
| Opening Spring Froce M(180°): | 0.14 N.m |
| Weight Kgs: | 0.041 |
