5050-03
Product Overview

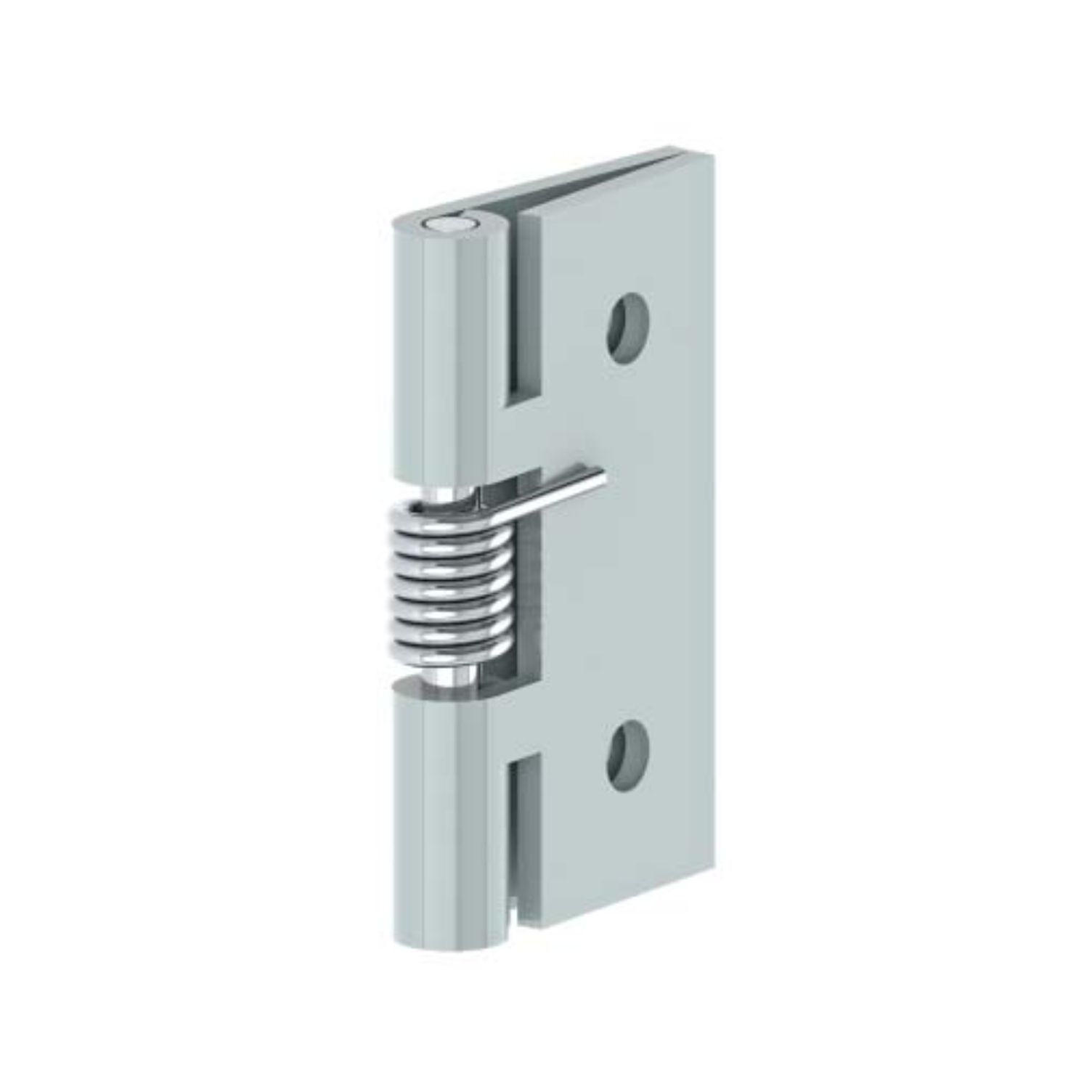

Rolled Knuckle Spring Hinges - Closing Spring Hinges 50 mm Long
Technical Specifications
| Material: | Steel |
| Finish: | Zinc Plated |
| Note: | Closing Spring |
| Closing Angle: | 270° |
| Spring: | Stainless Steel-304 |
| Closing Spring Froce M(0°): | 0.25N.m |
| Closing Spring Froce M(90°): | 0.65 N.m |
| Closing Spring Froce M(180°): | 1.1N.m |
| Weight Kgs: | 0.05 |
