6035-03
Product Overview

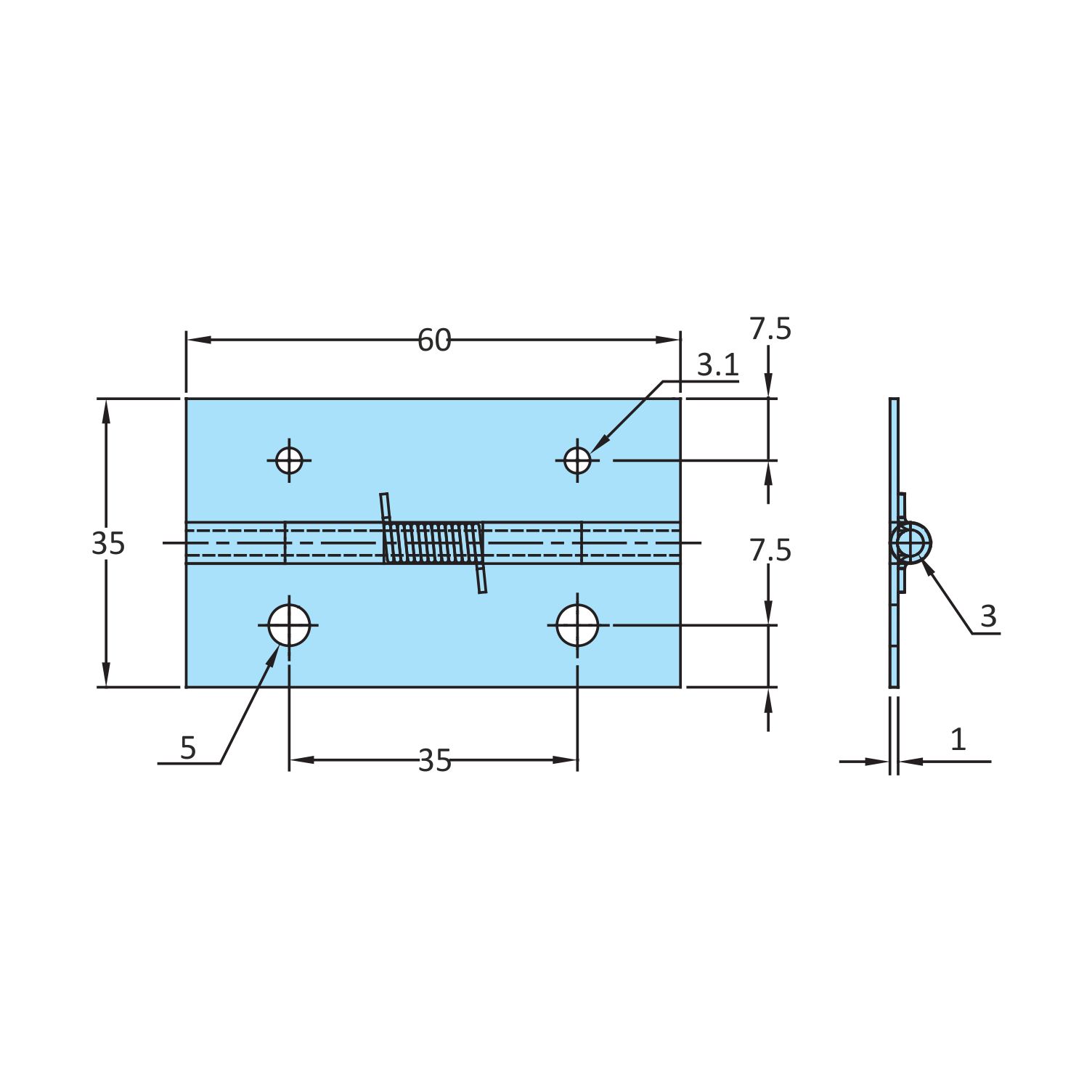

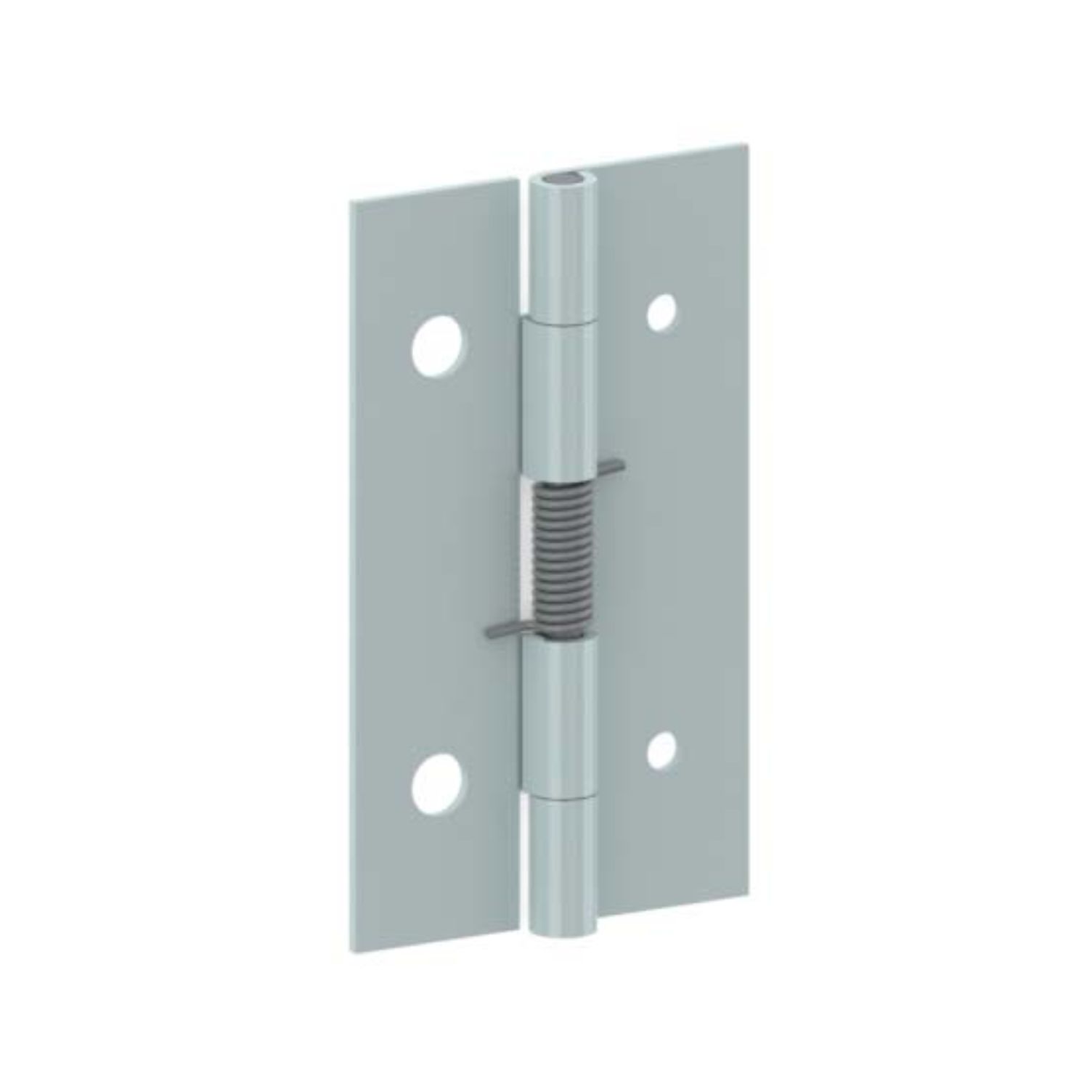

Rolled Knuckle Spring Hinges - Opening Spring Hinges 60 mm Long-With 4 holes
Technical Specifications
| Material: | Stainless Steel-304 |
| Finish: | Electro Polish |
| Note: | Opening Spring |
| Opening Angle: | 270° |
| Spring: | Stainless Steel-304 |
| Opening Spring Froce M(0°): | 0.11 N.m |
| Opening Spring Froce M(90°): | 0.09 N.m |
| Opening Spring Froce M(180°): | 0.07 N.m |
| Weight Kgs: | 0.022 |
