7530-01
Product Overview

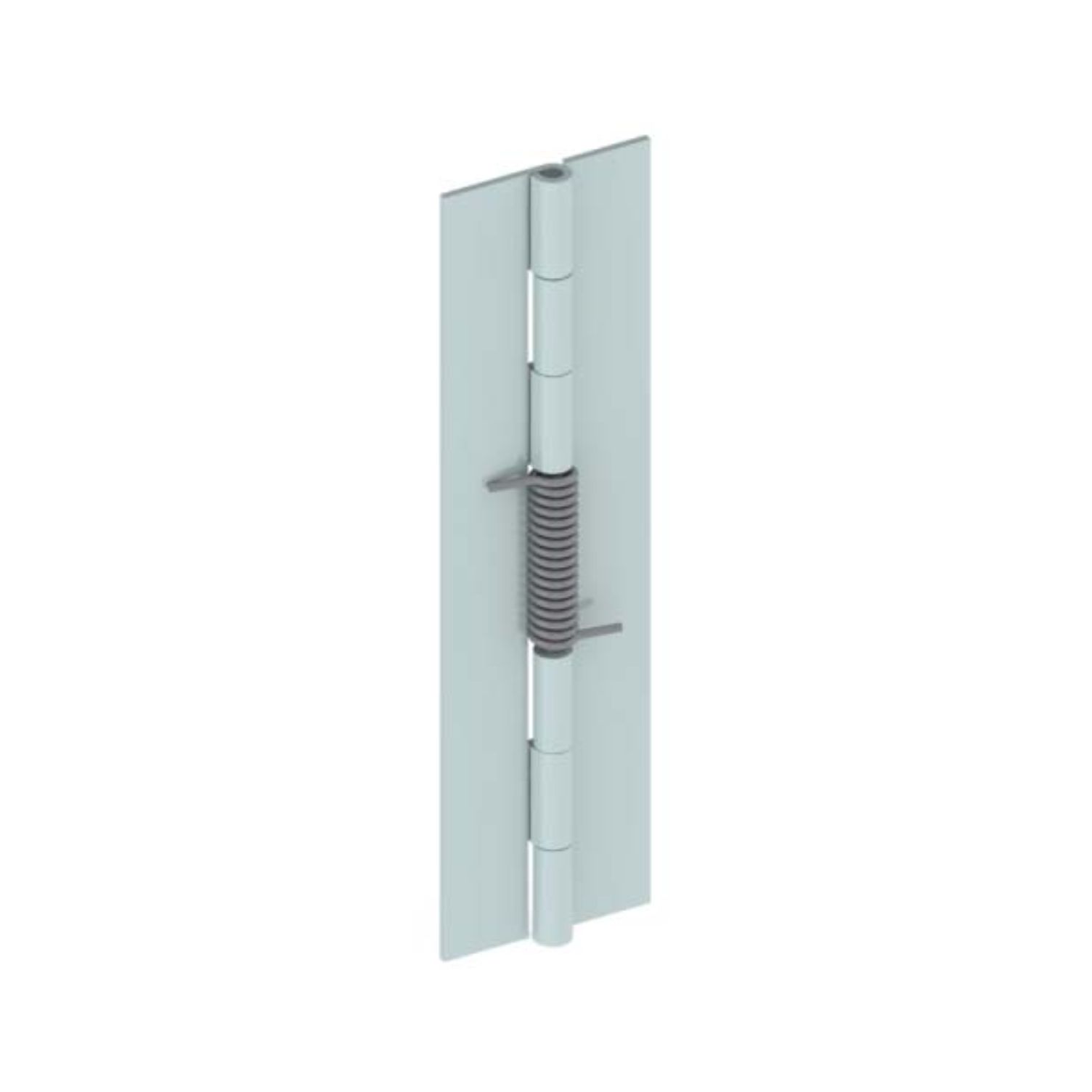

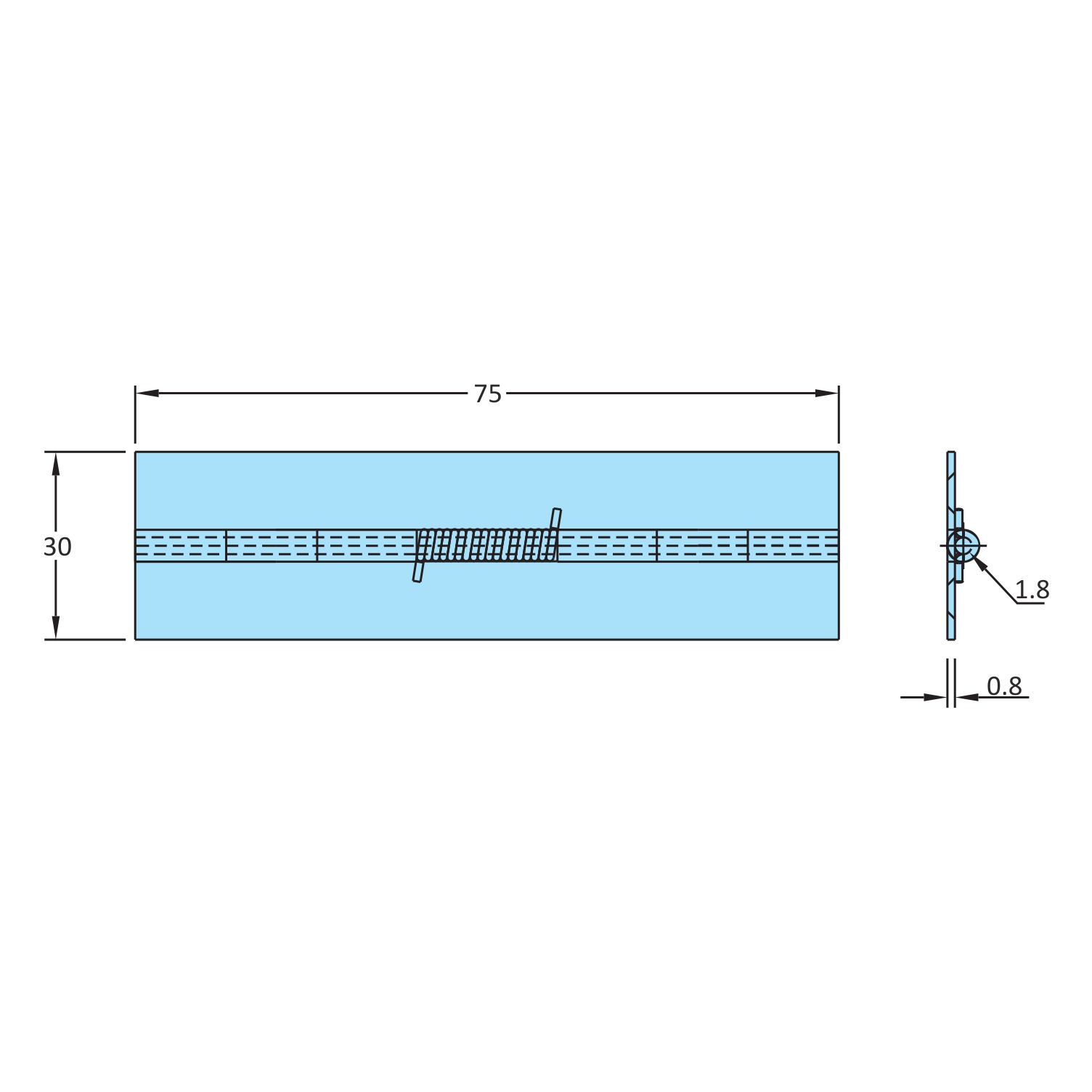

Rolled Knuckle Spring Hinges - Opening Spring Hinges 75 mm Long-Undrilled
Technical Specifications
| Material: | Steel |
| Finish: | Zinc Plated |
| Note: | Opening Spring |
| Opening Angle: | 270° |
| Spring: | Stainless Steel-304 |
| Opening Spring Froce M(0°): | 0.012 N.m |
| Opening Spring Froce M(90°): | 0.095 N.m |
| Opening Spring Froce M(180°): | 0.07 N.m |
| Weight Kgs: | 0.018 |
