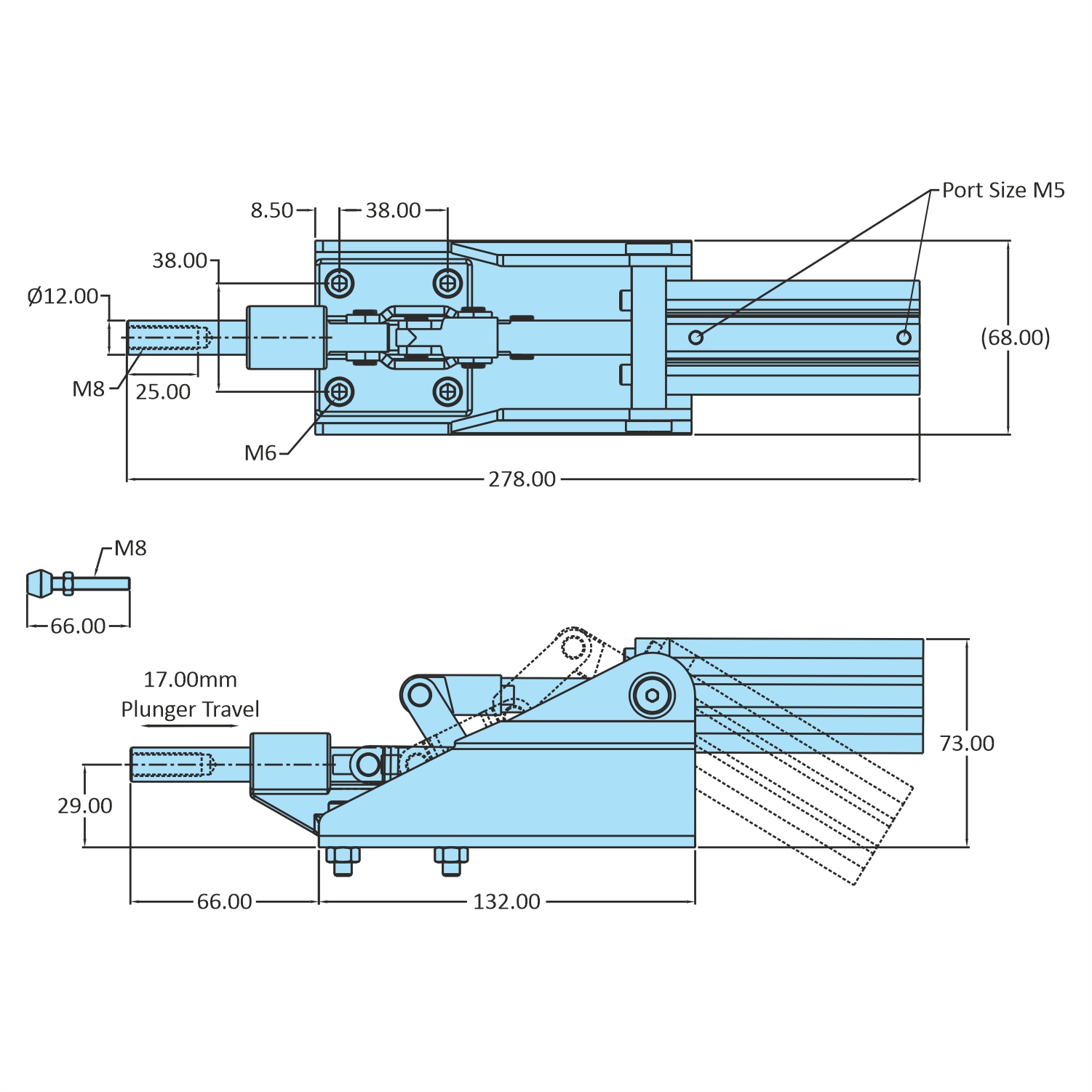

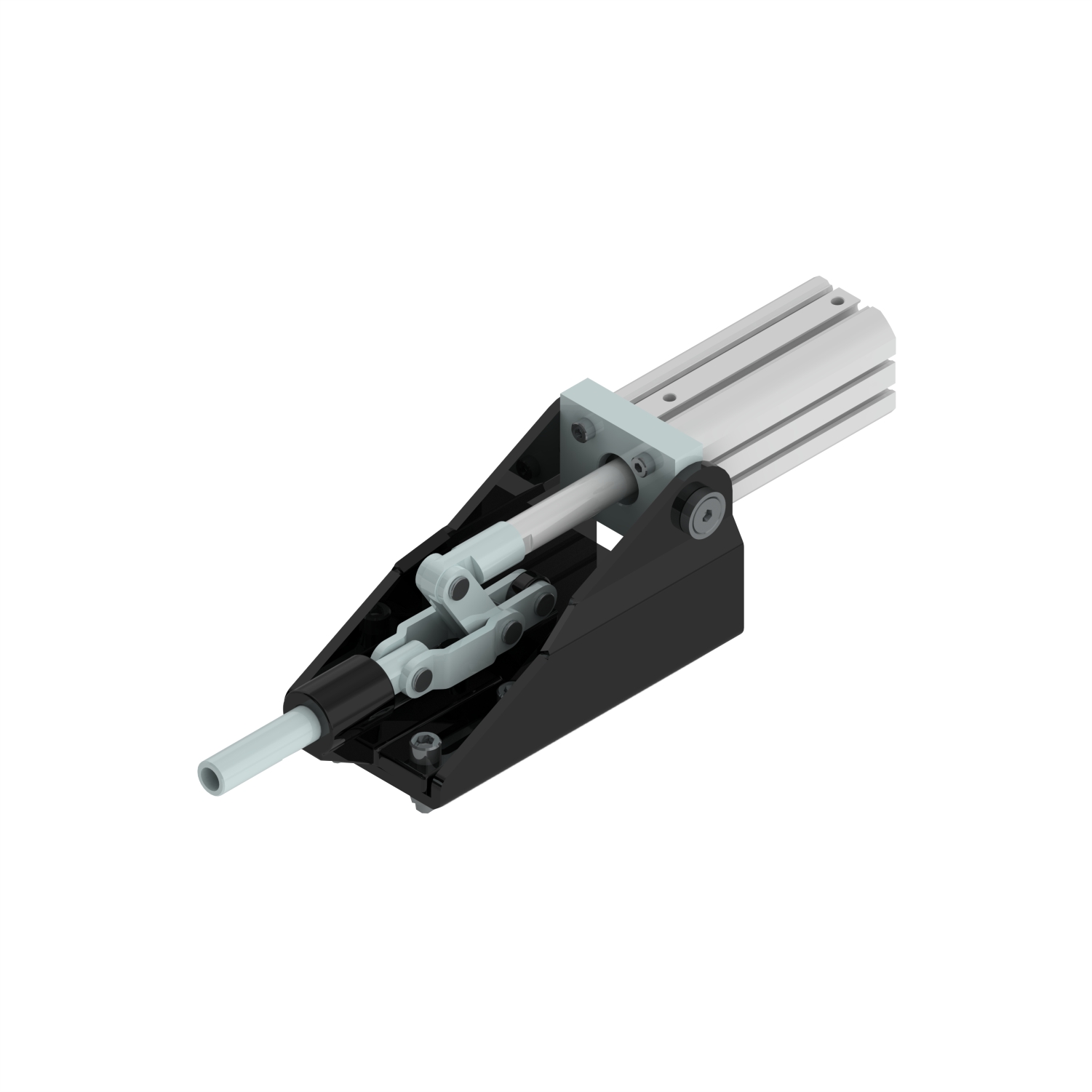

AOT-2530-HTC
AOT-2530-HTC Pneumatic Clamps, Straight Line Action
Product Overview
Pneumatic Clamps, Straight Line Action
Technical Specifications
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 25 mm |
| Cylinder Stroke: | 50 mm |
| Material: | Steel |
| Holding Capacity: | 2.90 kN |
| Plunger Travel: | 17.00 mm |
| Length: | 278.00 mm |
| Width: | 68.00 mm |
| Height: | 73.00 mm |
| Supplied with Spindle: | RT-865-1N |
| Weight: | 1.400 Kgs |
