AOT-2535-SB-FS

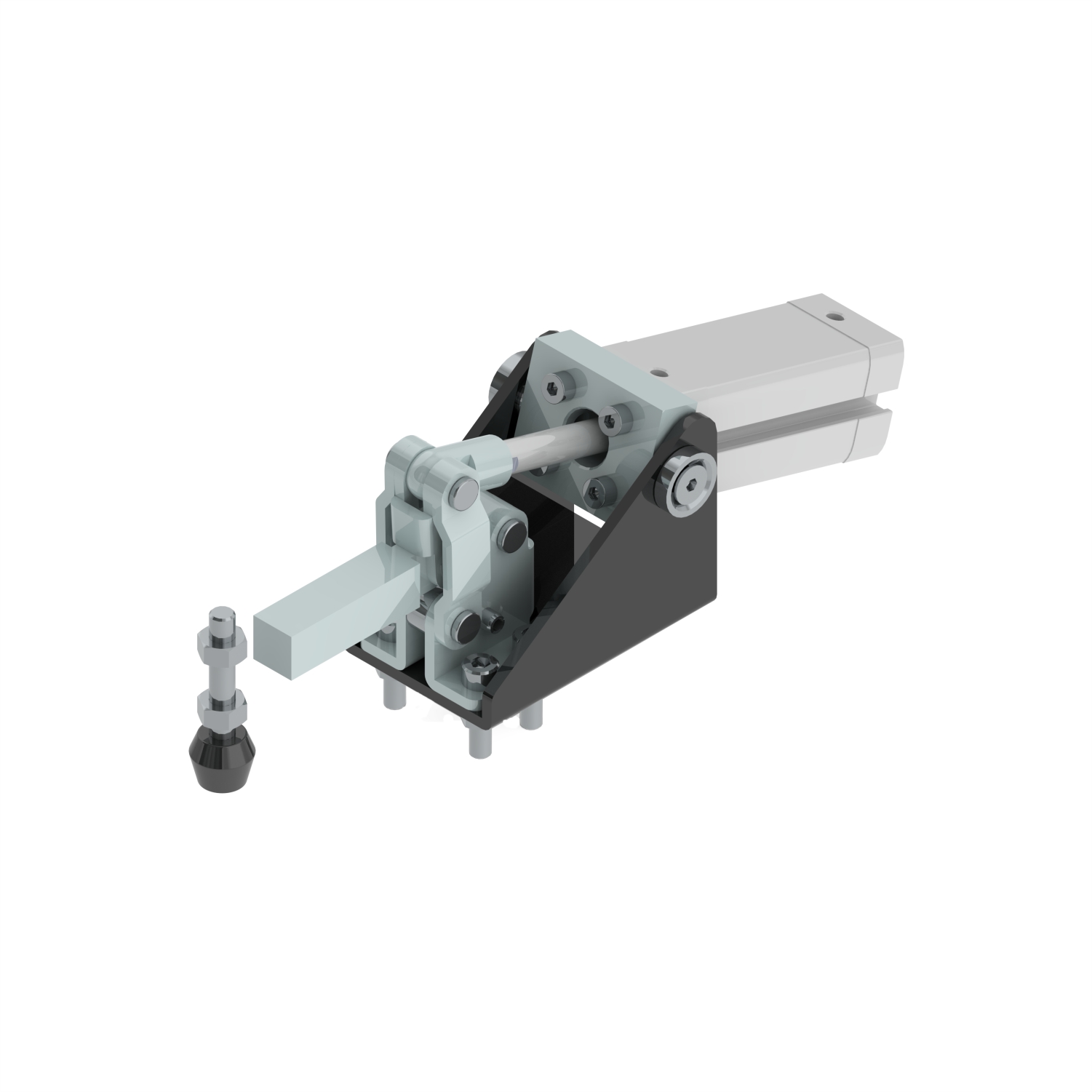

AOT-2535-SB-FS Pneumatic Clamps, HV Hold Down Action
Product Overview
Pneumatic Clamps, HV Hold Down Action

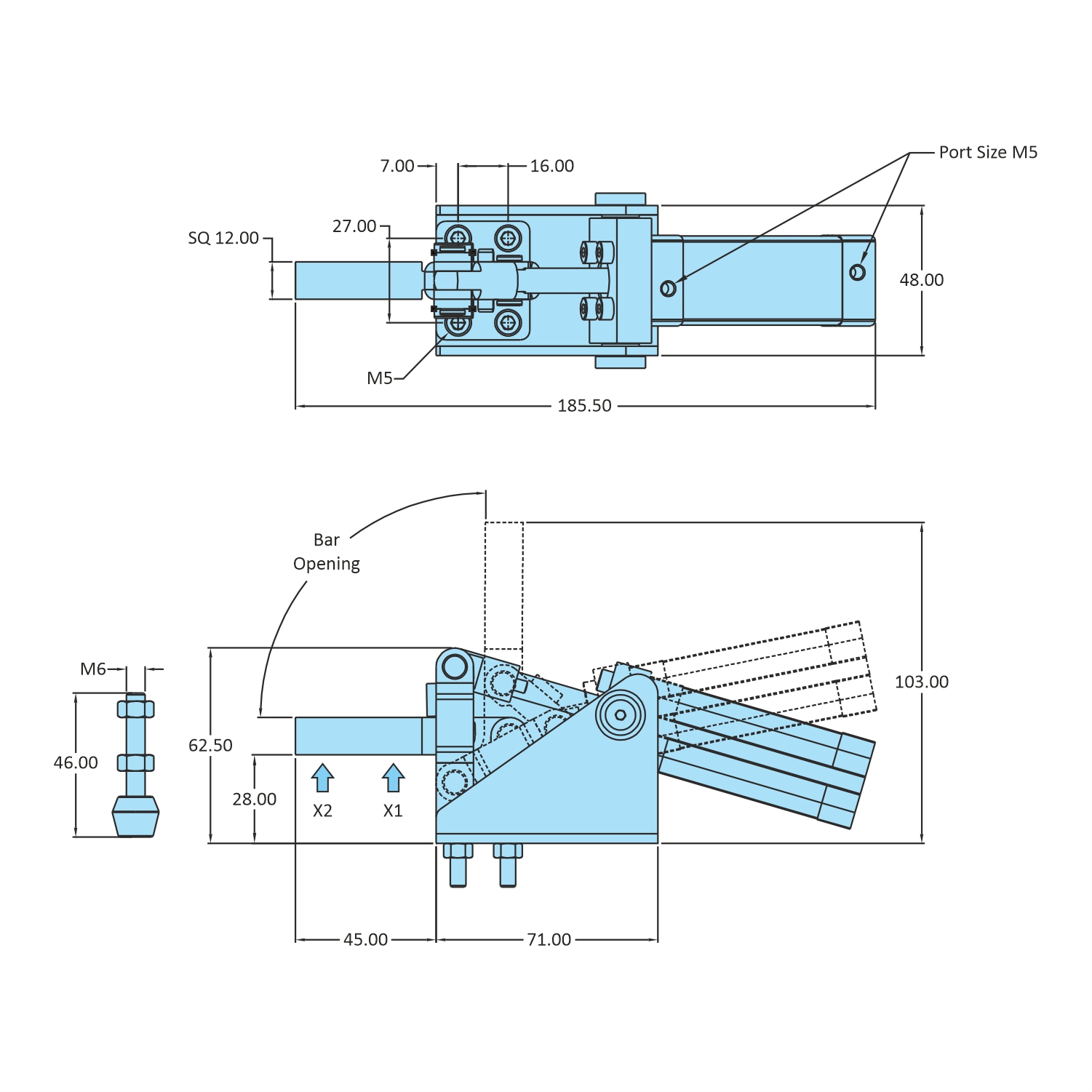

Technical Specifications
| Arm Type: | Solid Arm |
| Cylinder Type : | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 16 mm |
| Cylinder Stroke : | 40 mm |
| Material: | Steel |
| Holding Capacity X2: | 0.50 kN |
| Holding Capacity X1: | 1.00 kN |
| Length: | 185.50 mm |
| Width: | 48.00 mm |
| Height: | 62.50 mm |
| Clamp Bar Opening (±3°): | 90° |
| Supplied with Spindle: | RT-645-2N |
| Weight: | 0.700 Kgs |
