AOT-2845-UB-FC

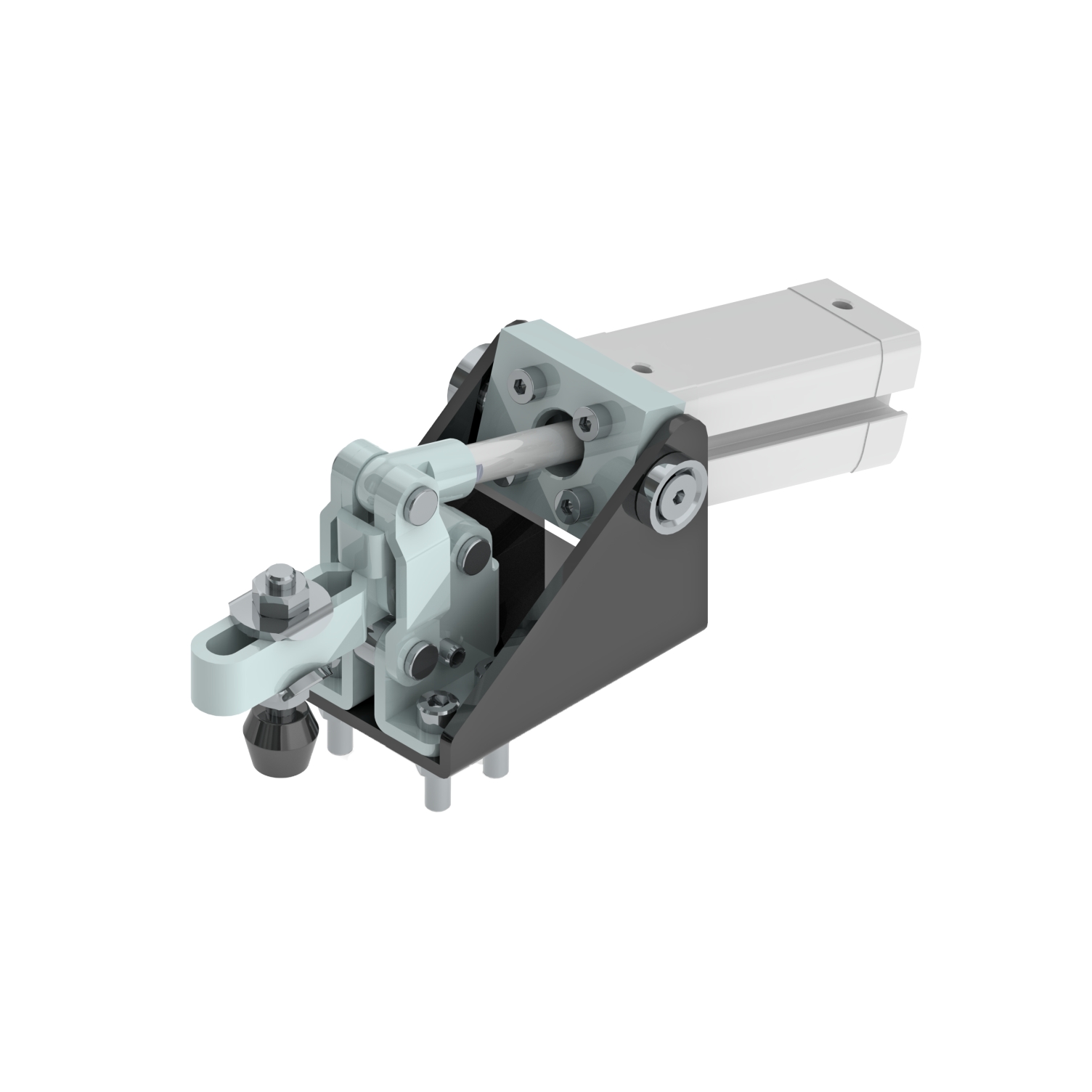

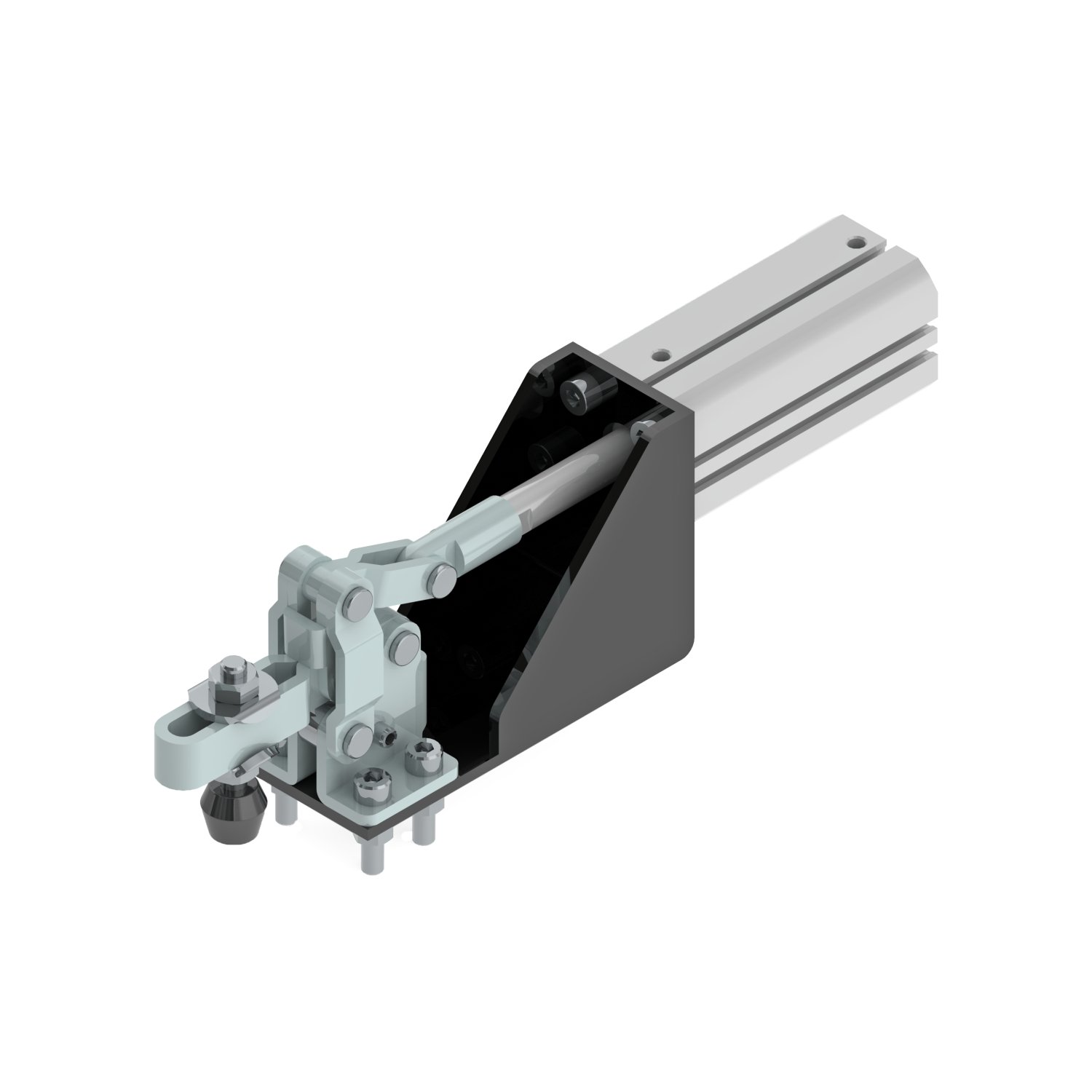

AOT-2845-UBFC Pneumatic Clamps, Hold Down Action, Fixed Cylinder
Product Overview
Pneumatic Clamps, Hold Down Action, Fixed Cylinder
Technical Specifications
| Arm Type: | Adjustable Arm |
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 20 mm |
| Cylinder Stroke: | 40 mm |
| Material: | Steel |
| Holding Capacity X2: | 0.50 kN |
| Holding Capacity X1: | 1.00 kN |

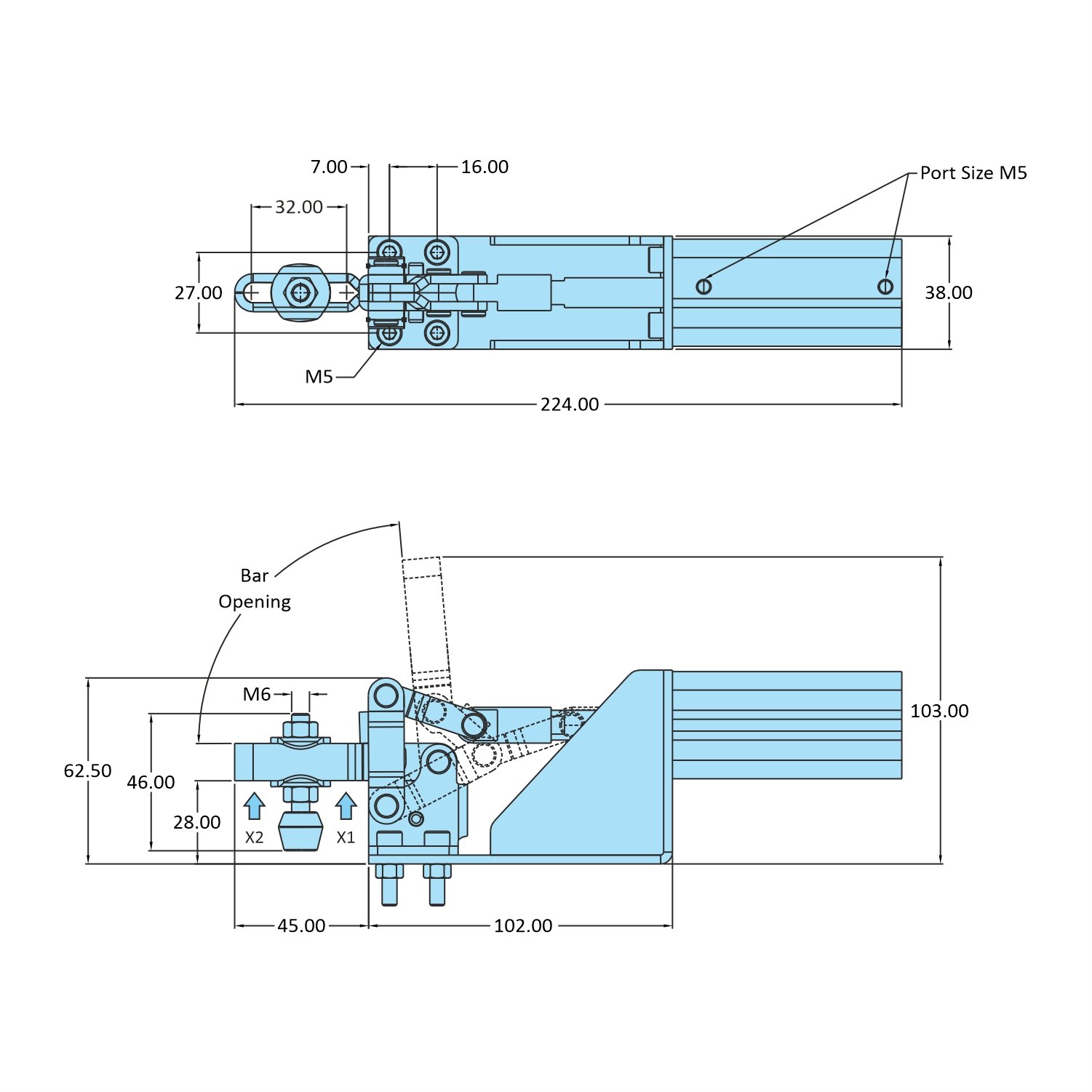

| Length: | 224.00 mm |
| Width: | 38.00 mm |
| Height: | 62.50 mm |
| Clamp Bar Opening (±3°): | 85° |
| Supplied with Spindle: | RT-645-2N2W |
| Weight: | 0.700 Kgs |
