AOT-3550-HTC
AOT-3550-HTC Pneumatic Clamps, Straight Line Action
Product Overview
Pneumatic Clamps, Straight Line Action

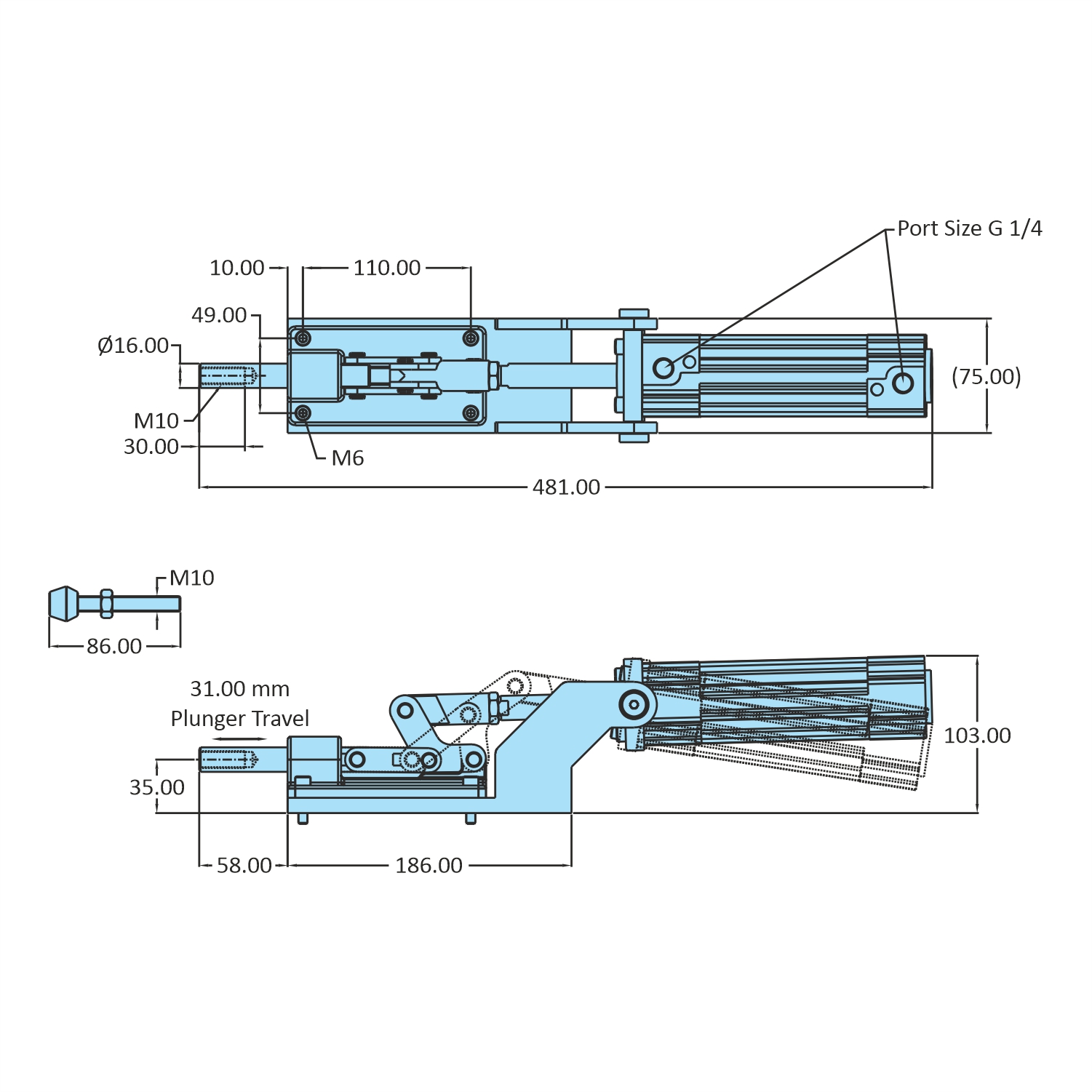

Technical Specifications
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 40 mm |
| Cylinder Stroke: | 80 mm |
| Material: | Steel |
| Holding Capacity: | 7.80 kN |
| Plunger Travel: | 31.00 mm |
| Length: | 481.00 mm |
| Width: | 75.00 mm |
| Height: | 103.00 mm |
| Supplied with Spindle: | RT-1085-1N |
| Weight: | 4.100 Kgs |
