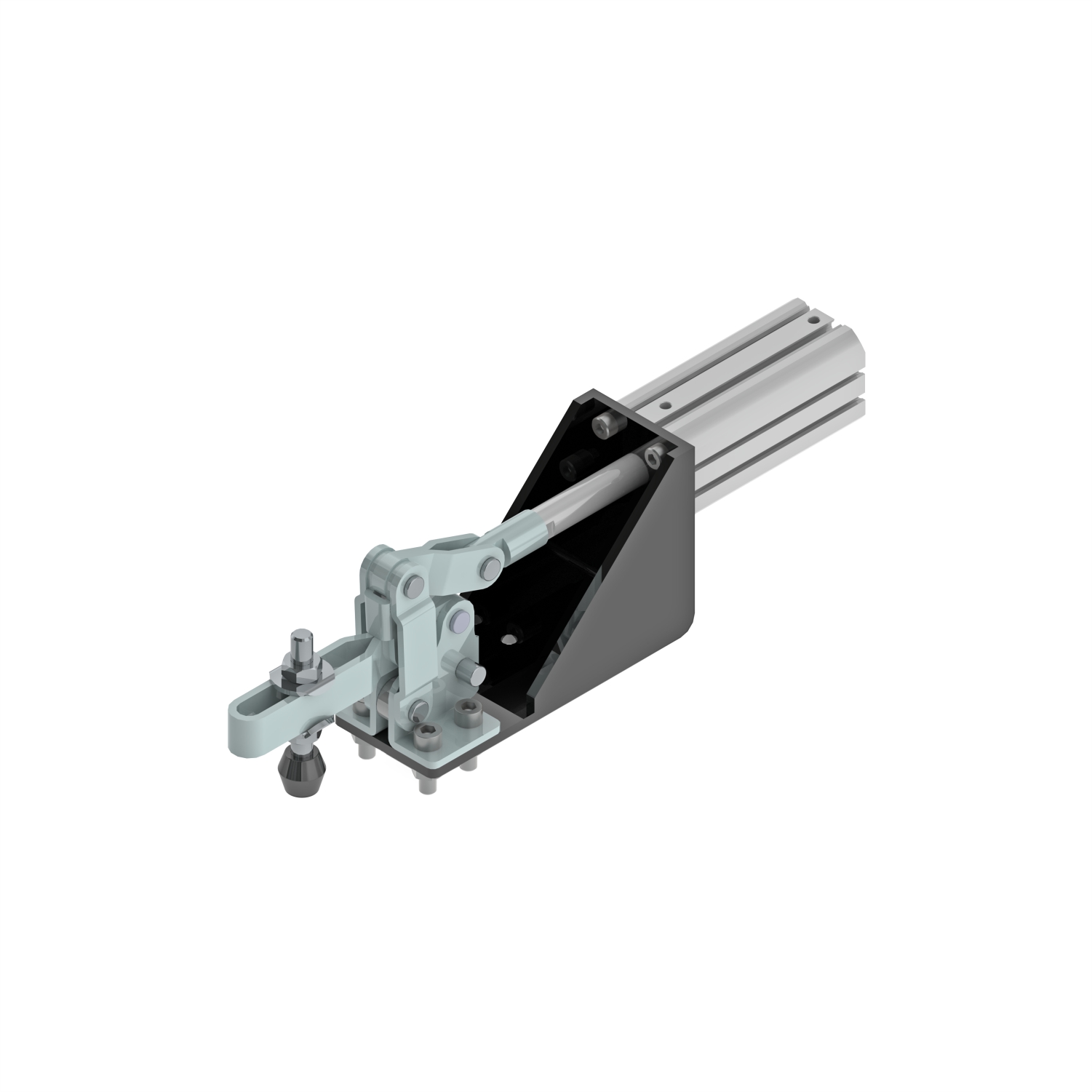

AOT-3565-UB-FC
Product Overview
Pneumatic Clamps, Hold Down Action, Fixed Cylinder
Technical Specifications
| Arm Type: | Adjustable Arm |
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 25 mm |
| Cylinder Stroke: | 50 mm |
| Material: | Steel |
| Holding Capacity X2: | 1.00 kN |
| Holding Capacity X1: | 2.00 kN |

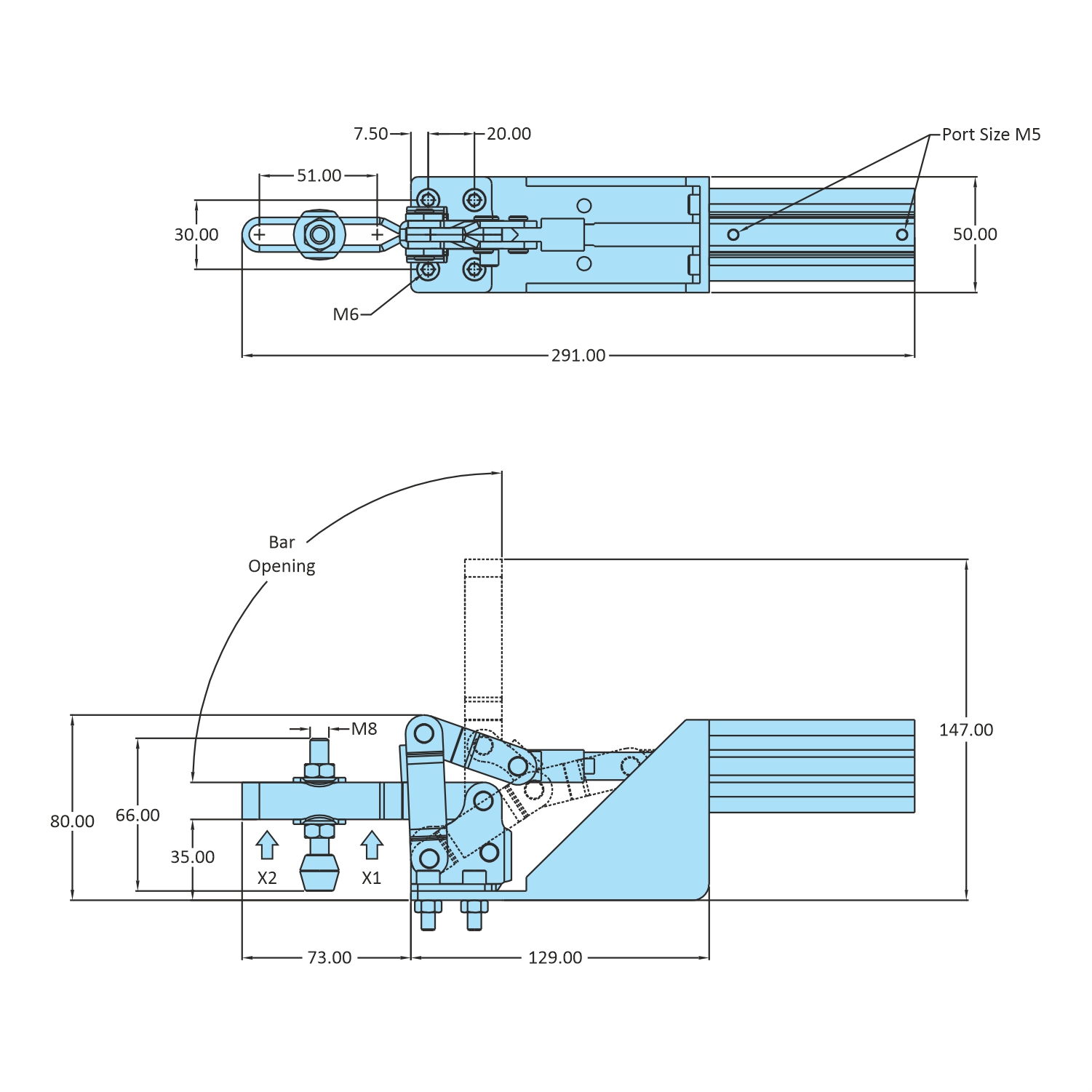

| Length: | 291.00 mm |
| Width: | 50.00 mm |
| Height: | 80.00 mm |
| Clamp Bar Opening (±3°): | 90° |
| Supplied with Spindle: | RT-865-2N2W |
| Weight: | 1.200 Kgs |
