AOT-3586-SB

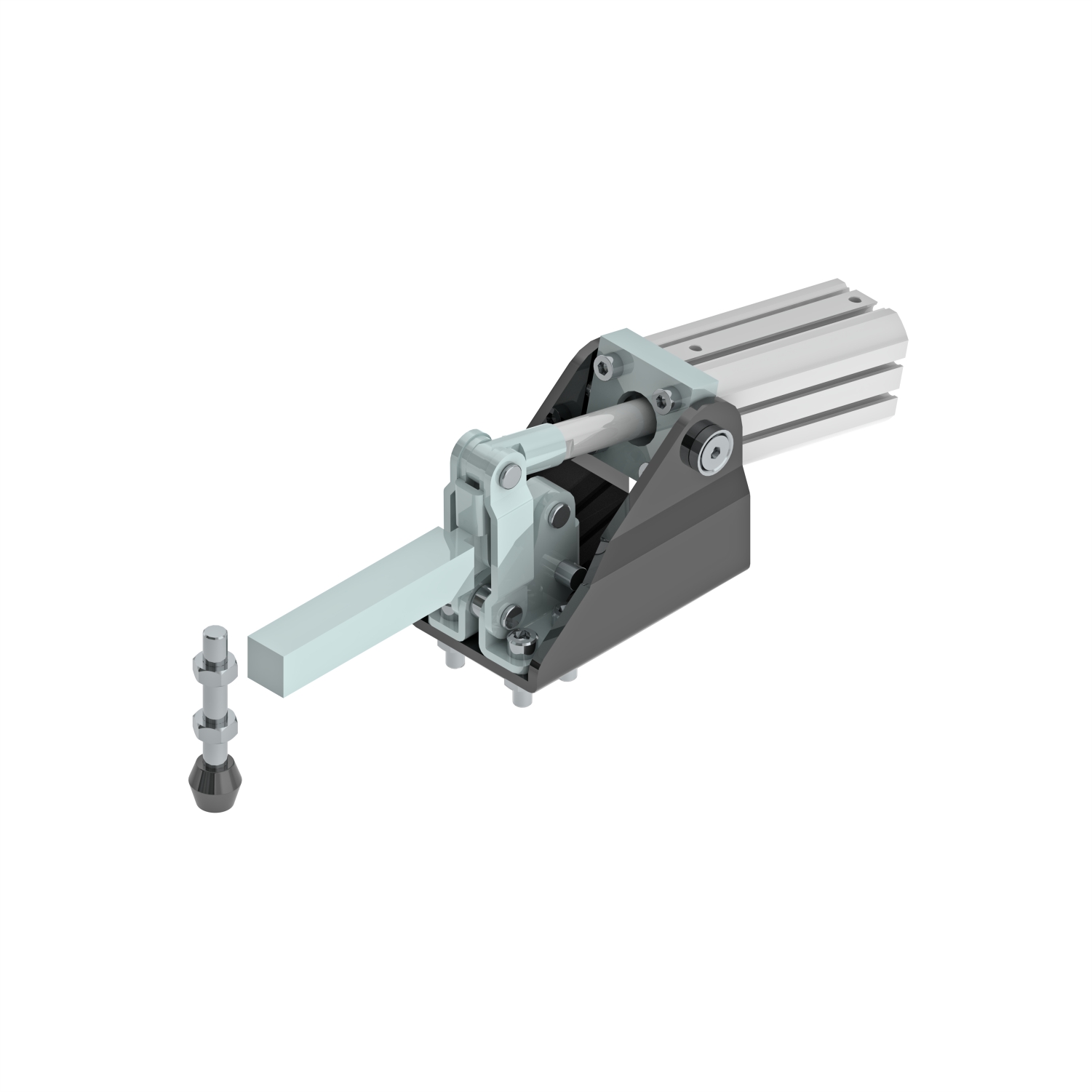

AOT-3586-SB Pneumatic Clamps, Hold Down Action
Product Overview
Pneumatic Clamps, Hold Down Action

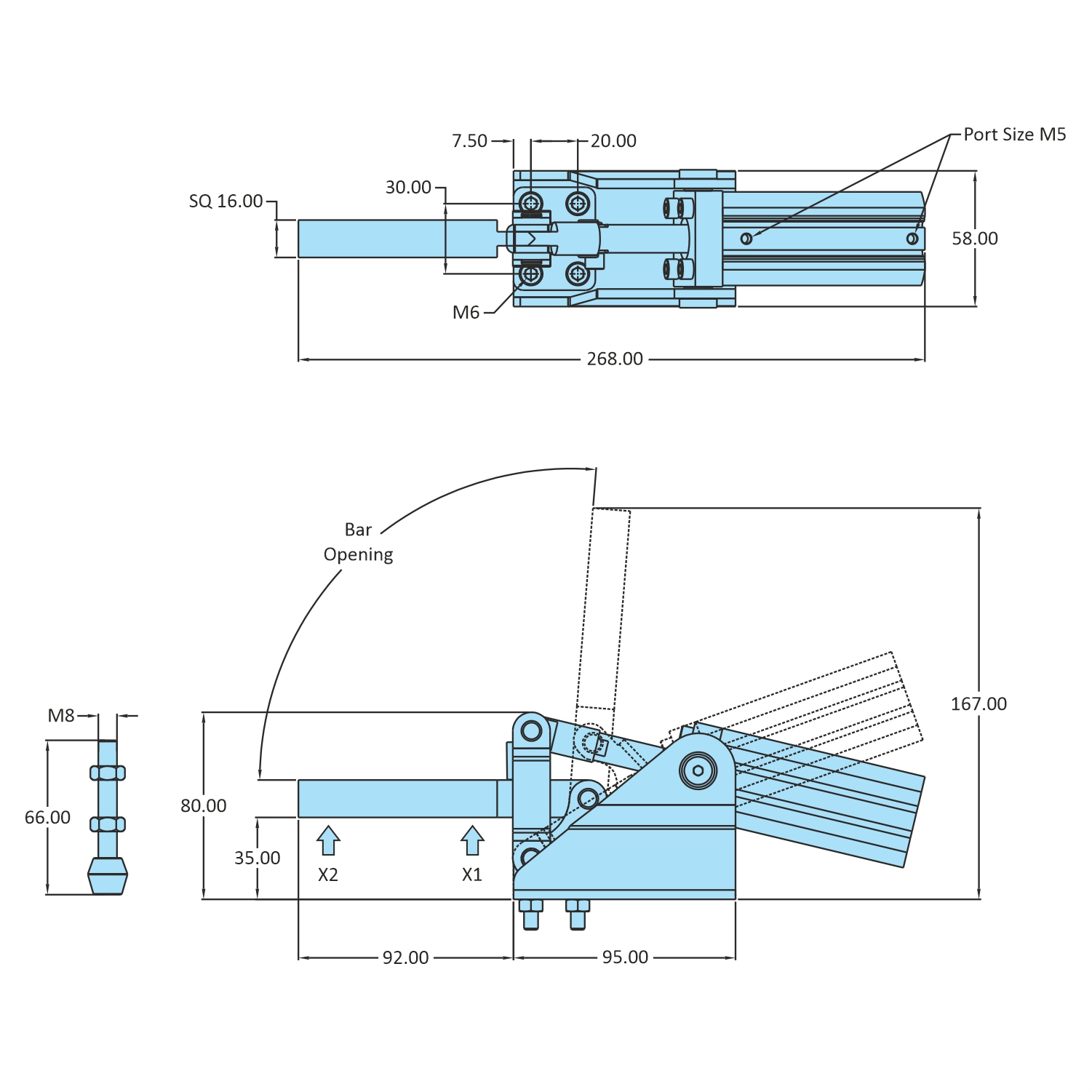

Technical Specifications
| Arm Type: | Solid Arm |
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 25 mm |
| Cylinder Stroke: | 50 mm |
| Material: | Steel |
| Holding Capacity X2: | 1.00 kN |
| Holding Capacity X1: | 2.00 kN |
| Length: | 268.00 mm |
| Width: | 58.00 mm |
| Height: | 80.00 mm |
| Clamp Bar Opening (±3°): | 95° |
| Supplied with Spindle: | RT-865-2N |
| Weight: | 1.200 Kgs |
