AOT-4085-UB

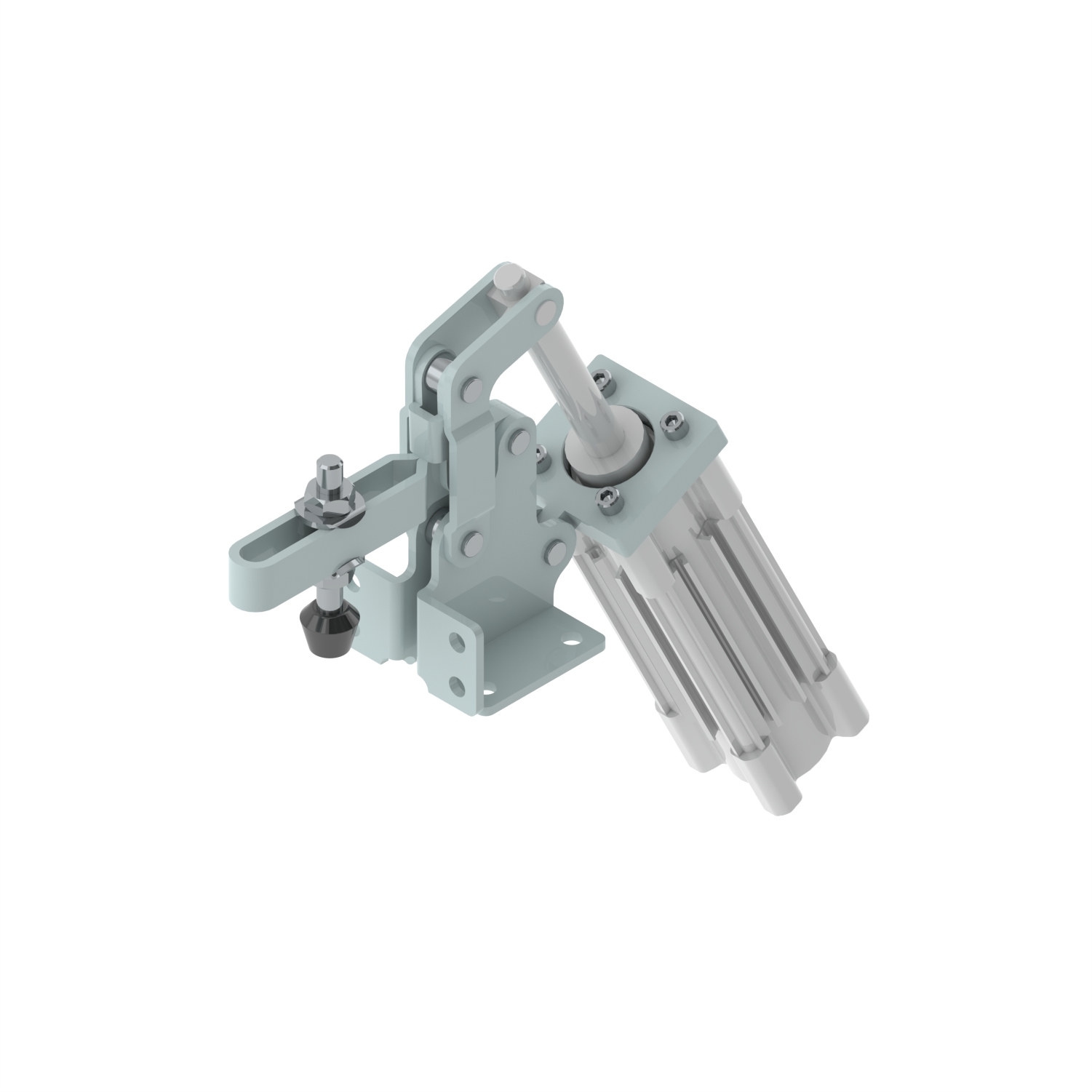

AOT-4085-UB Pneumatic Clamps, Hold Down Action, Right Angle
Product Overview
Pneumatic Clamps, Hold Down Action, Right Angle

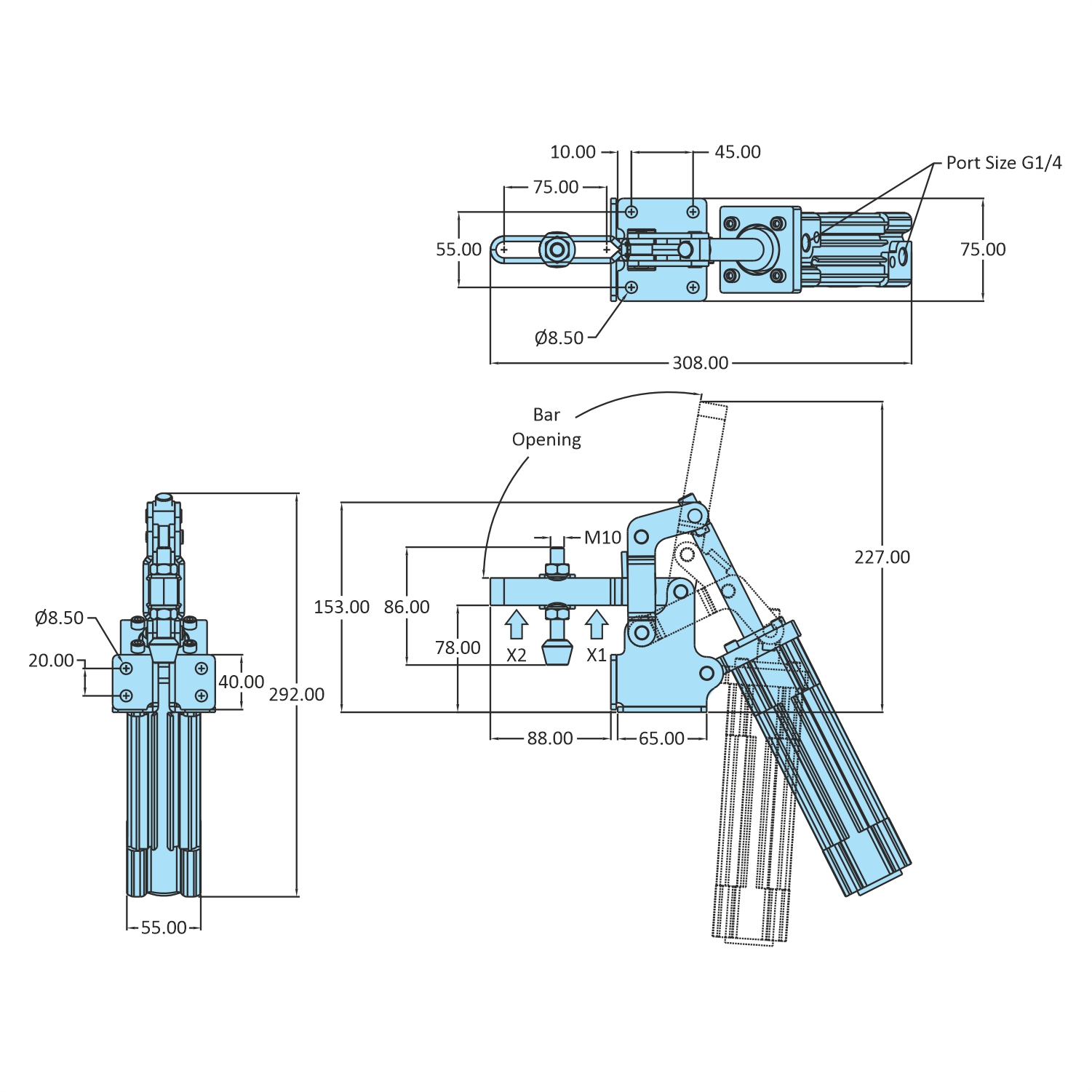

Technical Specifications
| Arm Type: | Adjustable Arm |
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 40 mm |
| Cylinder Stroke: | 80 mm |
| Material: | Steel |
| Holding Capacity X2: | 1.90 kN |
| Holding Capacity X1: | 3.90 kN |
| Length: | 308.00 mm |
| Width: | 75.00 mm |
| Height: | 153.00 mm |
| Clamp Bar Opening (±3°): | 100° |
| Supplied with Spindle: | RT-1085-2N2W |
| Weight: | 2.600 Kgs |
