AOT-4690-SB

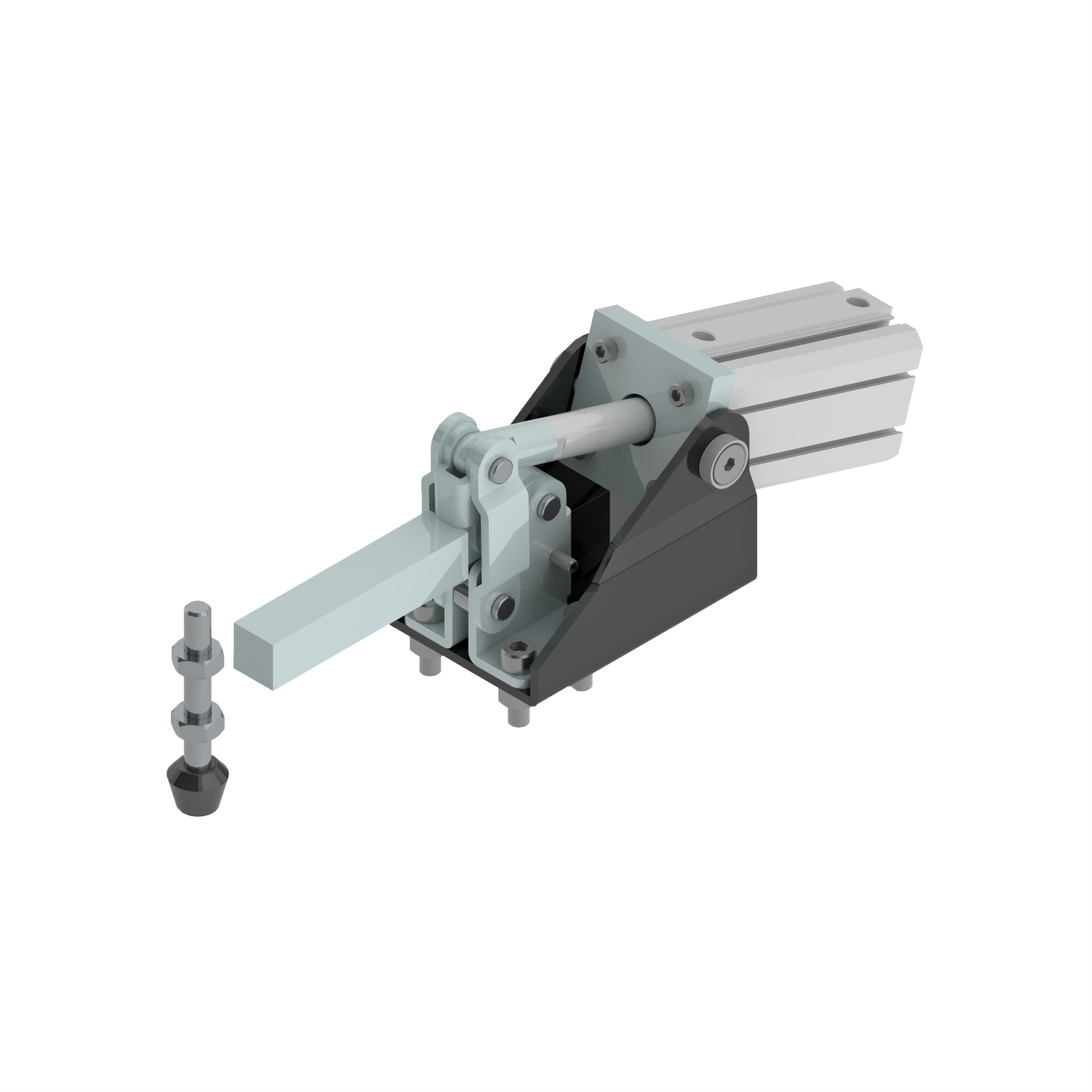

AOT-4690-SB Pneumatic Clamps, Hold Down Action
Product Overview
Pneumatic Clamps, Hold Down Action
Technical Specifications
| Arm Type: | Solid Arm |
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 40 mm |
| Cylinder Stroke: | 60 mm |
| Material: | Steel |
| Holding Capacity X2: | 2.00 kN |
| Holding Capacity X1: | 3.90 kN |
| Length: | 312.50 mm |
| Width: | 78.00 mm |
| Height: | 100.00 mm |
| Clamp Bar Opening (±3°): | 95° |
| Supplied with Spindle: | RT-1085-2N |
| Weight: | 1.900 Kgs |
