AOT-6750-HTC

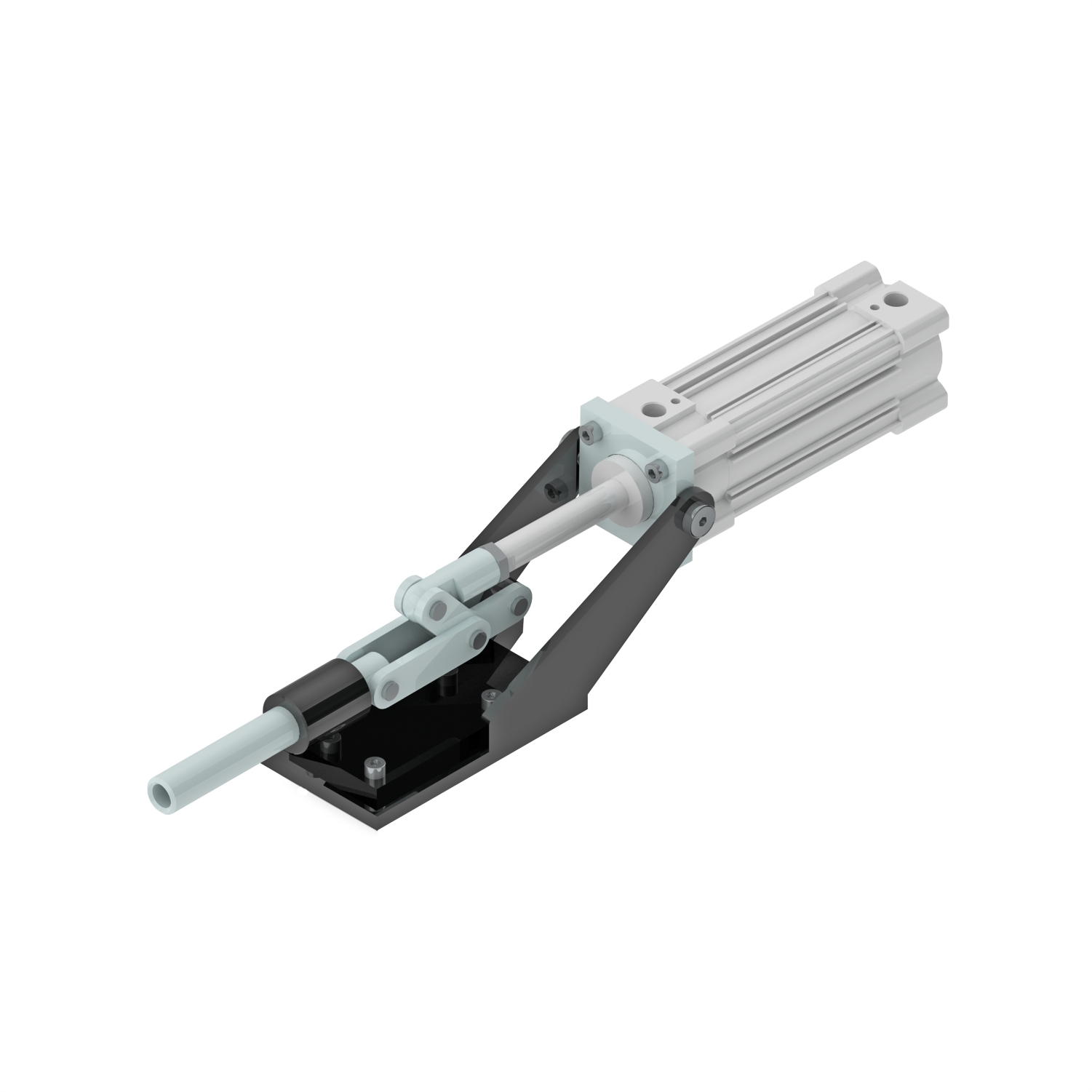

AOT-6750-HTC Pneumatic Clamps, Straight Line Action
Product Overview
Pneumatic Clamps, Straight Line Action

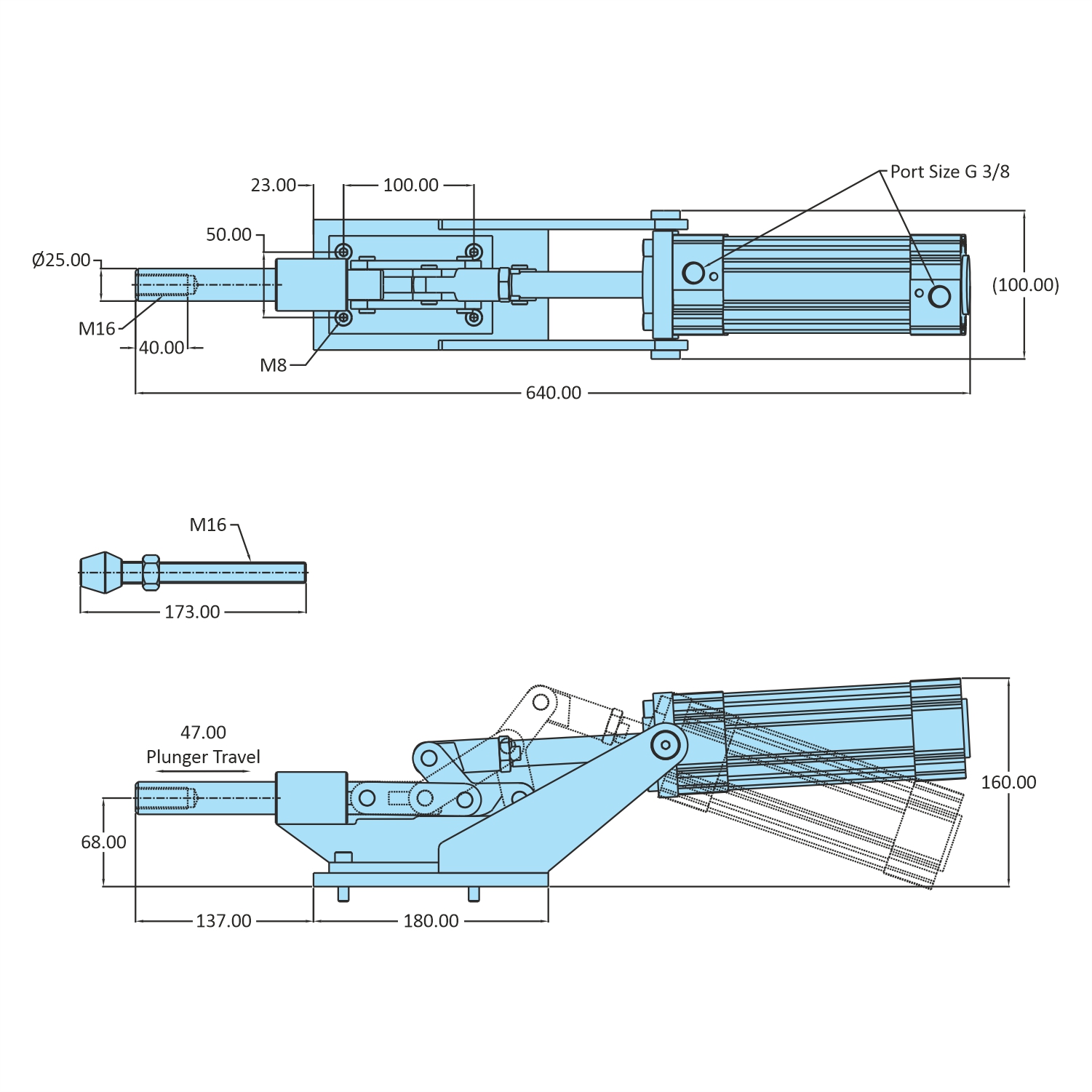

Technical Specifications
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 63 mm |
| Cylinder Stroke: | 100 mm |
| Material: | Steel |
| Holding Capacity: | 25.00 kN |
| Plunger Travel: | 47.00 mm |
| Length: | 640.00 mm |
| Width: | 100.00 mm |
| Height: | 160.00 mm |
| Supplied with Spindle: | RT-16170-N |
| Weight: | 7.800 Kgs |
