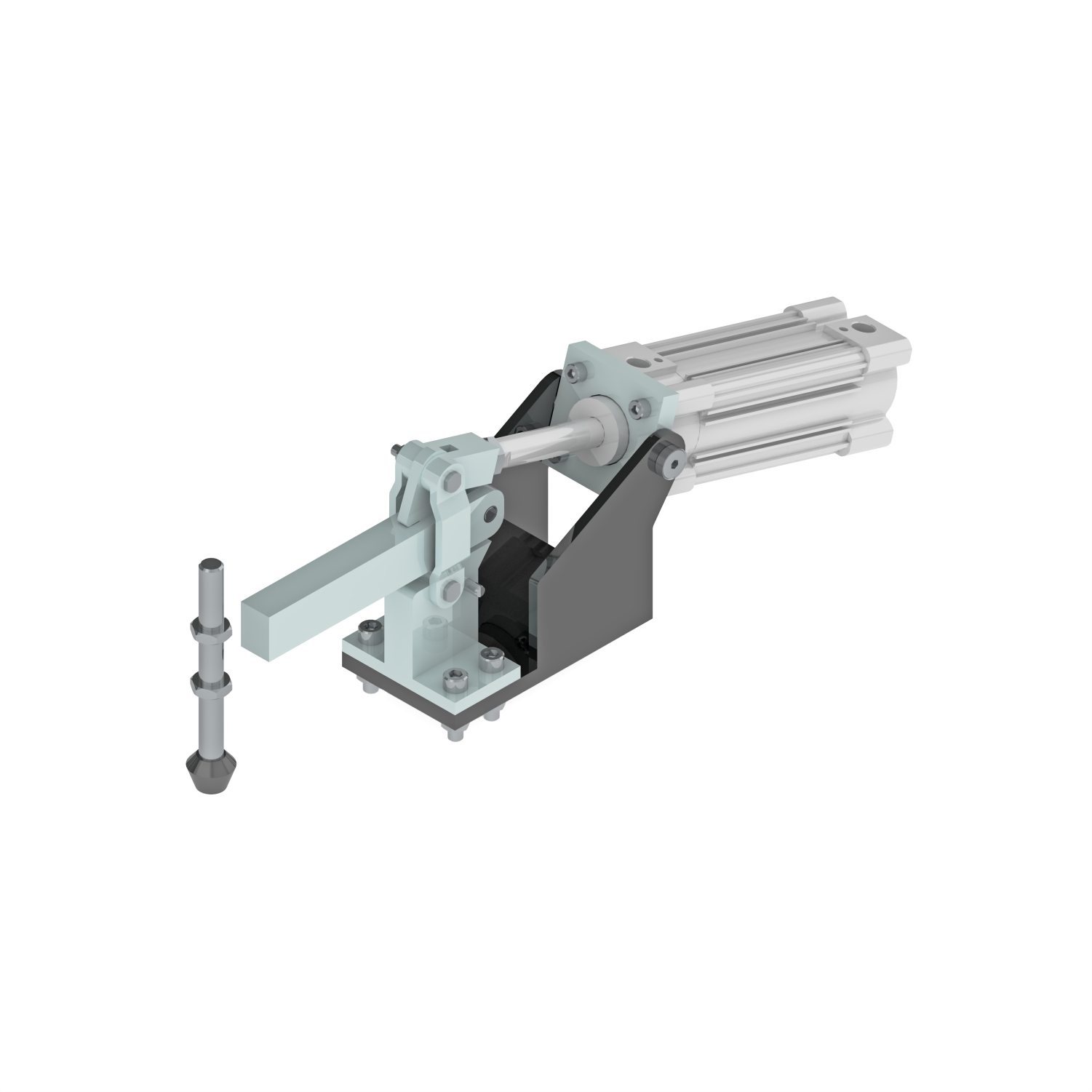

AOT-98125-SB
AOT-98125-SB Pneumatic Clamps, Hold Down Action
Product Overview
Pneumatic Clamps, Hold Down Action
Technical Specifications
| Arm Type: | Solid Arm |
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 63 mm |
| Cylinder Stroke: | 100 mm |
| Material: | Steel |
| Holding Capacity X2: | 4.90 kN |
| Holding Capacity X1: | 9.80 kN |

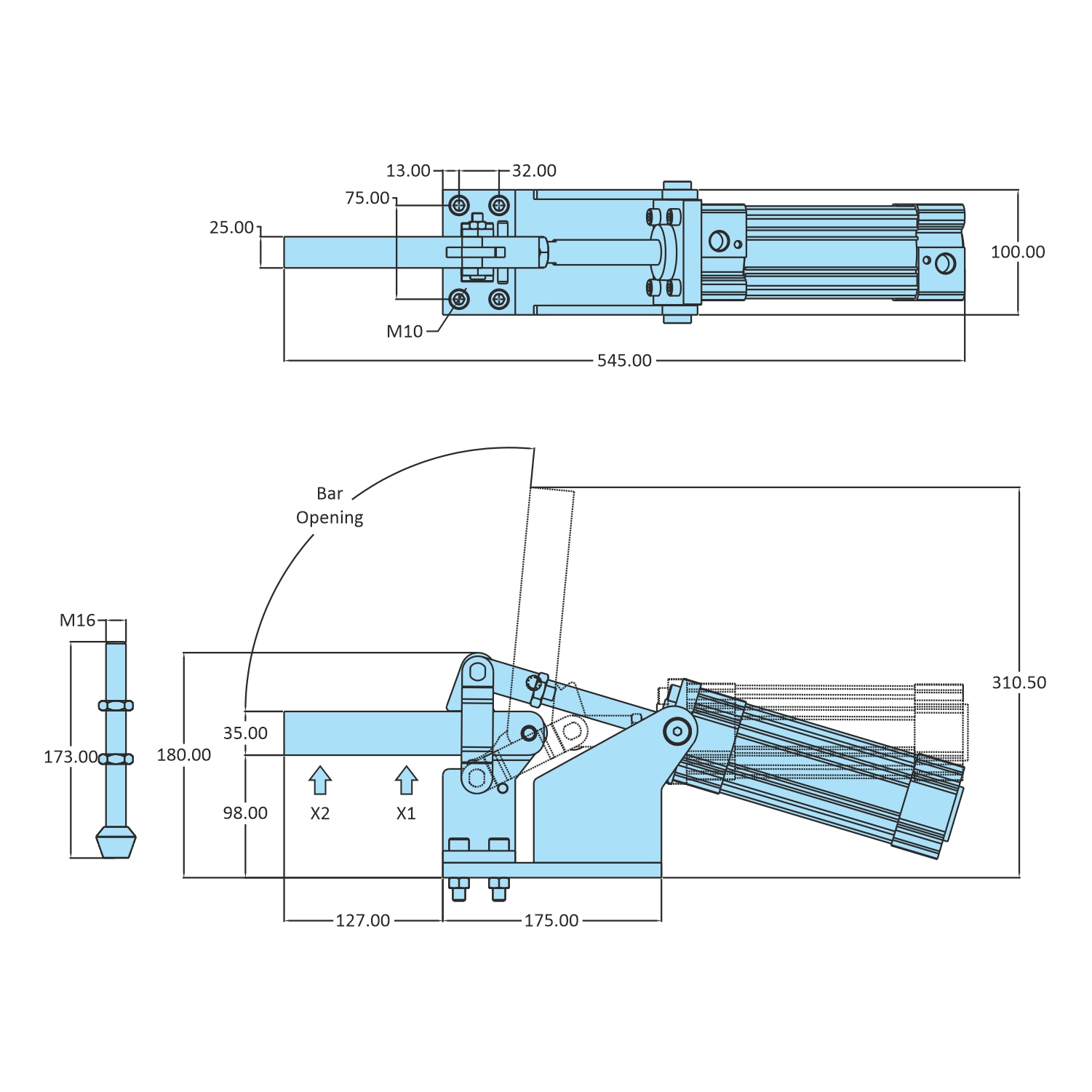

| Length: | 542.50 mm |
| Width: | 100.00 mm |
| Height: | 180.00 mm |
| Clamp Bar Opening (±3°): | 95° |
| Supplied with Spindle: | RT-16170-2N |
| Weight: | 7.400 Kgs |
