AOT-BlI-300

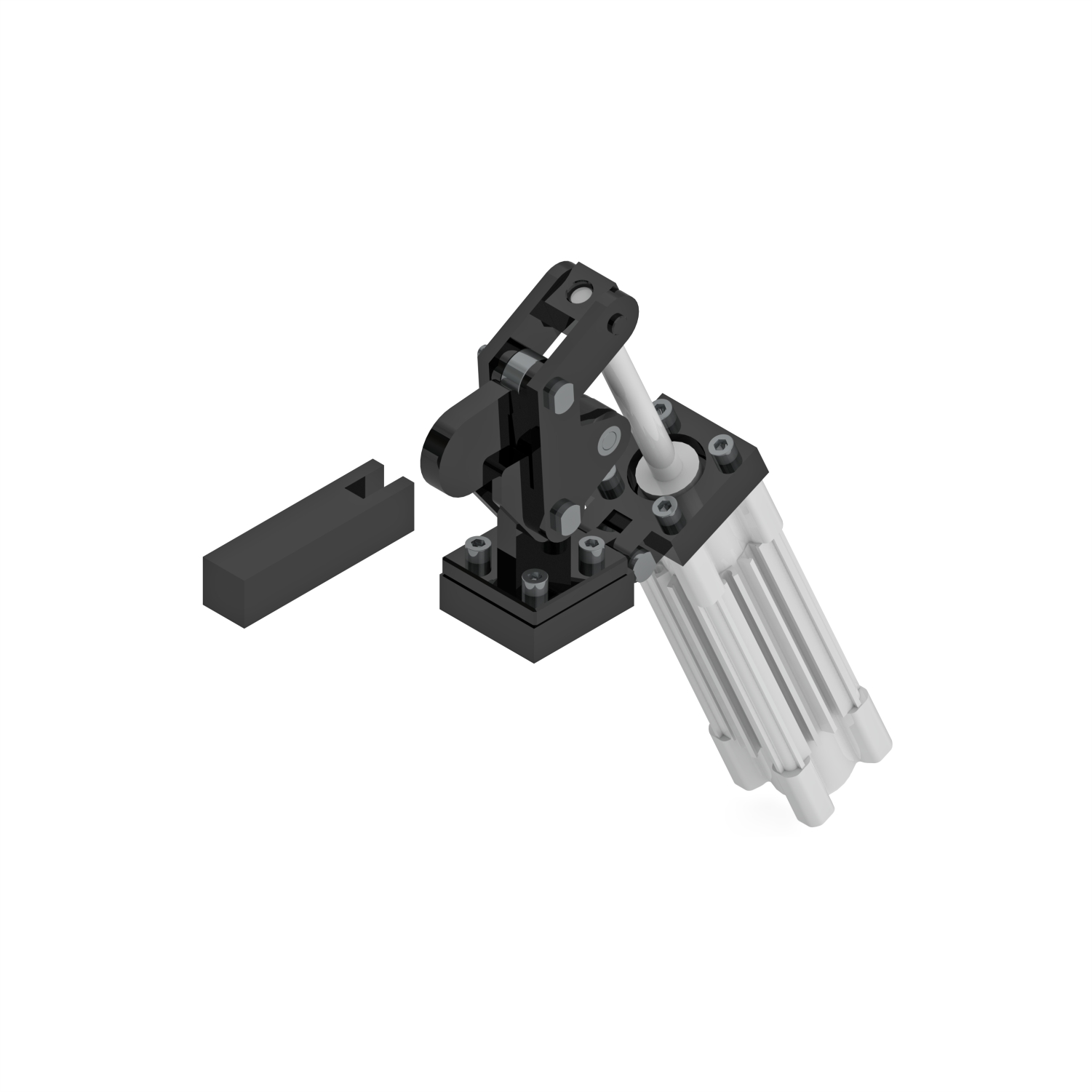

AOT-BlI-300 Pneumatic Clamps, HV Series
Product Overview
Pneumatic Clamps, HV Series

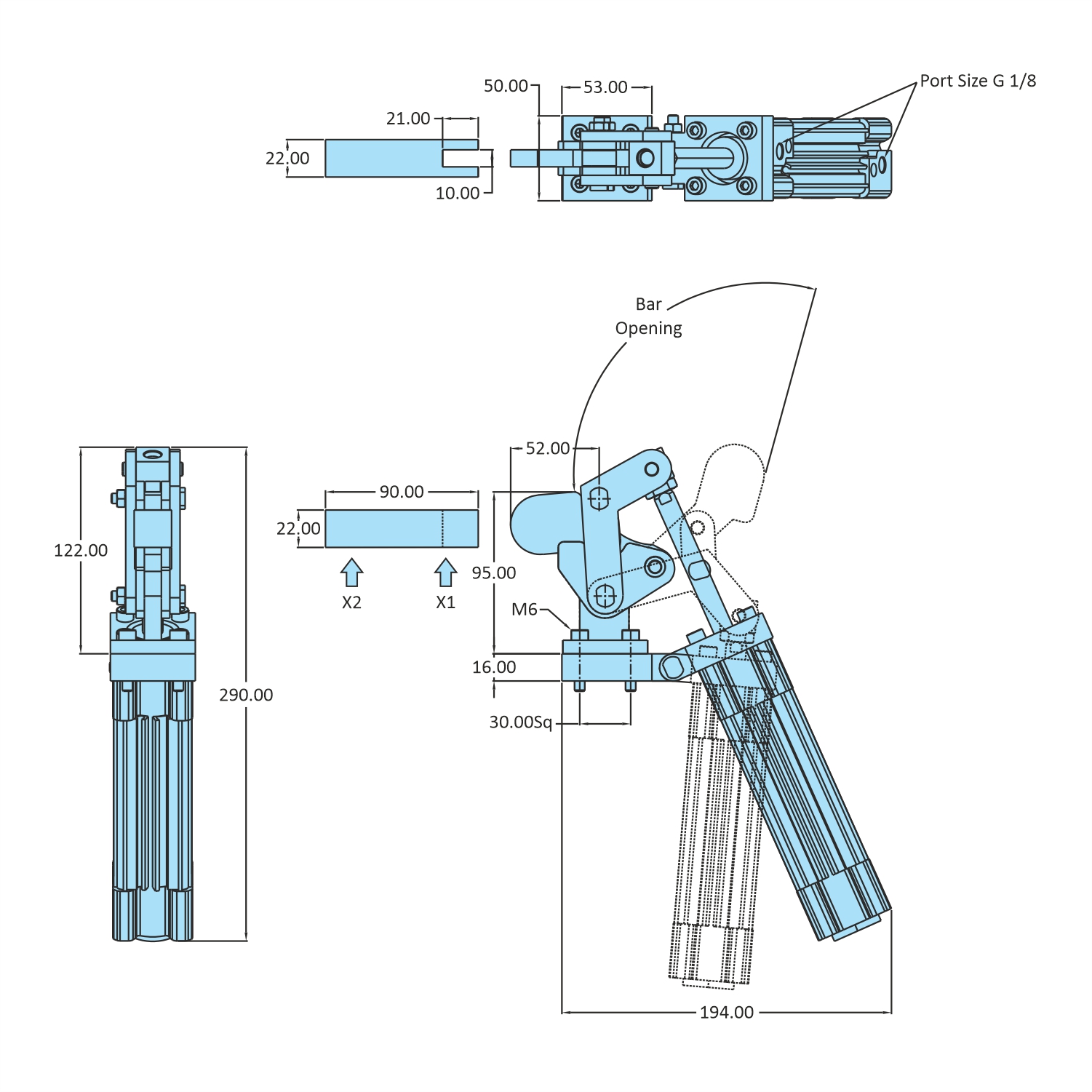

Technical Specifications
| Cylinder Type : | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 32 mm |
| Cylinder Stroke : | 80 mm |
| Material: | Steel |
| Holding Capacity X2: | 1.40 kN |
| Holding Capacity X1: | 2.90 kN |
| Length: | 194.00 mm |
| Width: | 50.00 mm |
| Height: | 290.00 mm |
| Clamp Bar Opening (±3°): | 110° |
| Weight: | 2.900 Kgs |
