AOT-HV-1200-H-TM-TU

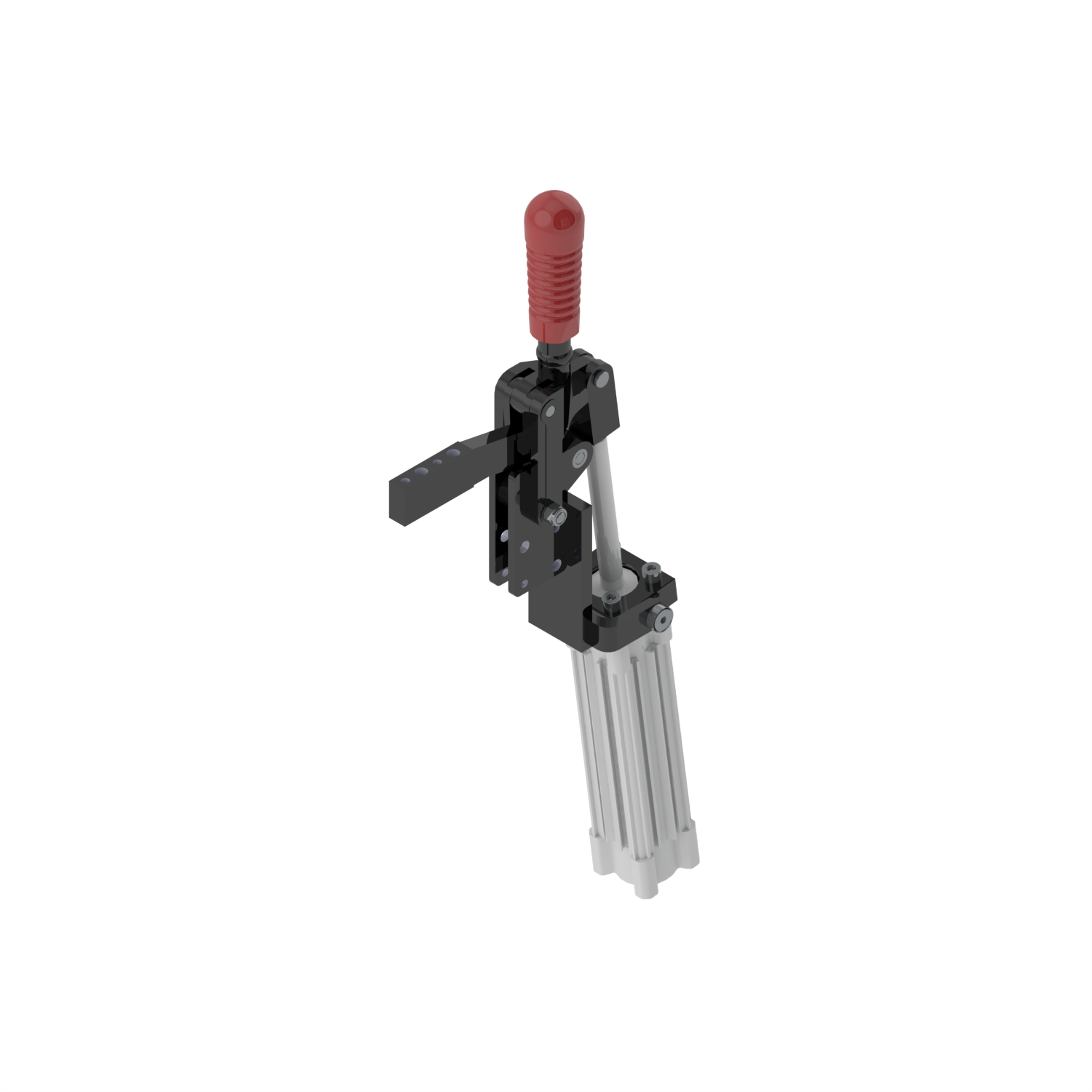

AOT-HV-1200-H-TM-TU Pneumatic Clamps, HV Series, Horizontal Arm
Product Overview
Pneumatic Clamps, HV Series, Horizontal Arm
Technical Specifications
| Cylinder Type : | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 40 mm |
| Cylinder Stroke : | 125 mm |
| Material: | Steel |
| Holding Capacity X2: | 5.90 kN |
| Holding Capacity X1: | 11.80 kN |

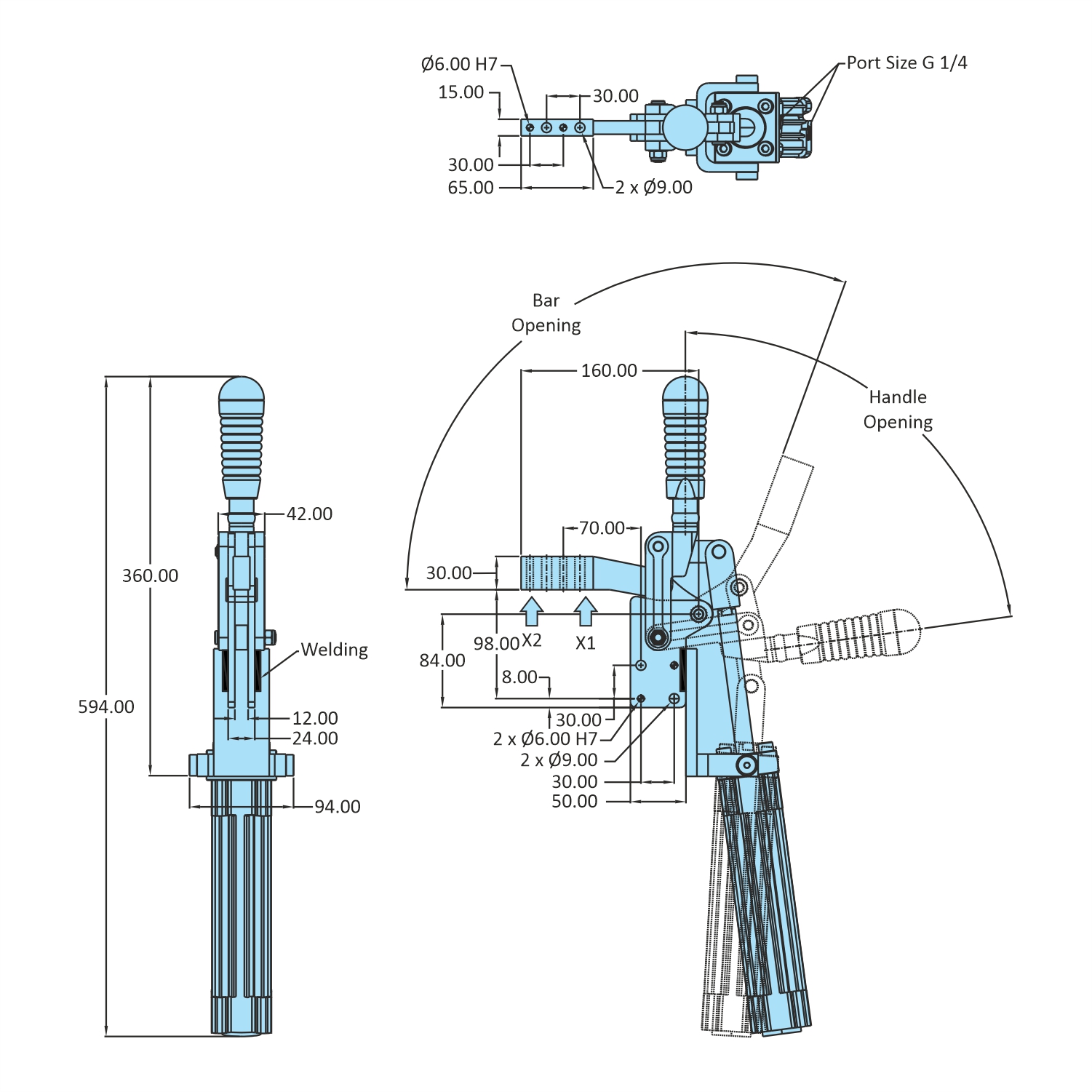

| Length: | 160.00 mm |
| Width: | 94.00 mm |
| Height: | 594.00 mm |
| Handle Opening (±3°): | 82° |
| Clamp Bar Opening (±3°): | 110° |
| Weight: | 6.500 Kgs |
