H-1330-UB-SS

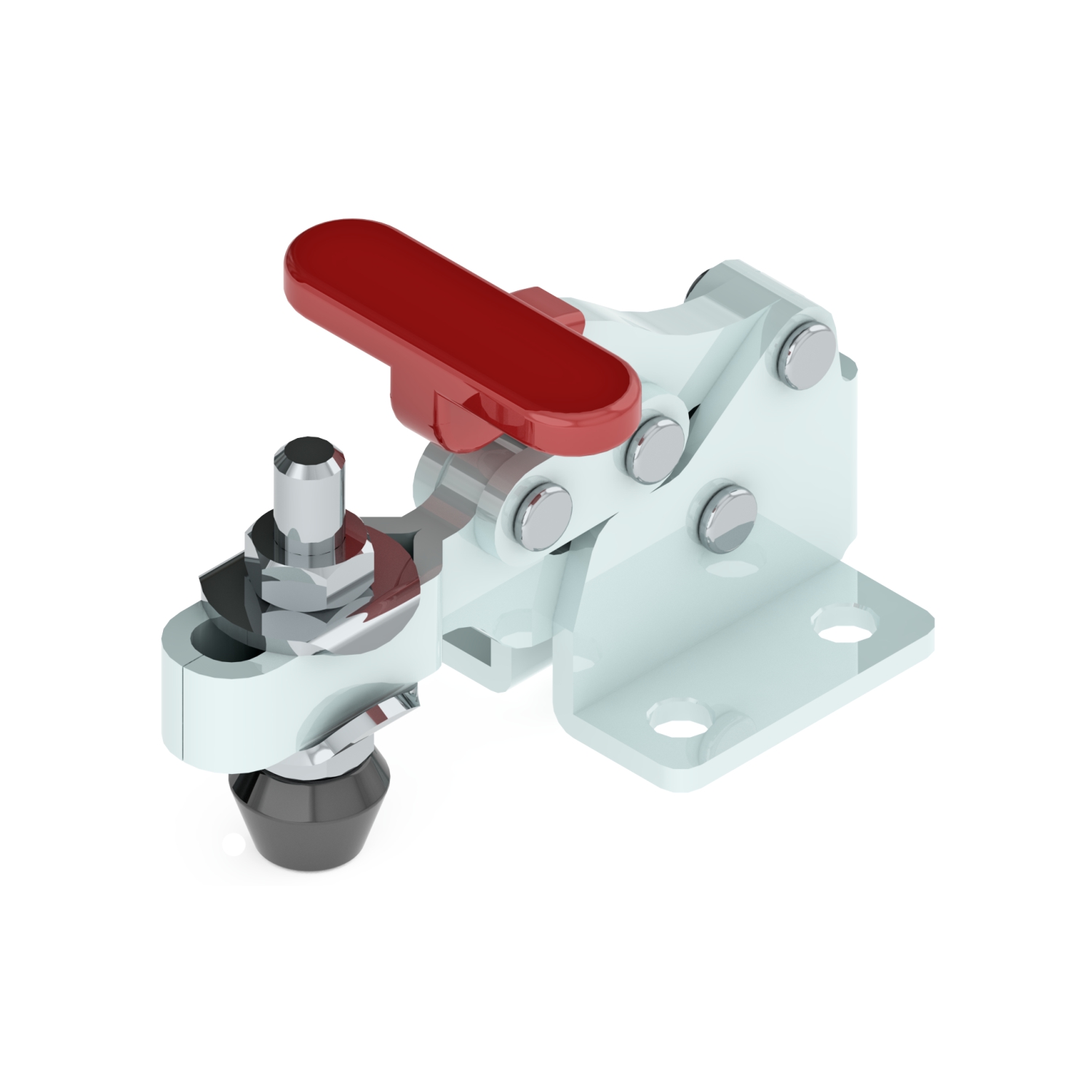

H-1330-UB-SS Horizontal Hold Down Action Flanged Base Front Handle U Bar
Product Overview
H-1330-UB-SS is miniature t handle horizontal hold down action toggle clamp with 0.50 kN holding capacity, featuring a flanged base, adjustable u-bar arm and 90 degree opening angle giving full clearance for loading & unloading of work piece.
Technical Specifications
| Handle Type: | Horizontal |
| Clamping Bar Style: | Adjustable Arm |
| Base Type: | Flanged Base |
| Material: | Stainless Steel-304 |
| Finish: | Electro Polishing |
| Holding Capacity X1: | 0.50 kN |
| Holding Capacity X2: | 0.20 kN |
| Length: | 60.00 mm |
| Width: | 29.00 mm |
| Height: | 37.00 mm |
| Handle Opening: | 175° |
| Clamping Bar Opening: | 95° |
| Supplied With: | RT-533-2N2W-SS |
| Weight: | 0.060 Kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
