H-2123-SF

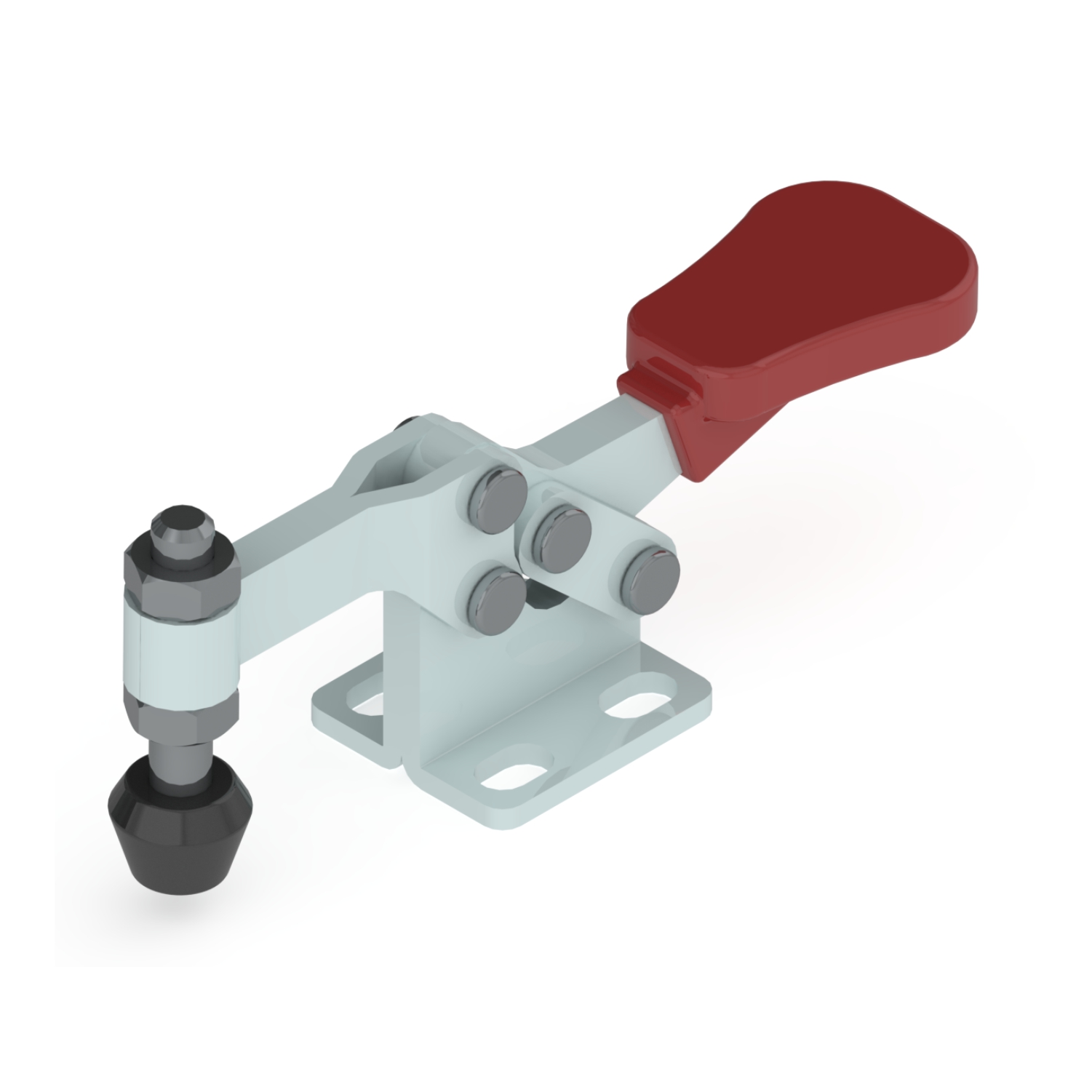

H-2123-SF Horizontal Hold Down Action Miniature Series Flanged Base Fixed Spindle
Product Overview
H-2123-SF is miniature horizontal hold down action toggle clamp with 0.20 kN holding capacity, featuring a flanged base, spindle fixed arm and 90 degree opening angle giving full clearance for loading & unloading of work piece.
Technical Specifications
| Handle Type: | Horizontal |
| Clamping Bar Style: | Spindle Fixed |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity X2: | 0.20 kN |
| Length: | 85.00 mm |
| Width: | 22.00 mm |
| Height: | 30.00 mm |
| Handle Opening: | 86° |
| Clamping Bar Opening: | 85° |
| Supplied With: | RT-539-2N & M5-WSHR |
| Weight: | 0.050 kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
