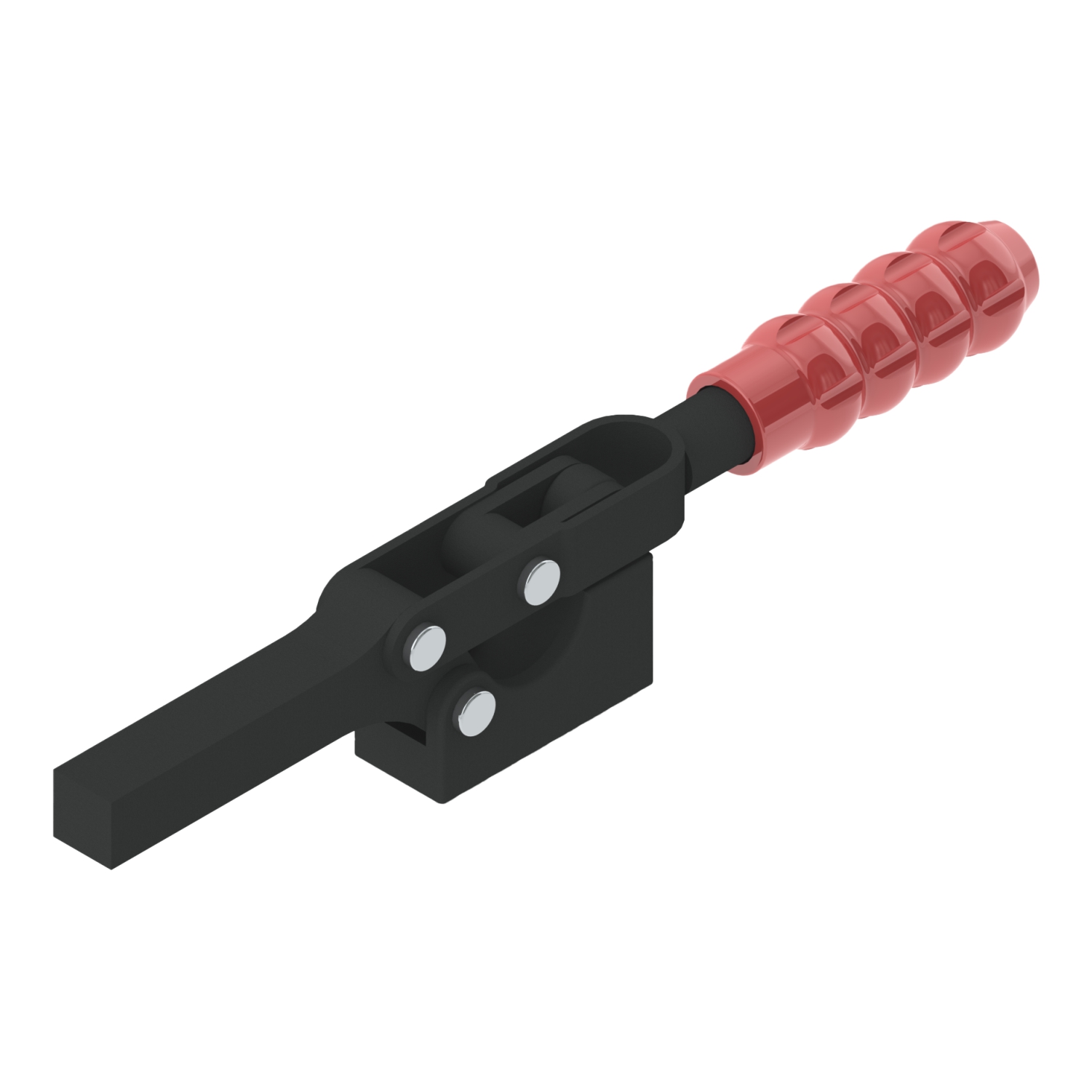

H-5305-B-SB-HV
H-5305-B-SB-HV Horizontal Hold Down Action Heavy Duty Series
Product Overview
H-5305-B-SB-HV is heavy duty horizontal hold down action toggle clamp with 2.50 kN holding capacity, featuring a weldable base, solid arm and 90 degree opening angle giving full clearance for loading & unloading of work piece.

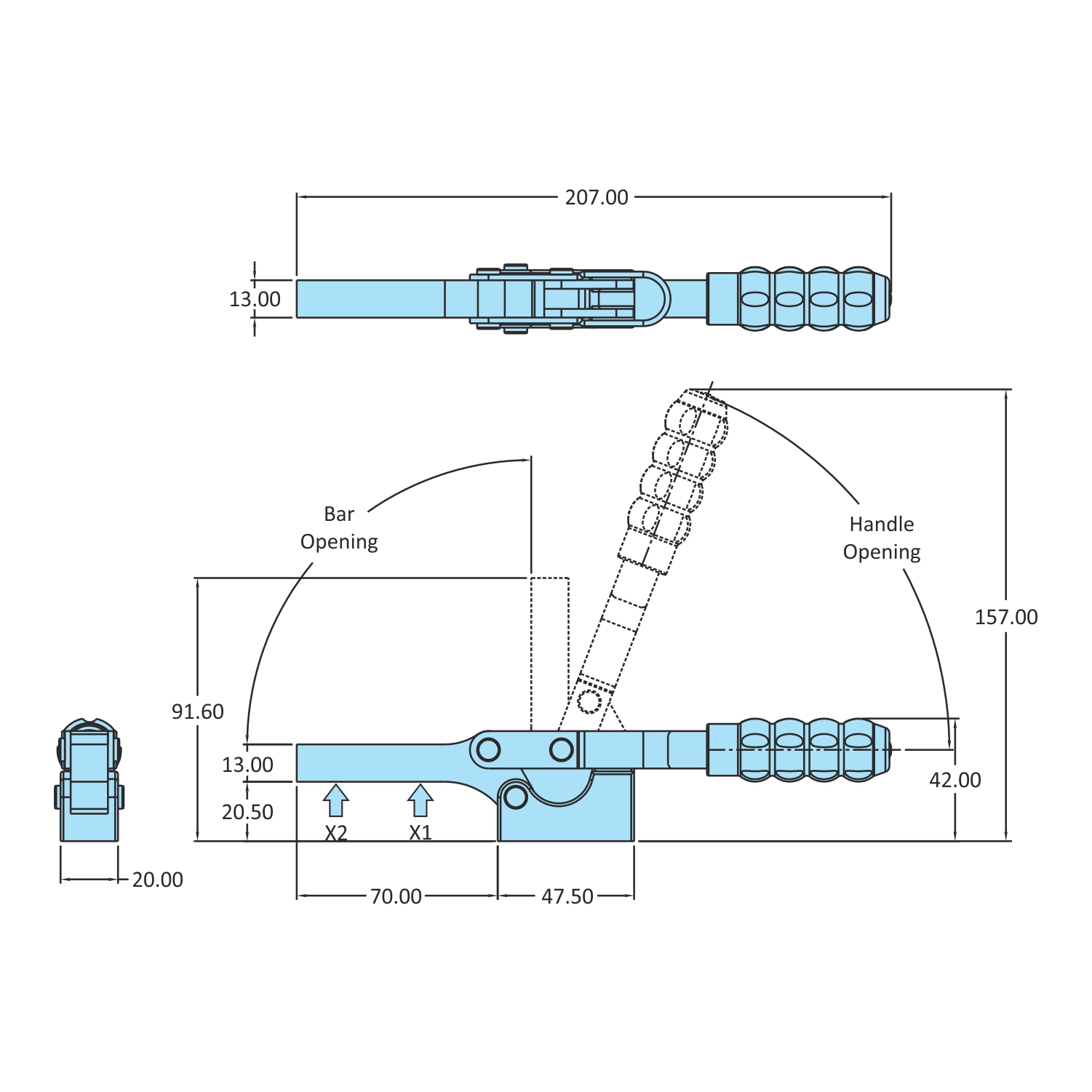

Technical Specifications
| Handle Type: | Horizontal |
| Clamping Bar Style: | Solid Arm |
| Base Type: | Weldable Base |
| Material: | Steel |
| Finish: | Black ED Coating |
| Holding Capacity X1: | 1.00 kN |
| Holding Capacity X2: | 0.50 kN |
| Length: | 207.00mm |
| Width: | 20.00mm |
| Height: | 42.00mm |
| Handle Opening: | 69° |
| Clamping Bar Opening: | 90° |
| Weight: | 0.370 Kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
