HTC-3025
HTC-3025 Straight Line Action,Forged Base
Product Overview
HTC-3025 is medium/heavy duty straight line action toggle clamp with 10.80 kN holding capacity, featuring a push/pull plunger shaft, flanged base and 183 degree handle opening angle giving full clearance for loading & unloading of work piece.

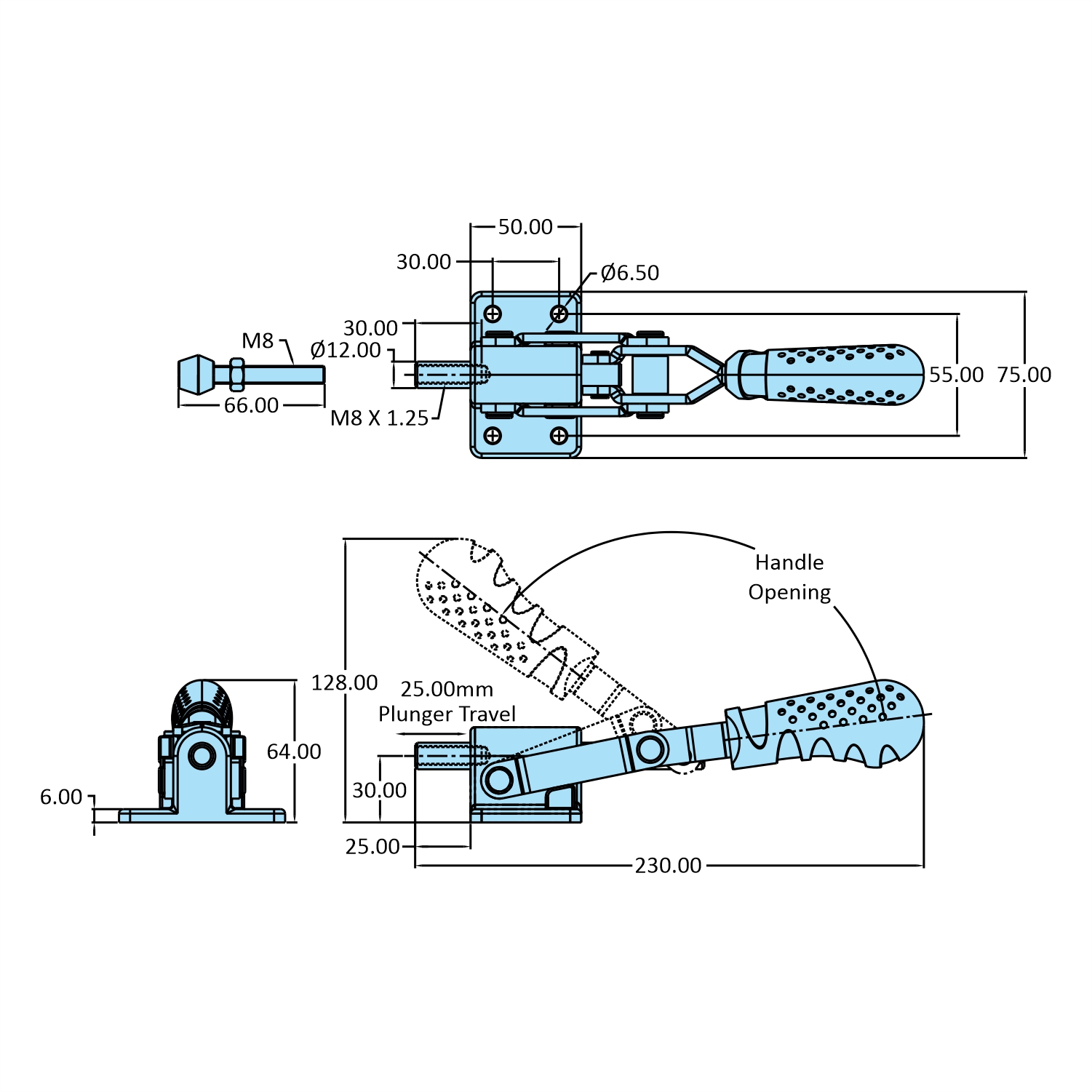

Technical Specifications
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Zinc Plated/Powder Coated |
| Holding Capacity: | 10.80 kN |
| Plunger Travel: | 25.00 mm |
| Length: | 230.00 mm |
| Width: | 75.00 mm |
| Height: | 64.00 mm |
| Handle Opening: | 135° |
| Supplied With: | RT-865-1N |
| Weight: | 0.900 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
