HTC-600-FM
HTC-600-FM Straight Line Action,Front Mounting
Product Overview

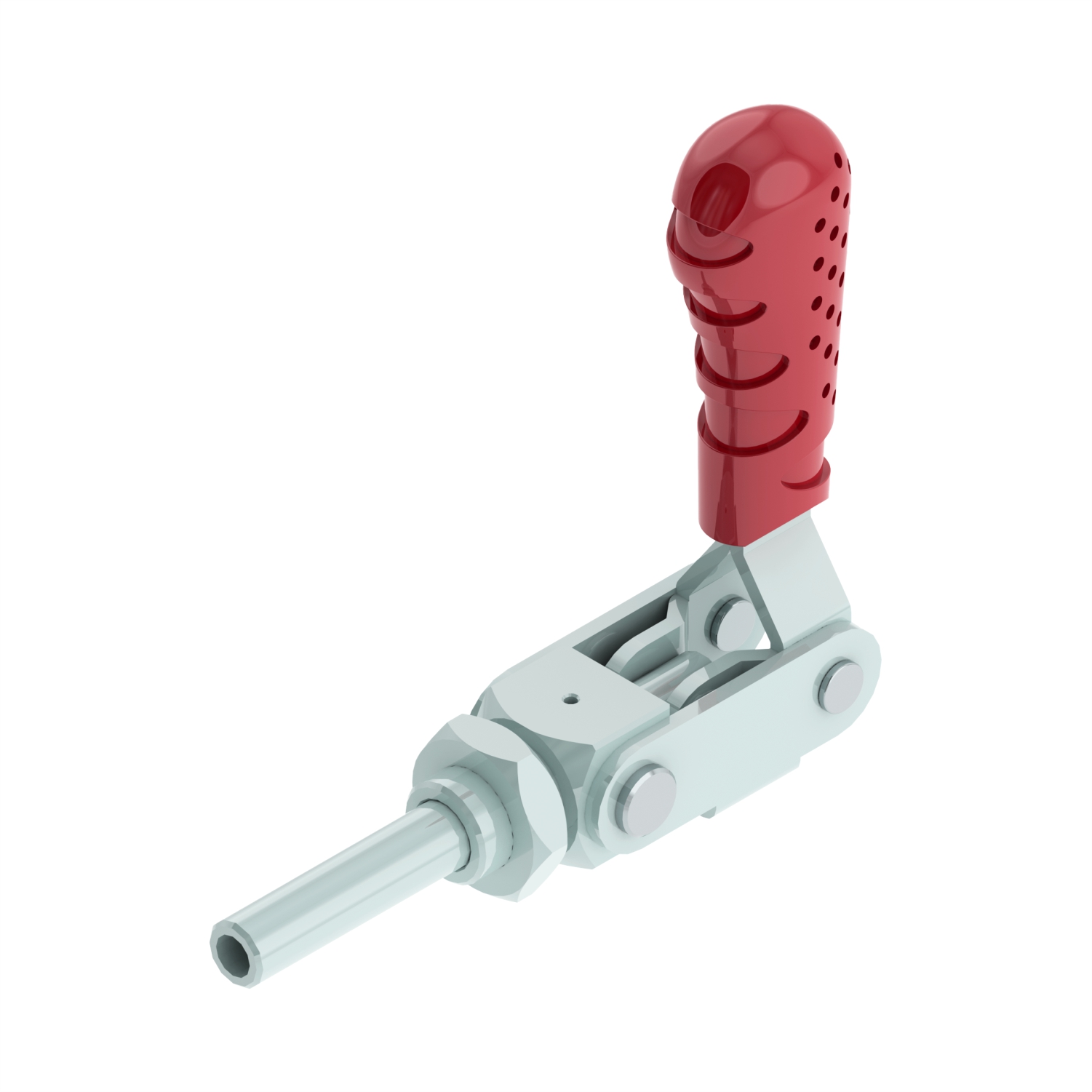

HTC-600-FM is medium duty straight line action toggle clamp with 3.40 kN holding capacity, featuring a push/pull plunger shaft, front mounting and 183 degree handle opening angle giving full clearance for loading & unloading of work piece.

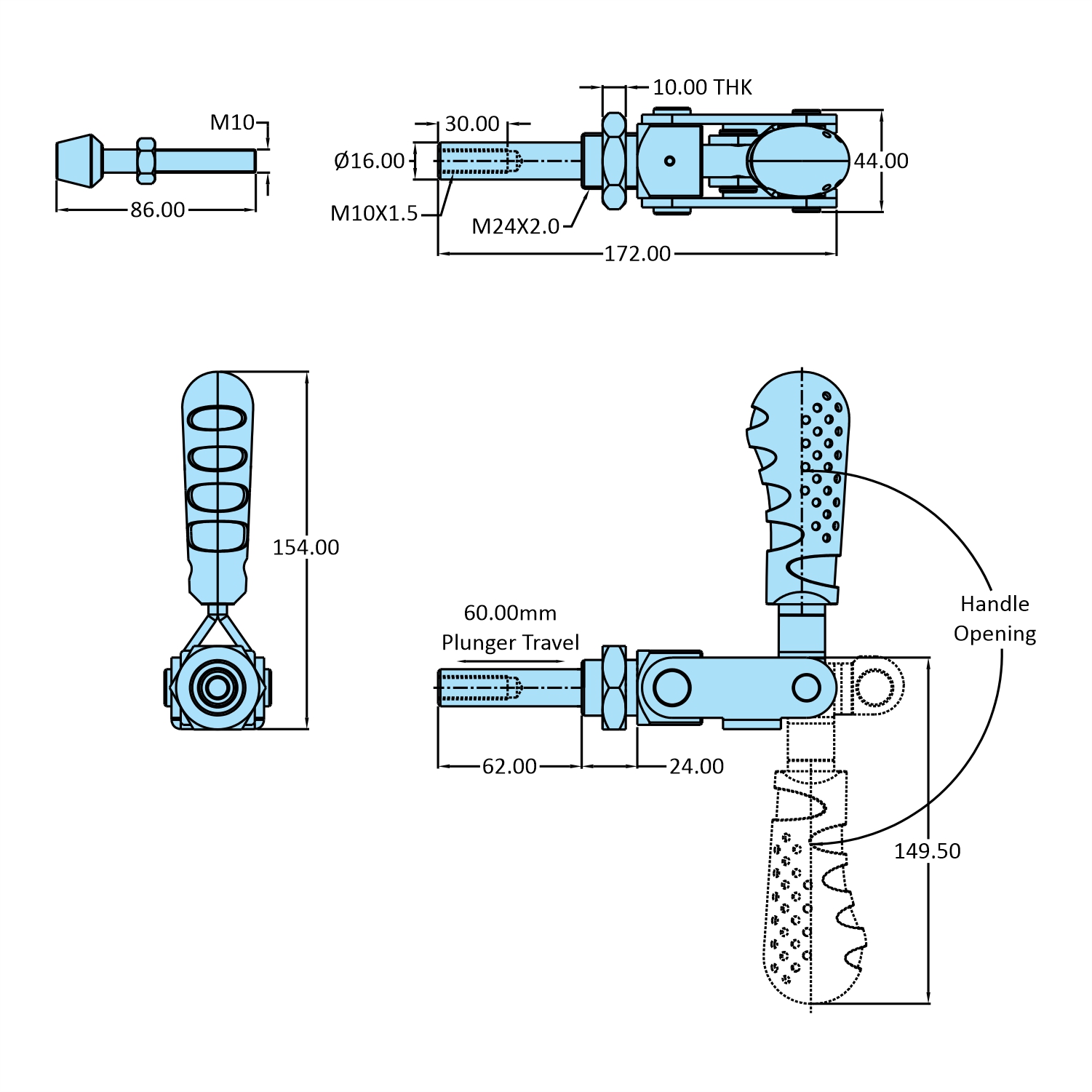

Technical Specifications
| Base Type: | Front Mounting |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity: | 1.50 kN |
| Plunger Travel: | 39.00 mm |
| Length: | 172.00 mm |
| Width: | 44.00 mm |
| Height: | 154.00 mm |
| Handle Opening: | 180° |
| Supplied With: | RT-1085-1N |
| Weight: | 0.910 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
