HTC-650-PS
HTC-650-PS Straight Line Action,Heavy Duty
Product Overview

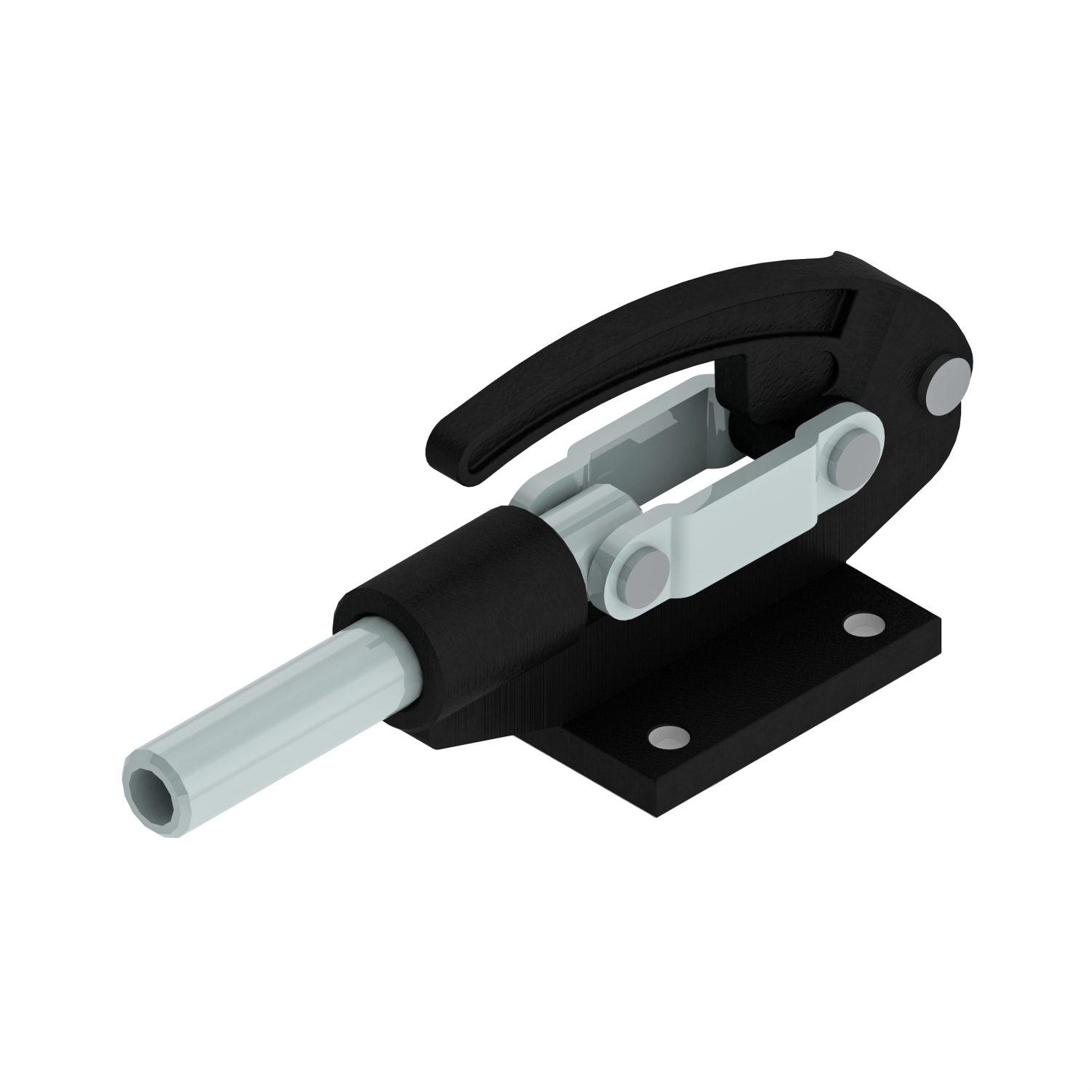

HTC-650-PS is heavy duty-package size straight line action toggle clamp with 34.30 kN holding capacity, featuring a push/pull plunger shaft, flanged base and 183 degree handle opening angle giving full clearance for loading & unloading of work piece.

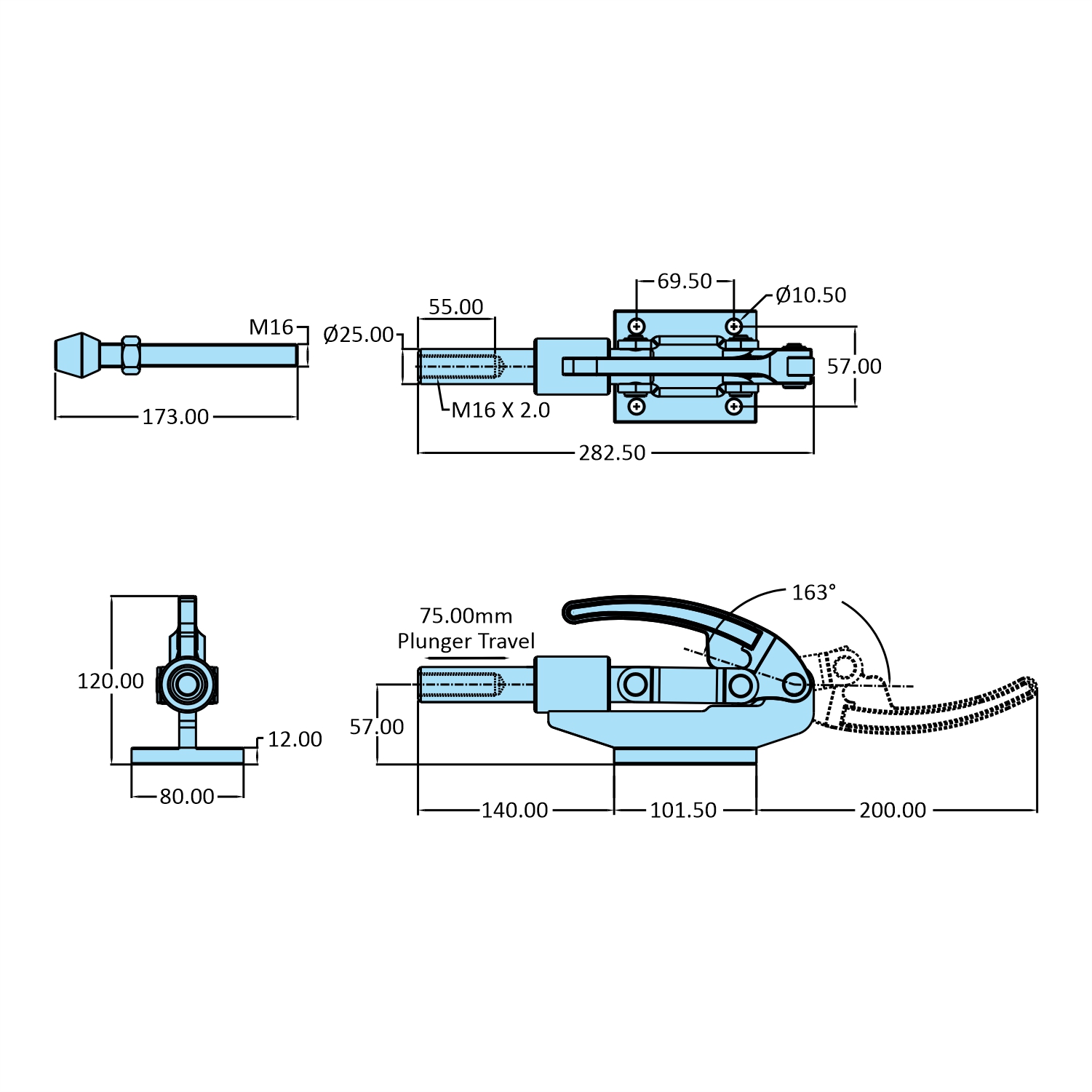

Technical Specifications
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Black Ed Coated |
| Holding Capacity: | 34.30 kN |
| Plunger Travel: | 75.00 mm |
| Length: | 282.50 mm |
| Width: | 80.00 mm |
| Height: | 120.00 mm |
| Handle Opening: | 163° |
| Supplied With: | RT-16170-1N |
| Weight: | 2.500 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
