HV-1200-1A
Product Overview

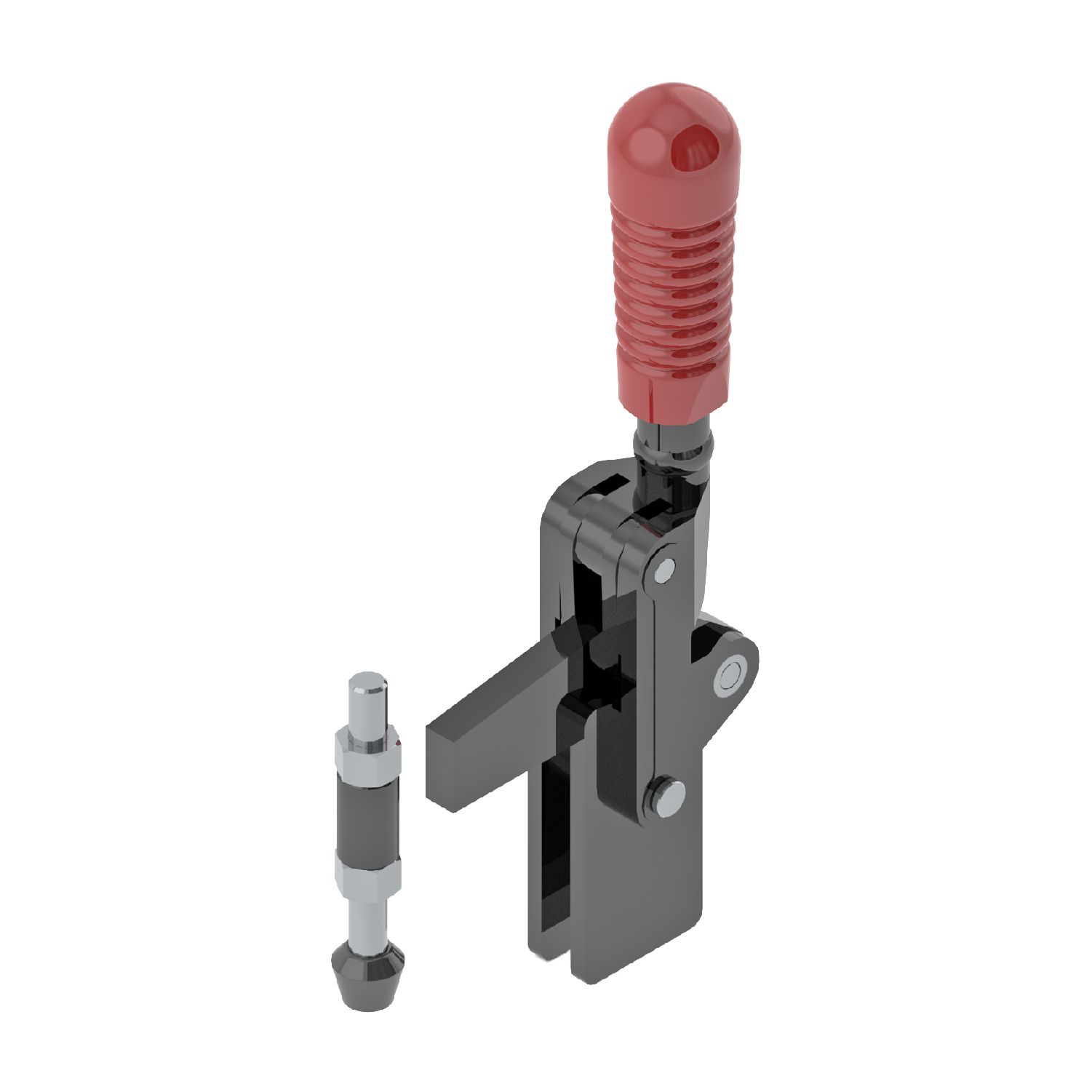

HV-1200-1A Automotive Heavy Duty Vertical Clamps is an Automotive Clamp designed for heavy-duty applications, offering a holding capacity of 11.80 kN. These clamps are ideally suited for automotive manufacturing, assembly, and welding operations that demand high clamping forces and long service life. The clamp features a unique design that provides designers with complete flexibility in both layout and clamping force. The clamping arm and handle supplied with the clamp can be welded at the desired angle to meet specific workpiece requirements. The versatility of Steel-Smith clamps allows handle positioning up to 130 degree maximum angular positioning arc through a 360 degree orbital arc, while the clamping arm offers a 195 degreemaximum angular positioning arc, ensuring adaptability across a wide range of applications.

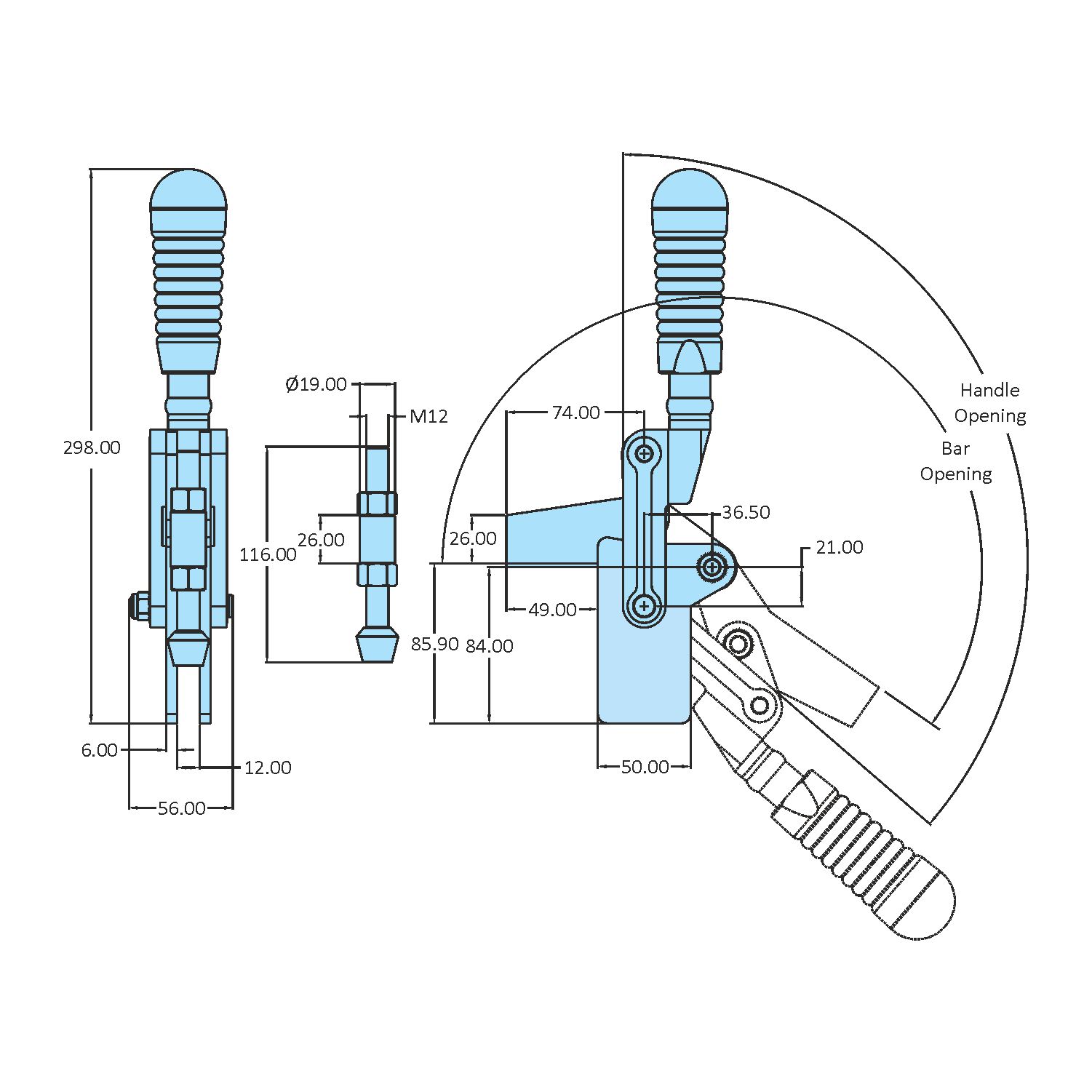

Technical Specifications
| Arm Type: | Solid Arm |
| Base Type: | Straight Base |
| Material: | Steel |
| Finish: | Black ED* Coating |
| Handle Opening (± 3°): | 131° |
| Clamp Bar Opening (± 3°): | 207° |
| Holding Capacity: | 11.80 kN |
| Spindle Assembly: | RT-12155-2N |
| Length: | 110.5 mm |
| Width: | 56.00 mm |
| Height: | 298.00 mm |
| Weight: | 1.960 Kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Automation and Robotics.
