HV-700-V
Product Overview

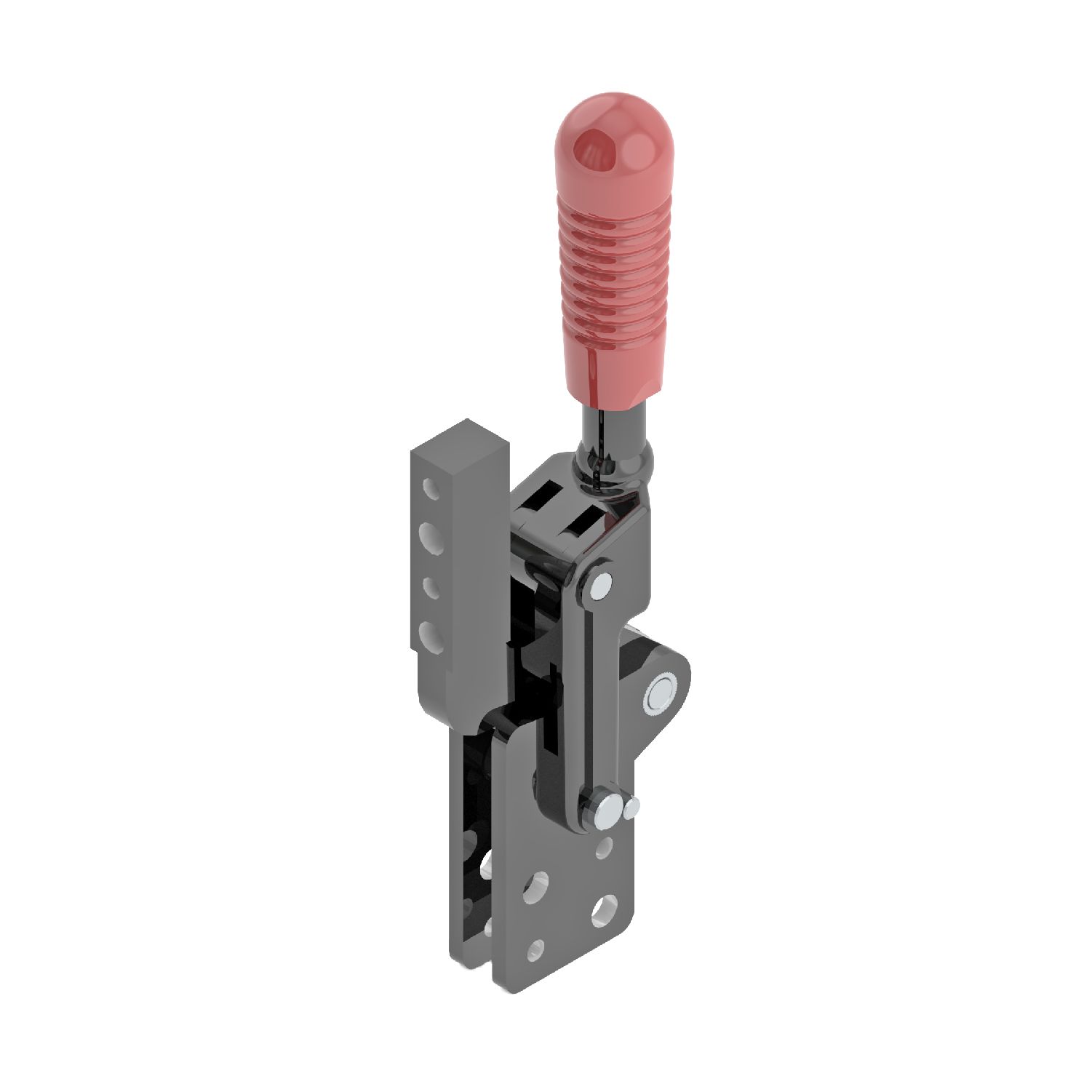

HV-700-V is a heavy-duty automotive clamp with a holding capacity of 6.90 kN, designed for demanding manufacturing, assembly, and welding applications. It ensures high clamping force and long service life. The clamping arm features a unique dowel hole and mounting hole design, allowing flexible layout and precise force adjustment. Multiple mounting and adjustment options simplify installation. The handle allows up to 78 degree angular positioning through a 360 degree orbital arc, while the clamping arm offers a 100 degree positioning arc for wide application versatility.

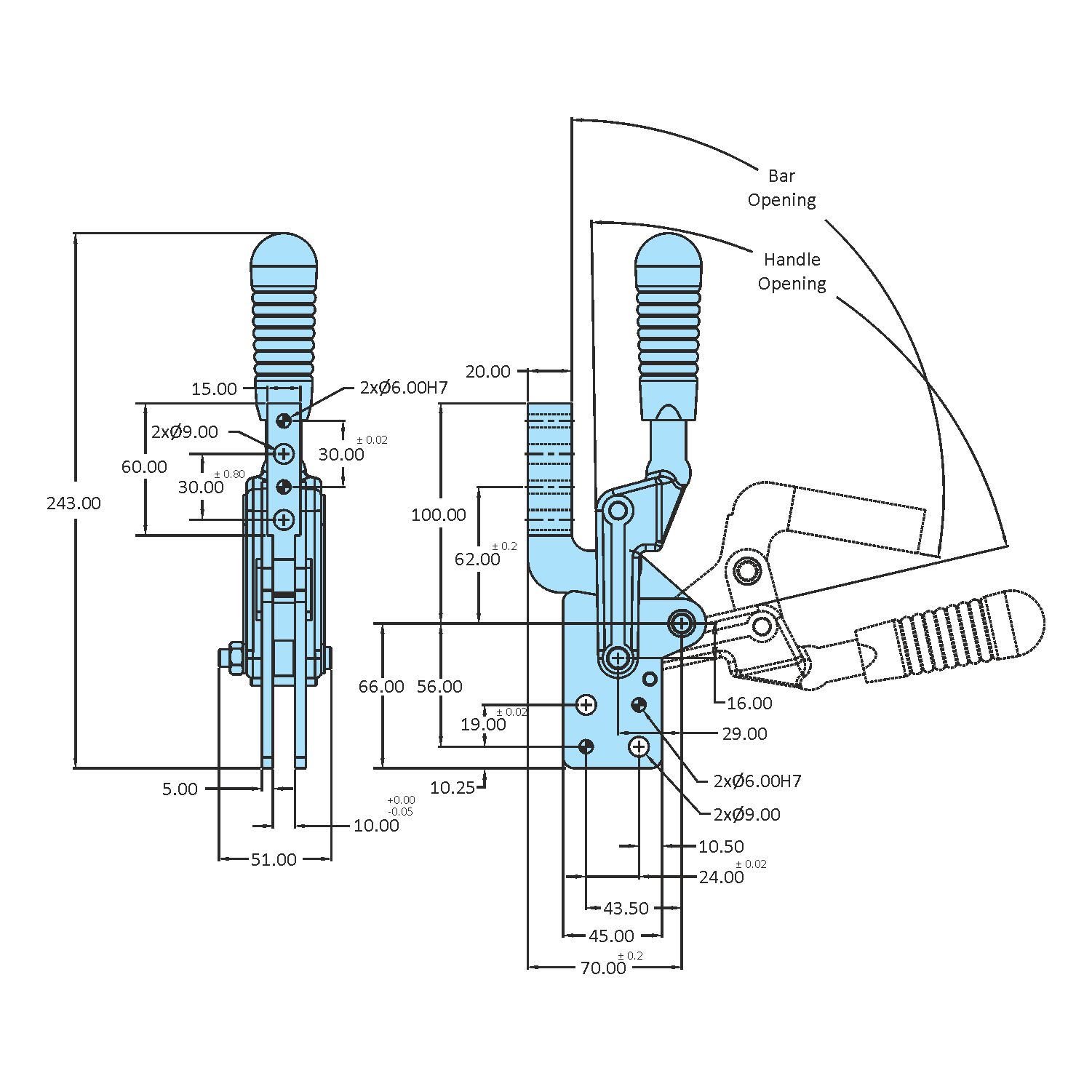

Technical Specifications
| Arm Type: | Solid Vertical Arm |
| Base Type: | Straight Base |
| Material: | Steel |
| Finish: | Black ED* Coating |
| Handle Opening (± 3°): | 78° |
| Clamp Bar Opening (± 3°): | 100° |
| Holding Capacity: | 6.90 kN |
| Length: | 70.00 mm |
| Width: | 51.00 mm |
| Height: | 243.00 mm |
| Weight: | 1.180 Kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Automation and Robotics.
