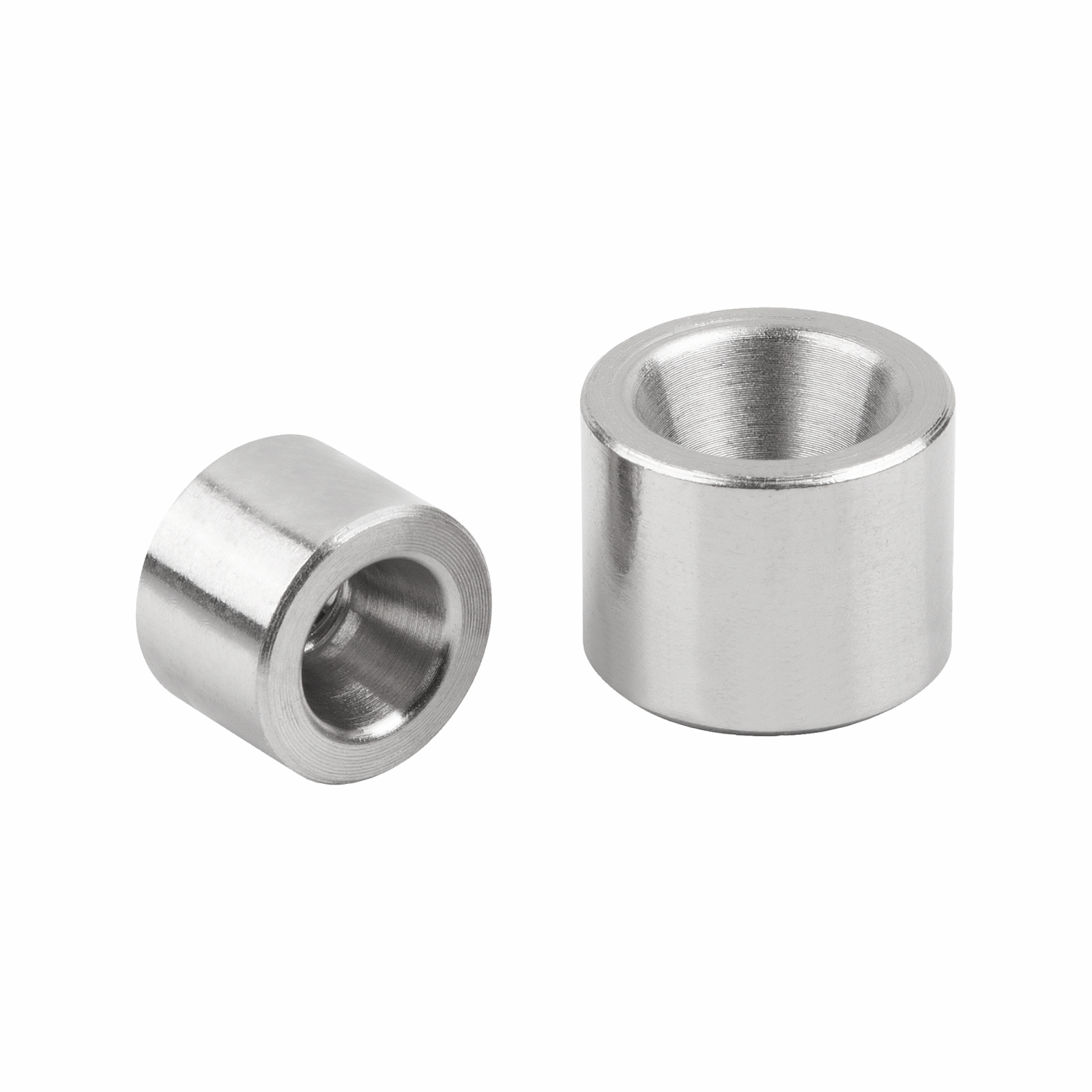

K1835.005

Tapered bushes used with indexing plungers serve as precise locating guides in mechanical assemblies. The taper helps the plunger tip align smoothly into the bush opening, reducing wear and ensuring accurate, repeatable positioning. These bushes are typically hardened for durability and used where components must be frequently and quickly indexed. The tapered geometry compensates for minor misalignment and enables reliable engagement even under vibration or variable loading. By stabilizing the plunger’s entry path, they improve system accuracy, longevity, and operational safety in automated, machining, and fixture setups.

Applications
• Machine tool indexing mechanisms
• Welding and assembly fixtures
• Automated positioning systems
• Rotary and linear indexing tables
