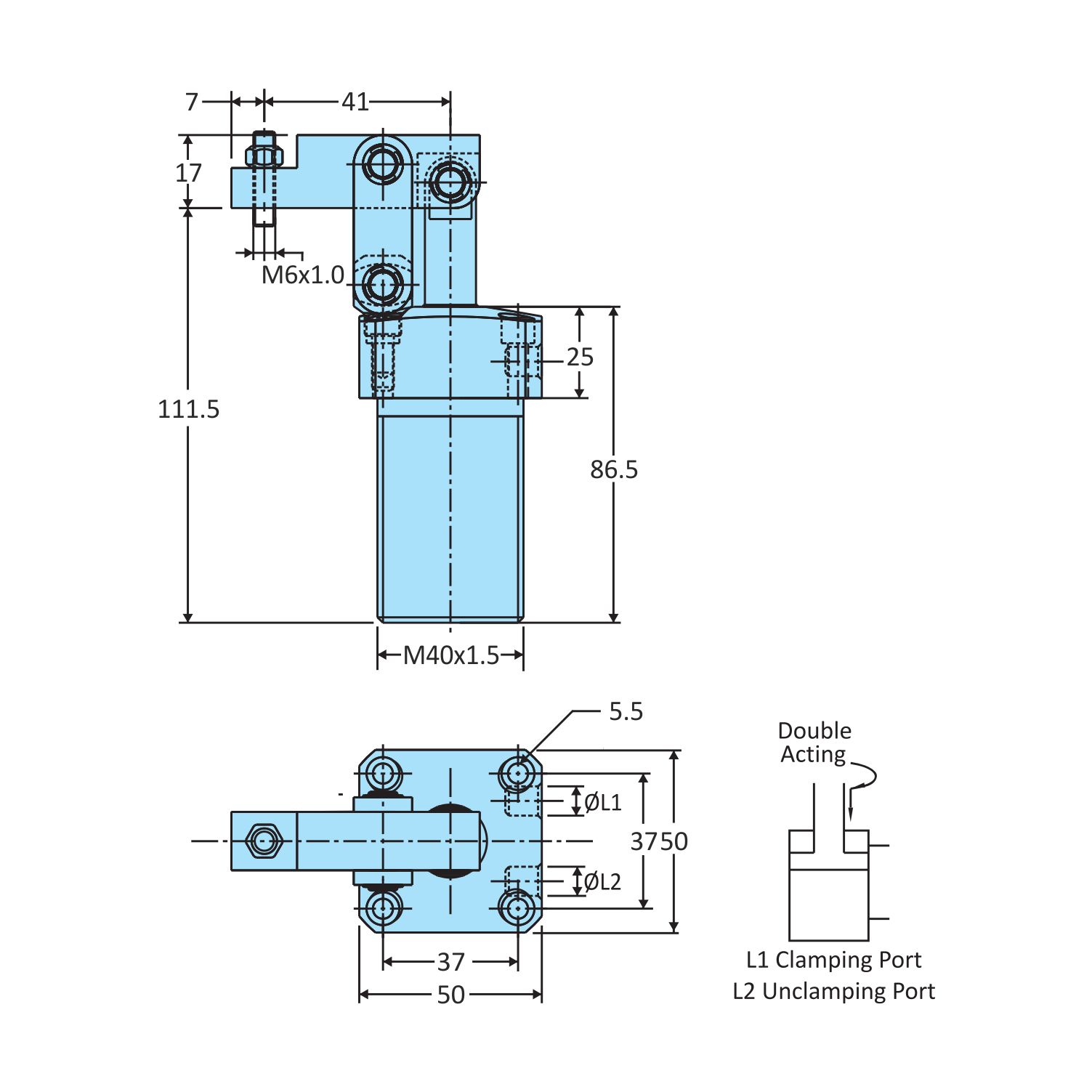

LC-25-PUF
Product Overview
LC-25-PUF is a pneumatic swing clamp that delivers a clamping force of 34 kg at 7 kg/cm� air pressure. Available in clockwise or anticlockwise swing direction, ensuring easy loading and unloading of workpieces. The clamp features a 22 mm clamping stroke, providing maximum flexibility for securely holding variable workpiece geometries. It operates within an allowable working pressure range of 4 to 7 bar, ensuring reliable and consistent performance.
Technical Specifications
| Material: | Aluminium Alloy Body |
| Finish: | Black Anodizing |
| Acting Type : | Double Acting |
| Force : | 32-218 Kgs |
| Working Pressure : | 4-7 Bar |
| Piston Dia : | 14 |
| Bore Dia : | 25 |
| Clamping Stroke : | 22 |
| Weight Kgs : | 0.6 |
Detailed Description
Swing clamps are used in CNC machining, welding fixtures, assembly lines, and automated tooling systems where quick, unobstructed loading is required. They provide secure and repeatable clamping for automotive, aerospace, metal fabrication, and industrial automation applications.
Industry verticals
Automotive Manufacturing, Aerospace & Defense, Industrial Machinery, Metal Fabrication, CNC Machining & Tooling, Heavy Engineering, Electronics Manufacturing, Robotics & Automation, and General Manufacturing Industries
