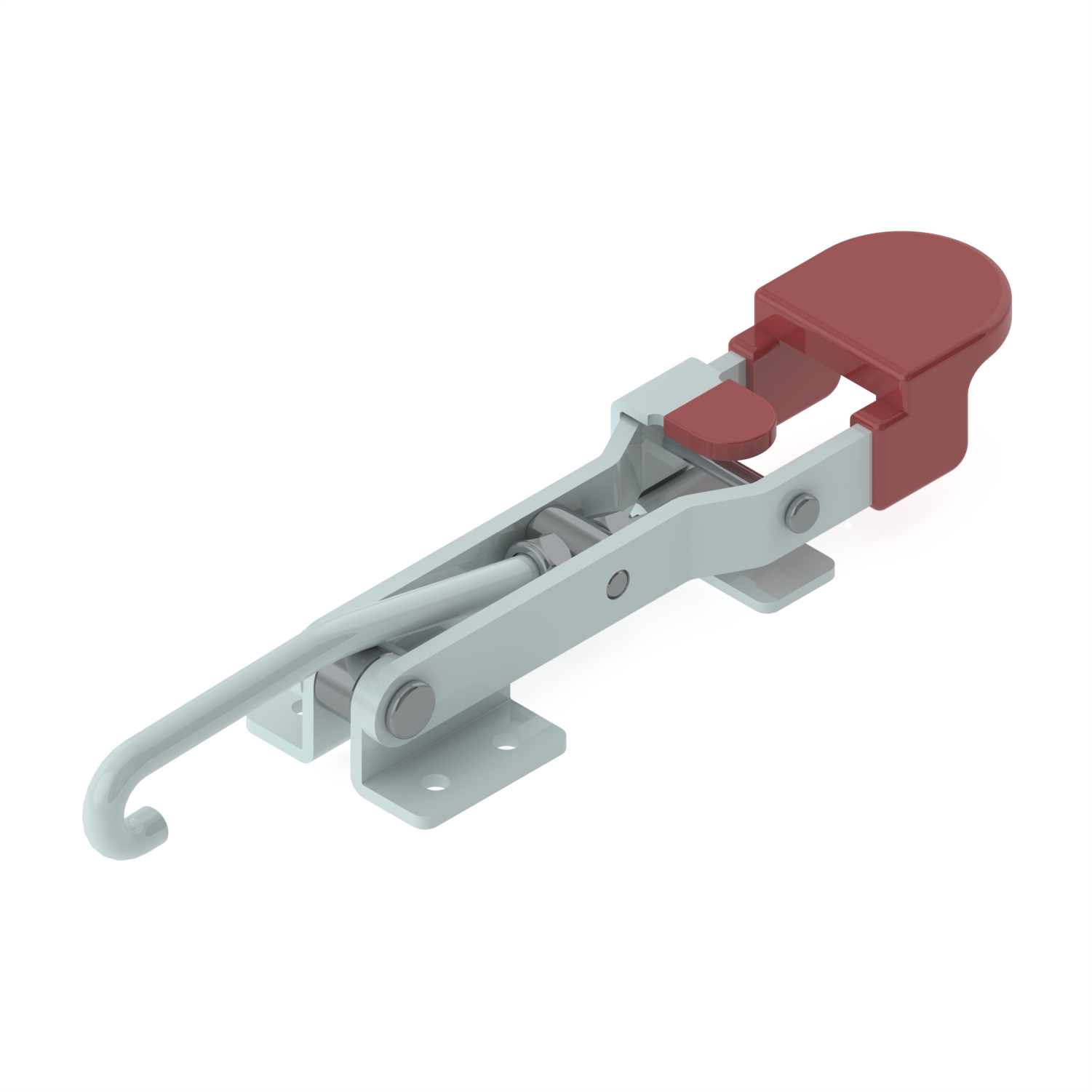

PA-351-TRIG
PA-351-TRIG Pull Action, PA Series Clamps, Additional Locking Mechanism
Product Overview

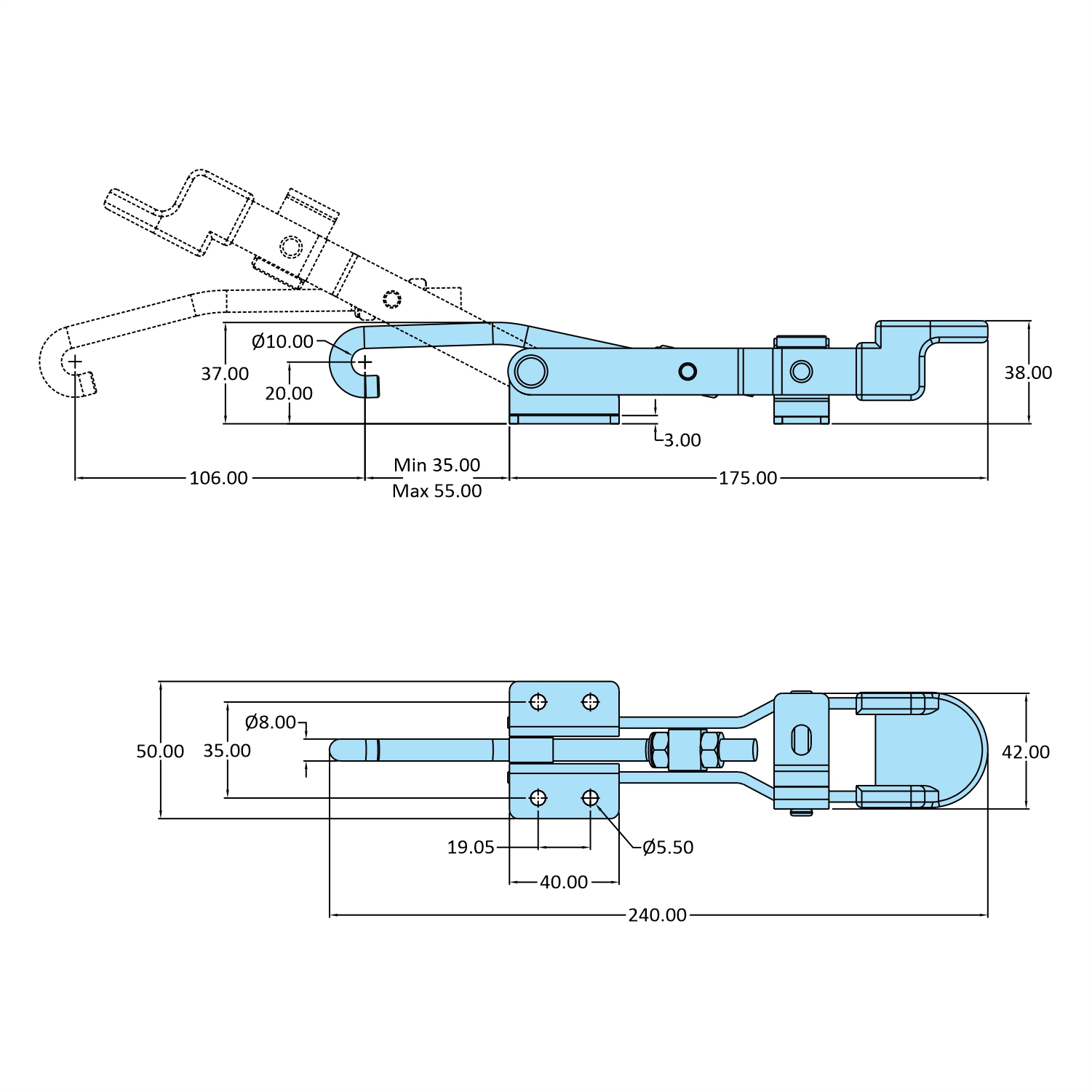

PA-351-TRIG is a additional locking machanism pull action toggle clamp with a holding capacity of 2.00 kN. It features a horizontal handle and an adjustable J-rod with 106 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with zinc plating for enhanced durability and corrosion resistance.
Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity : | 2.00 kN |
| Length: | 175.00 mm |
| Width: | 50.00 mm |
| Height: | 38.00 mm |
| Drawing Movement: | 106 |
| J Rod Part Number: | M814740J |
| Weight: | 0.410 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
