PA-3580
PA-3580 Pull Action PA Series Clamps
Product Overview

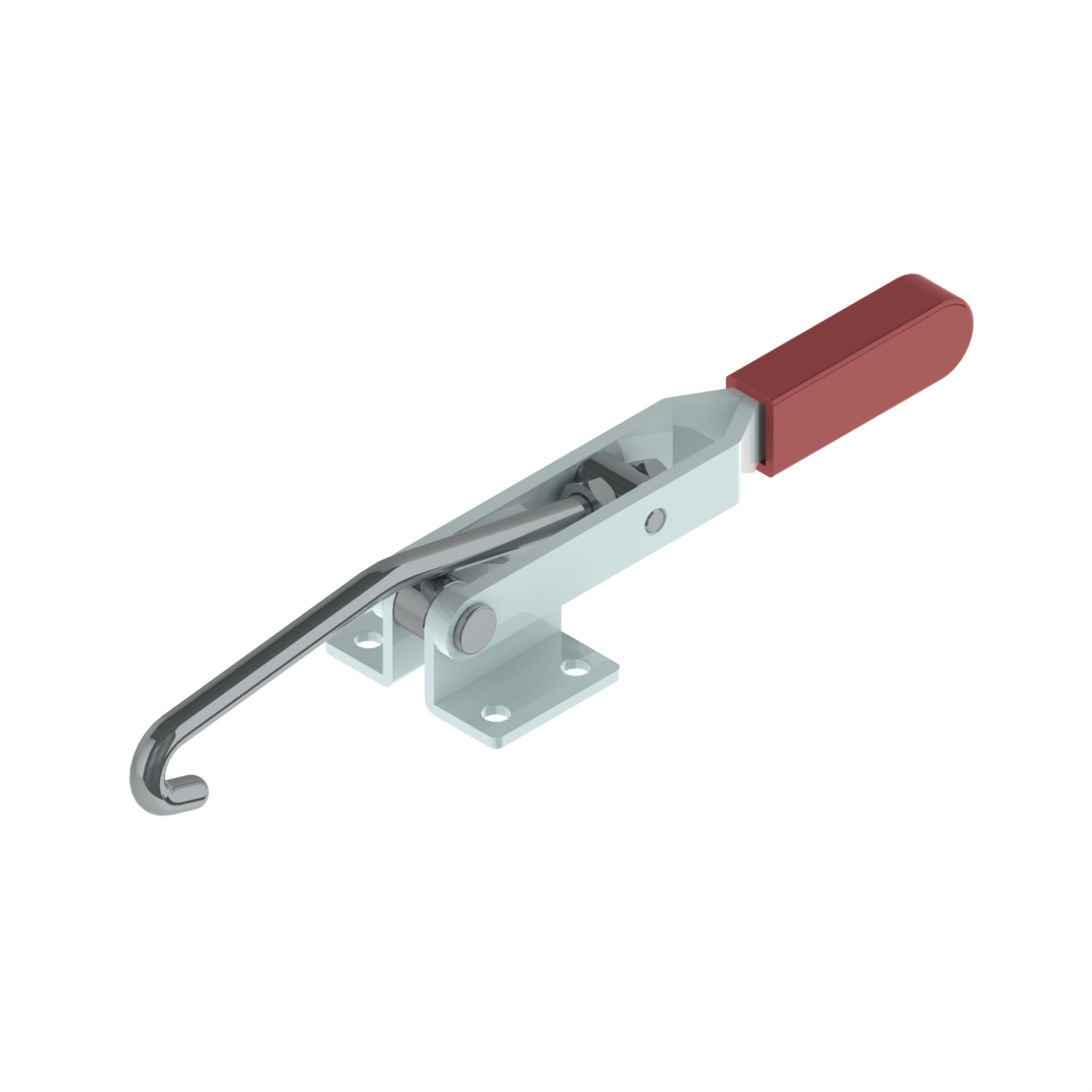

PA-3580 is a medium-duty Pull Action Toggle Clamp with a holding capacity of 3.90 kN. It features a horizontal handle and an adjustable j-rod with 137 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with zinc plating for enhanced durability and corrosion resistance.

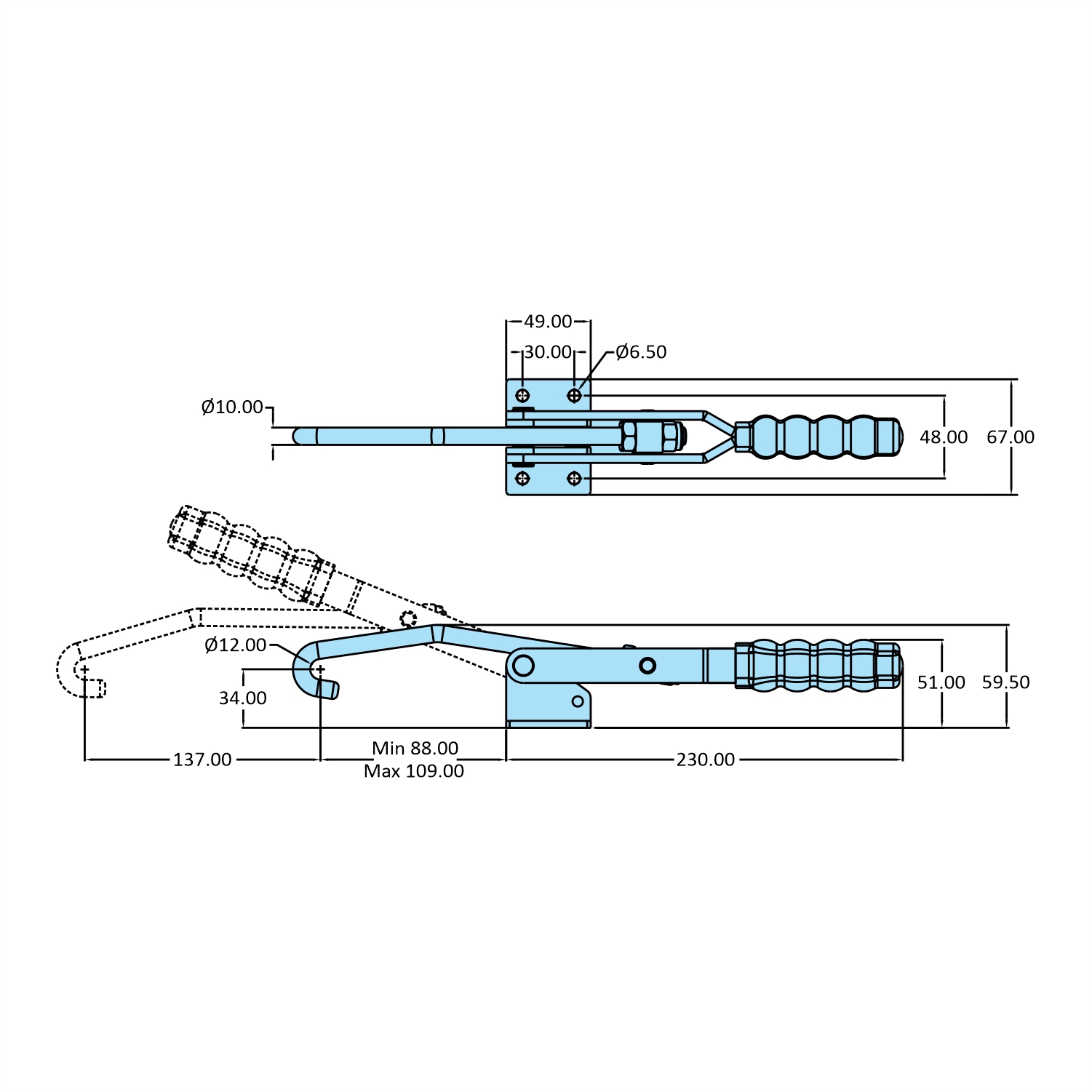

Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity : | 3.90 kN |
| Length: | 230.00 mm |
| Width: | 67.00 mm |
| Height: | 51.00 mm |
| Drawing Movement: | 137 |
| J Rod Part Number: | M1019950J |
| Weight: | 0.750 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
