PAH-1210-SS
PAH-1210-SS Pull Action, Horizontal Series Clamps
Product Overview

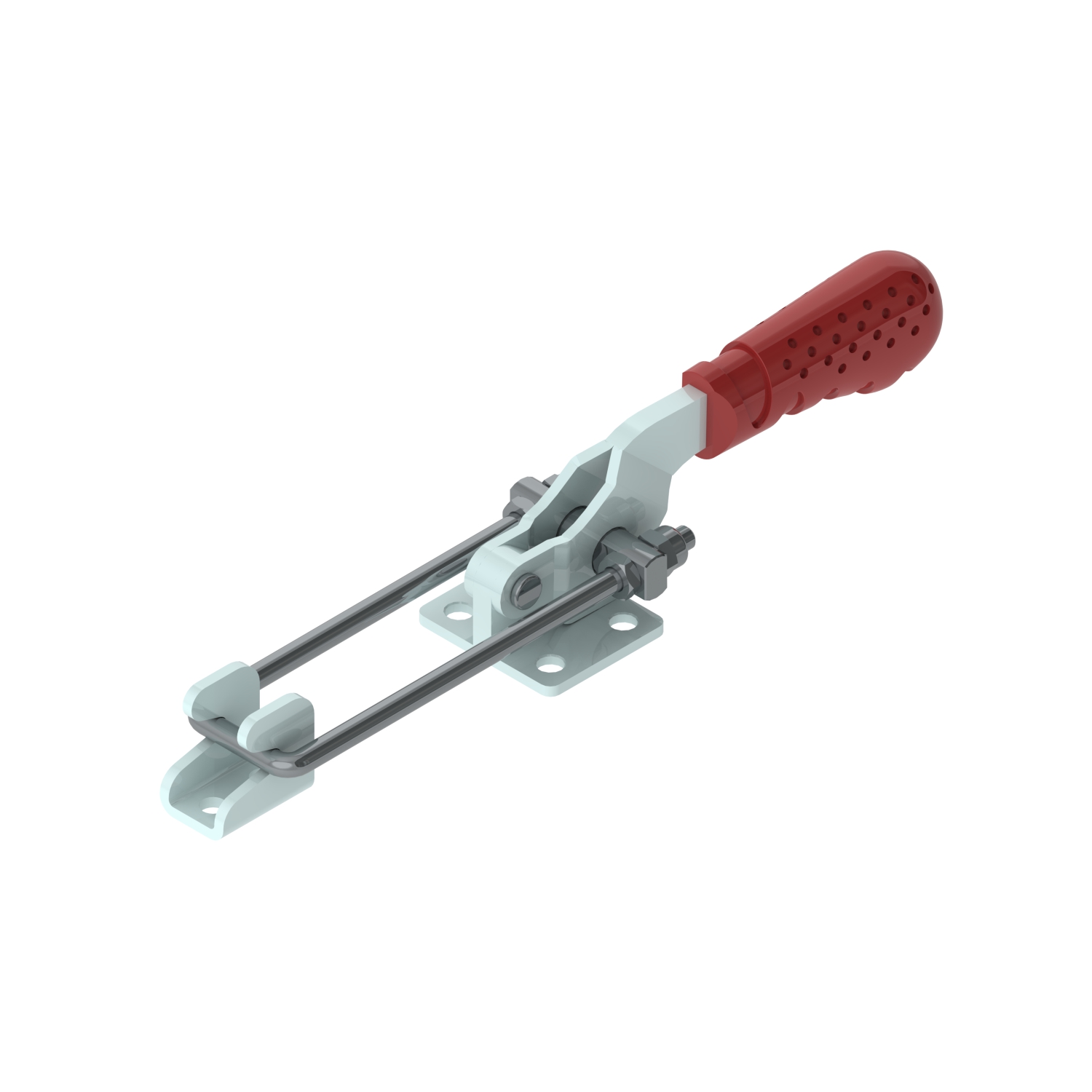

PAH-1210-SS is a medium-duty Pull Action Toggle Clamp with a holding capacity of 1.00 kN. It features a horizontal handle and an adjustable U-rod with 33 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality stainless steel and finished with electro polishing for enhanced durability and corrosion resistance.
Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Stainless Steel-304 |
| Finish: | Electro Polishing |
| Holding Capacity : | 1.00 kN |

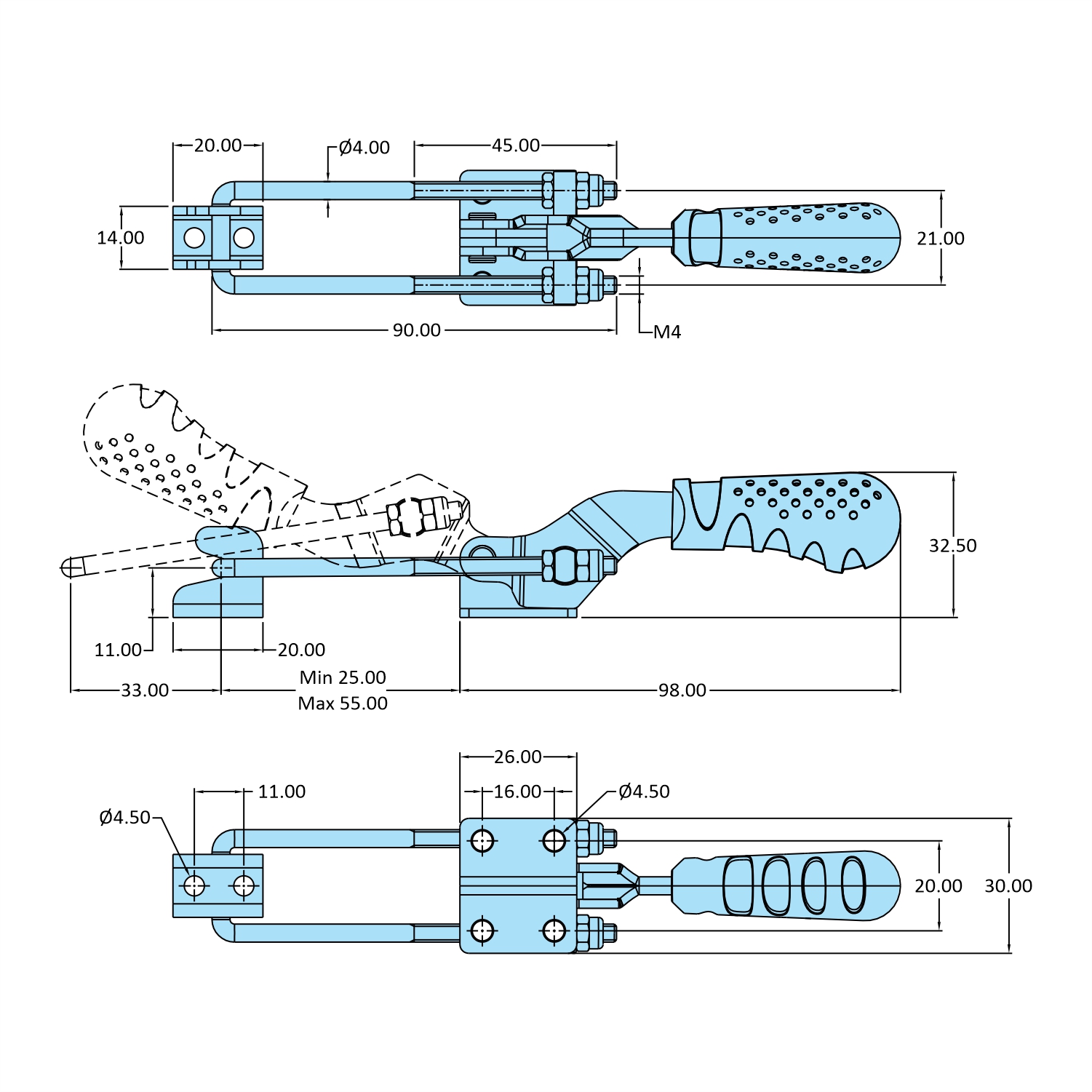

| Length: | 98.00 mm |
| Width: | 30.00 mm |
| Height: | 32.50 mm |
| Drawing Movement: | 35 |
| U Bolt Part Number: | M49045-SS |
| Front Hook Part Number: | FH-15-500-SS |
| Weight: | 0.100 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
