PAH-30-550

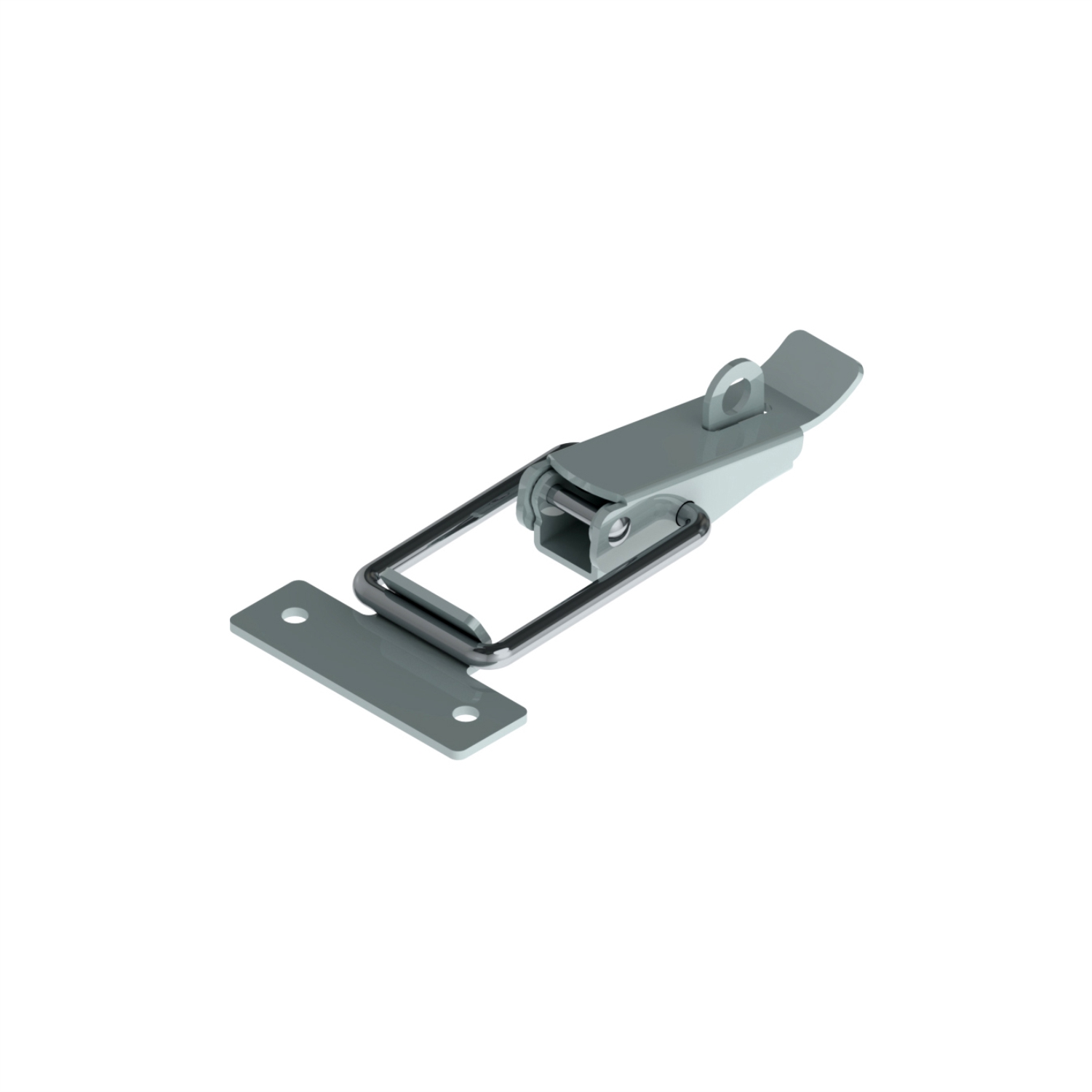

PAH-30-550 Latch Clamps, Medium Duty, 30 Series
Product Overview
PAH-30-550 is a medium-duty non adjustable with a padlockable Pull Action Latch Clamp with a holding capacity of 4.40 kN. It features a horizontal handle, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with zinc plating for enhanced durability and corrosion resistance.
Technical Specifications
| Handle Type : | Latch |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity: | 4.40 kN |
| Supplied with Hook: | FH-01-502 |
| Weight: | 0.100 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
