PAH-3062-M50-SS
PAH-3062-M50-SS Pull Action, Heavy Duty, Horizontal Series Clamps
Product Overview

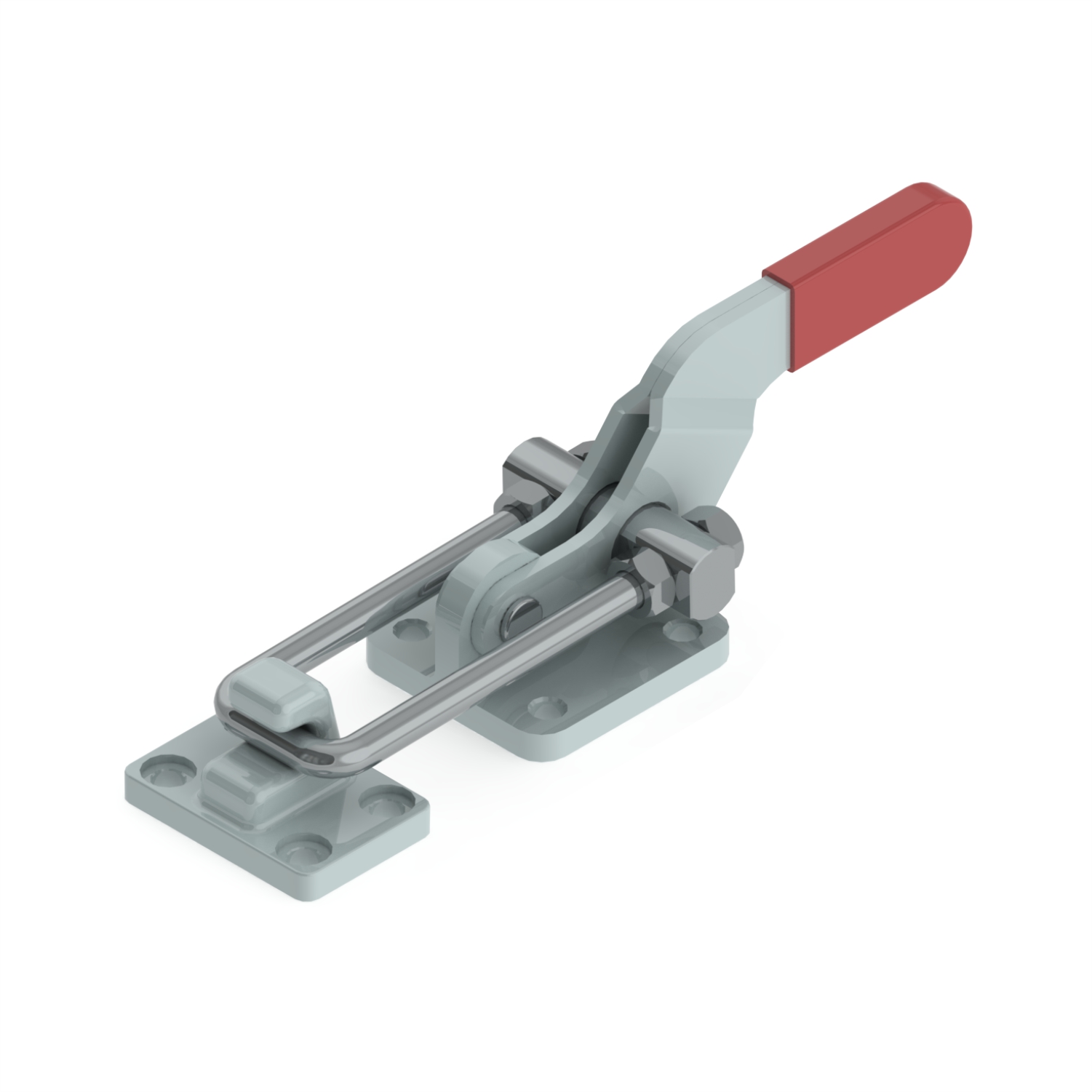

PAH-3062-M50-SS is a heavy-duty Pull Action Toggle Clamp with a holding capacity of 29.40 kN. It features a horizontal handle and an adjustable U-rod with 87 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality stainless steel and finished with electro polishing for enhanced durability and corrosion resistance.

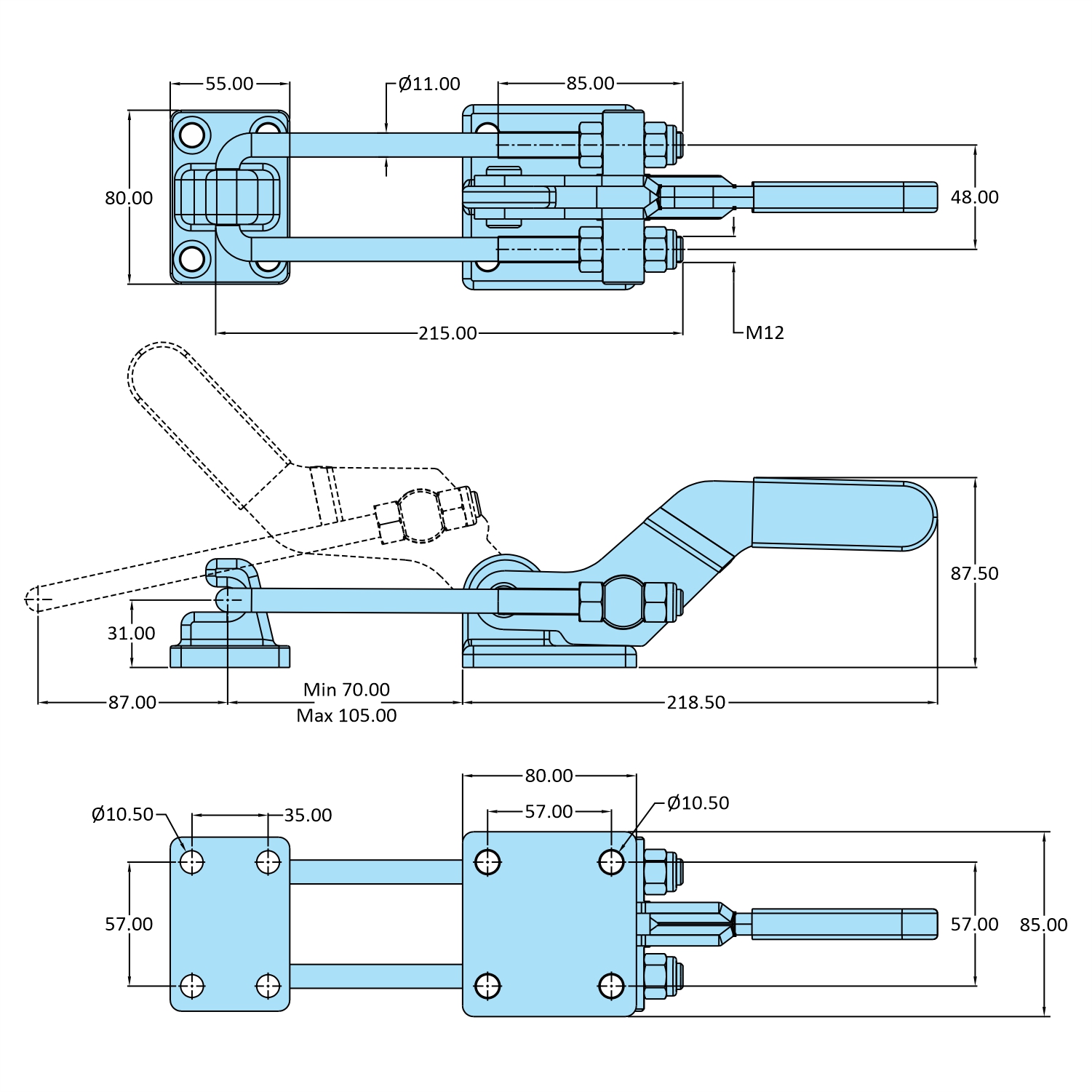

Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Stainless Steel-304 |
| Finish: | Electro-Plating |
| Holding Capacity : | 29.40 kN |
| Length: | 218.50 mm |
| Width: | 85.00 mm |
| Height: | 87.50 mm |
| Drawing Movement: | 87 |
| U Bolt Part Number: | M1221585-SS |
| Front Hook Part Number: | FH-2603-SS |
| Weight: | 2.280 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
