PAH-320-FM
PAH-320-FM Pull Action, Vertical Series Clamps
Product Overview

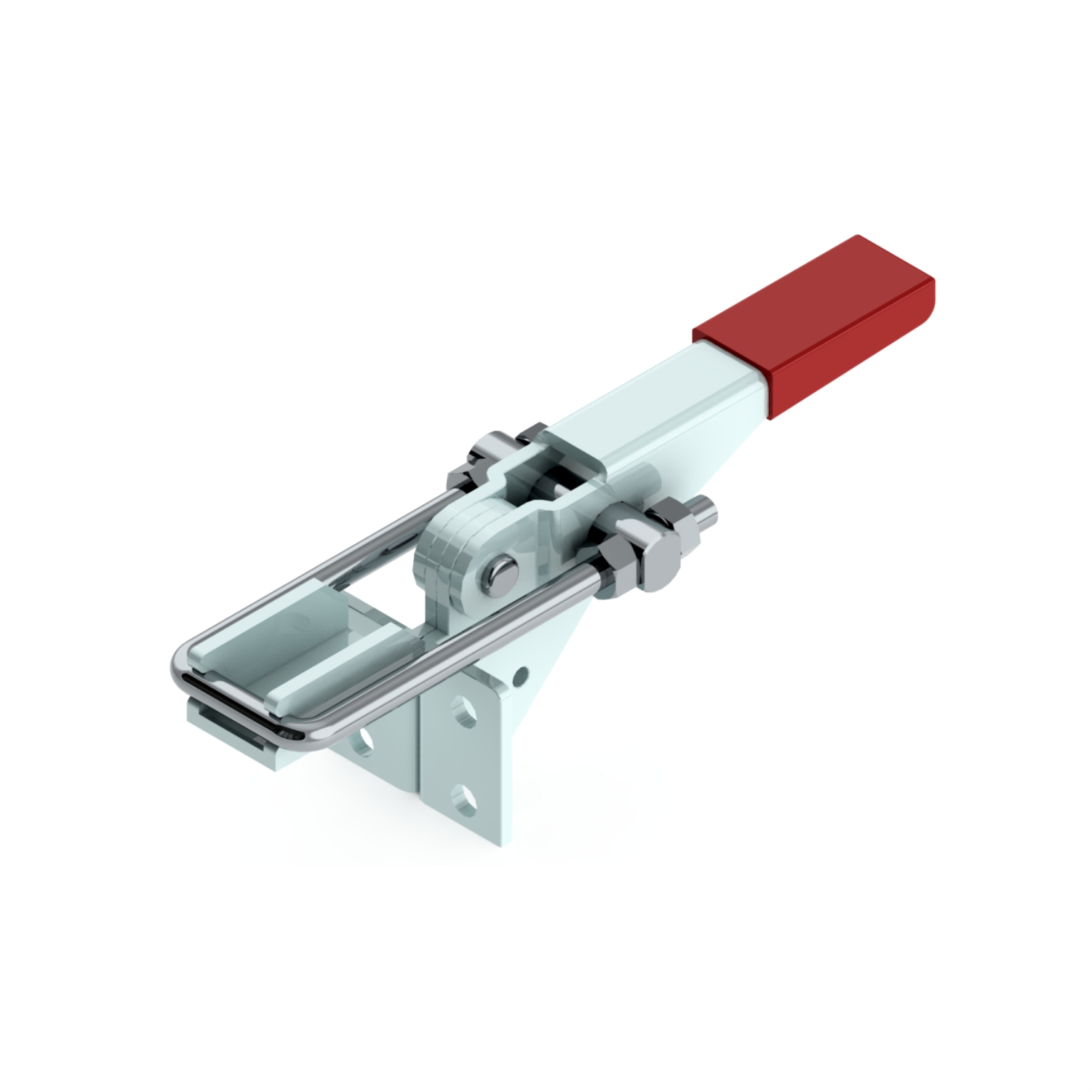

PAH-320-FM is a medium-duty Pull Action Toggle Clamp with a front mounting base and a holding capacity of 3.40 kN. It features a horizontal handle and an adjustable U-rod with 39 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with zinc plating for enhanced durability and corrosion resistance.

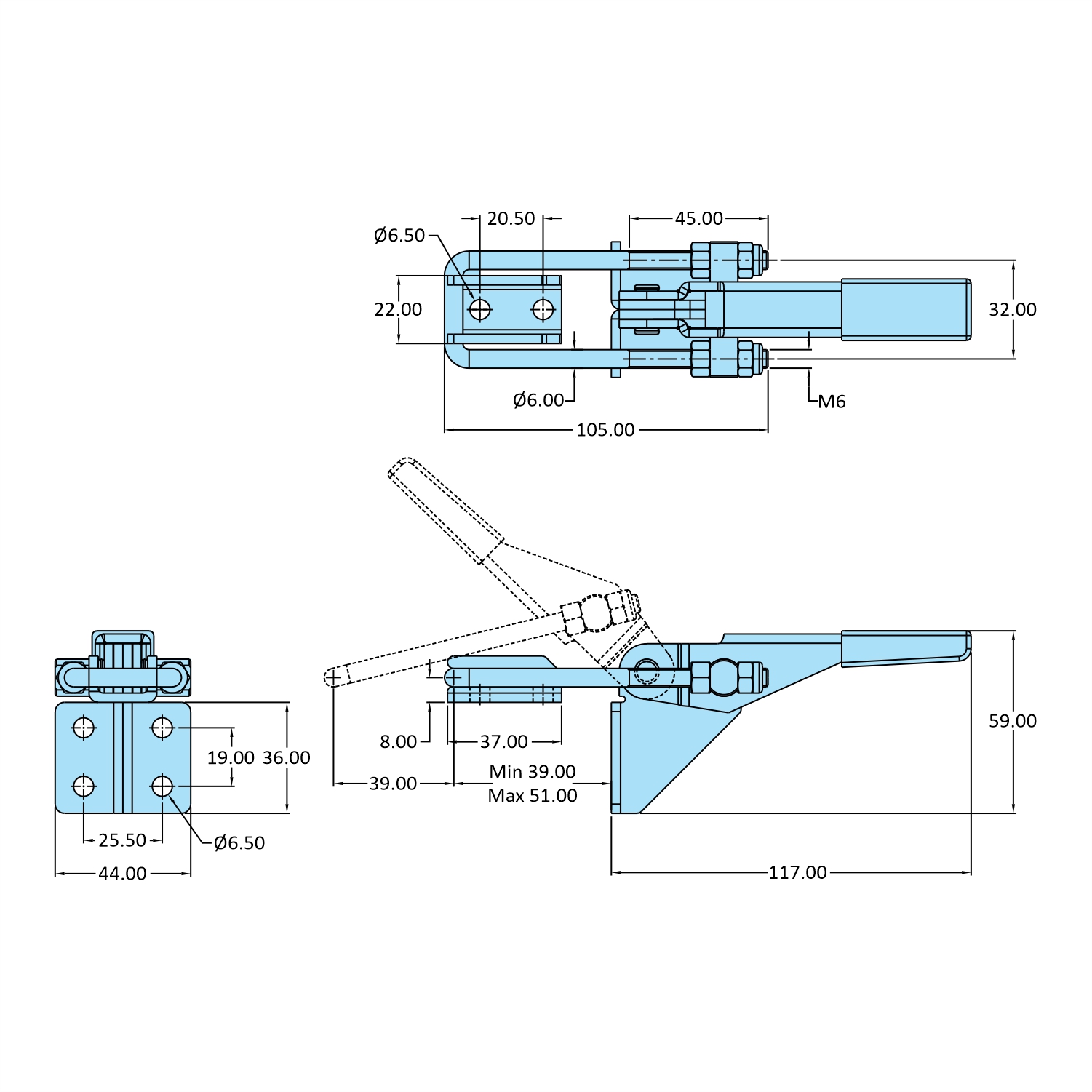

Technical Specifications
| Handle Type : | Pull |
| Base Type: | Front Mounting Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity : | 3.40 kN |
| Length: | 117.00 mm |
| Width: | 44.00 mm |
| Height: | 59.00 mm |
| Drawing Movement: | 39 |
| U Bolt Part Number: | M610545 |
| Front Hook Part Number: | FH-320 |
| Weight: | 0.350 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
