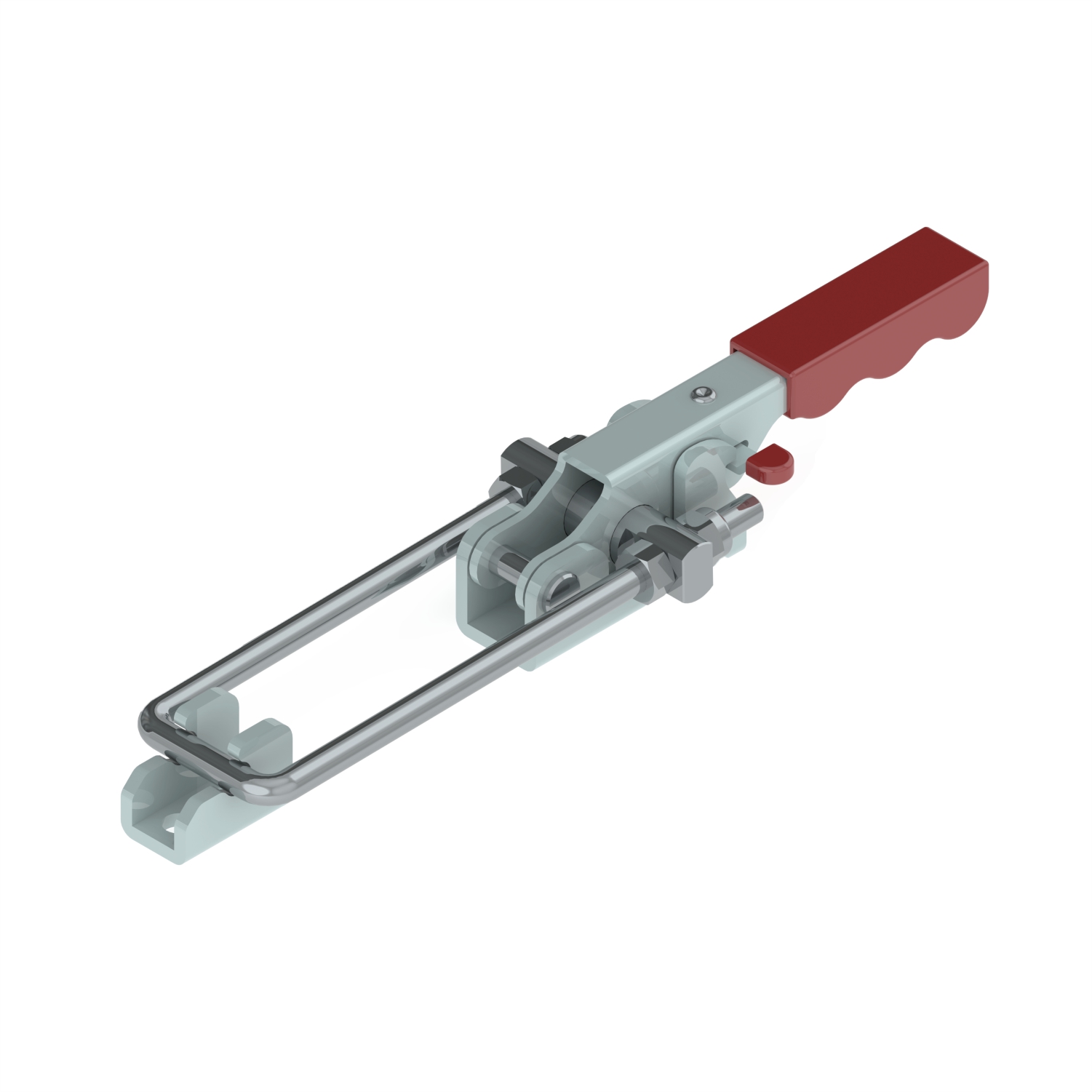

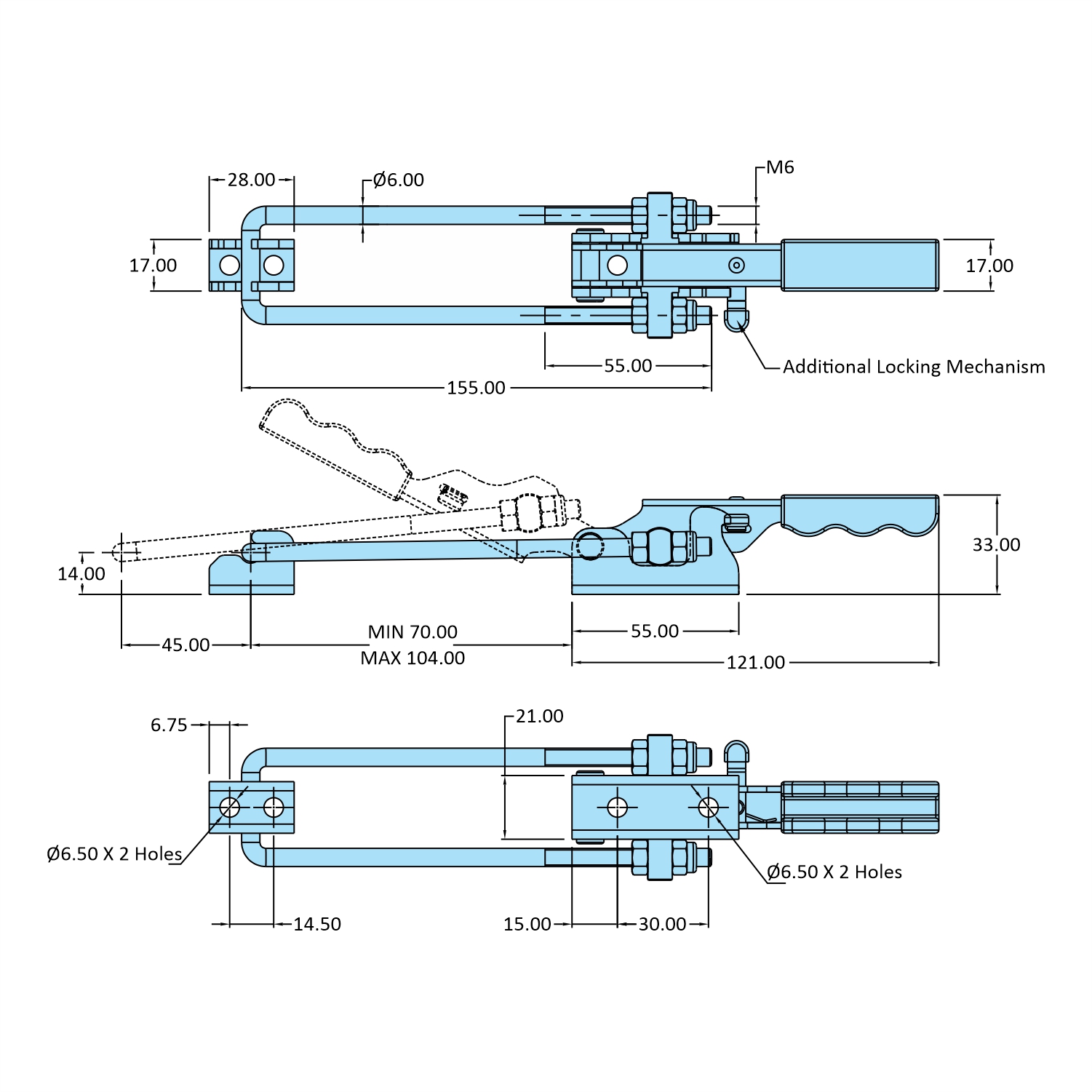

PAH-35-2000-TRIG-M25-SS
Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Stainless Steel-305 |
| Finish: | Electro Polishing |
| Holding Capacity : | 3.40 kN |
| Length: | 179.00 mm |
| Width: | 21.00 mm |
| Height: | 30.00 mm |
| Drawing Movement: | 45 |
| U Bolt Part Number: | M615555-SS |
| Front Hook Part Number: | FH-35-2000-SS |
| Weight: | 0.320 Kgs |
