PAH-385-M50
PAH-385-M50 Pull Action, Heavy Duty, Horizontal Series Clamps
Product Overview

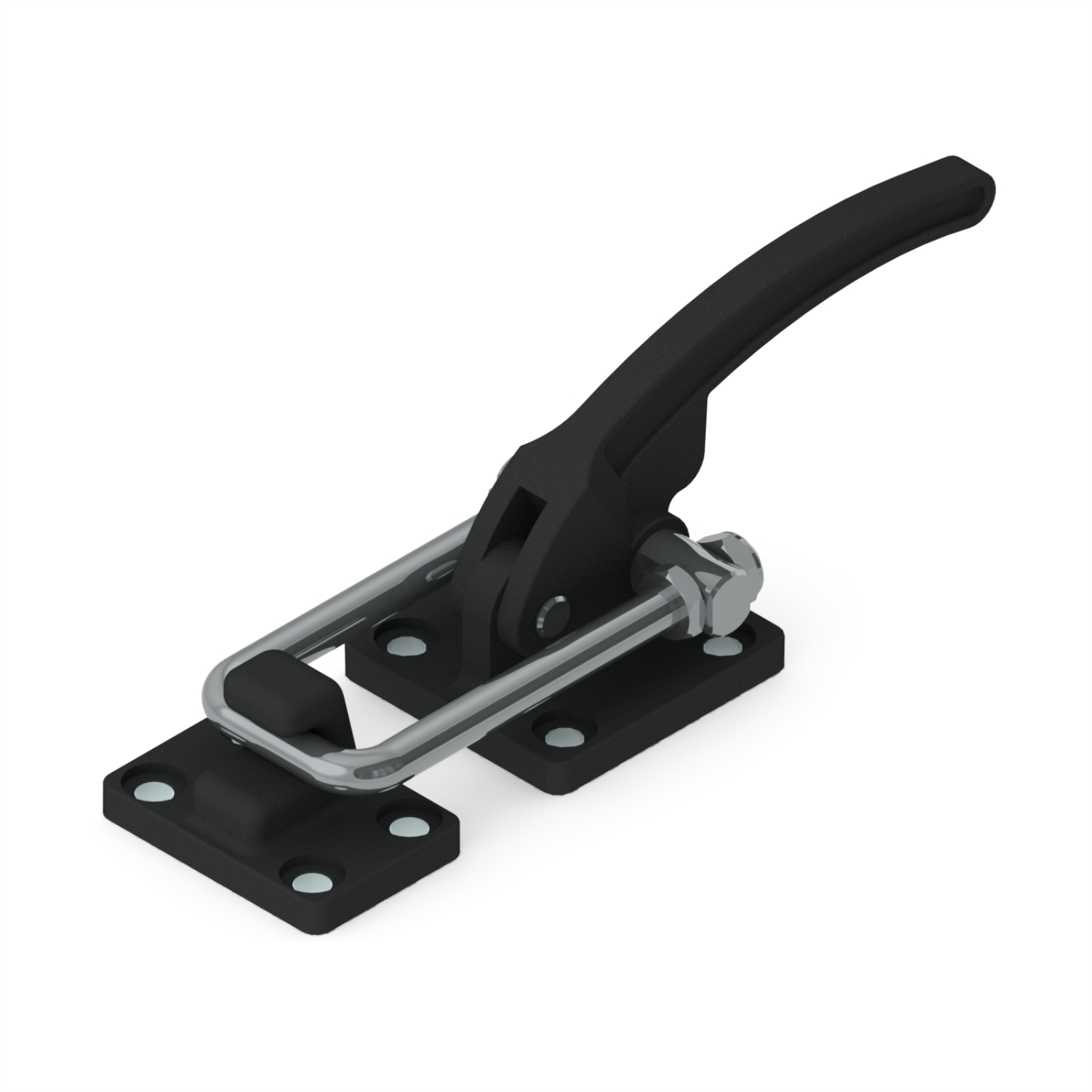

PAH-385-M50 is a heavy-duty Pull Action Toggle Clamp with a holding capacity of 34.30 kN. It features a horizontal handle and an adjustable U-rod with 56 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with black ed* coating for enhanced durability and corrosion resistance.

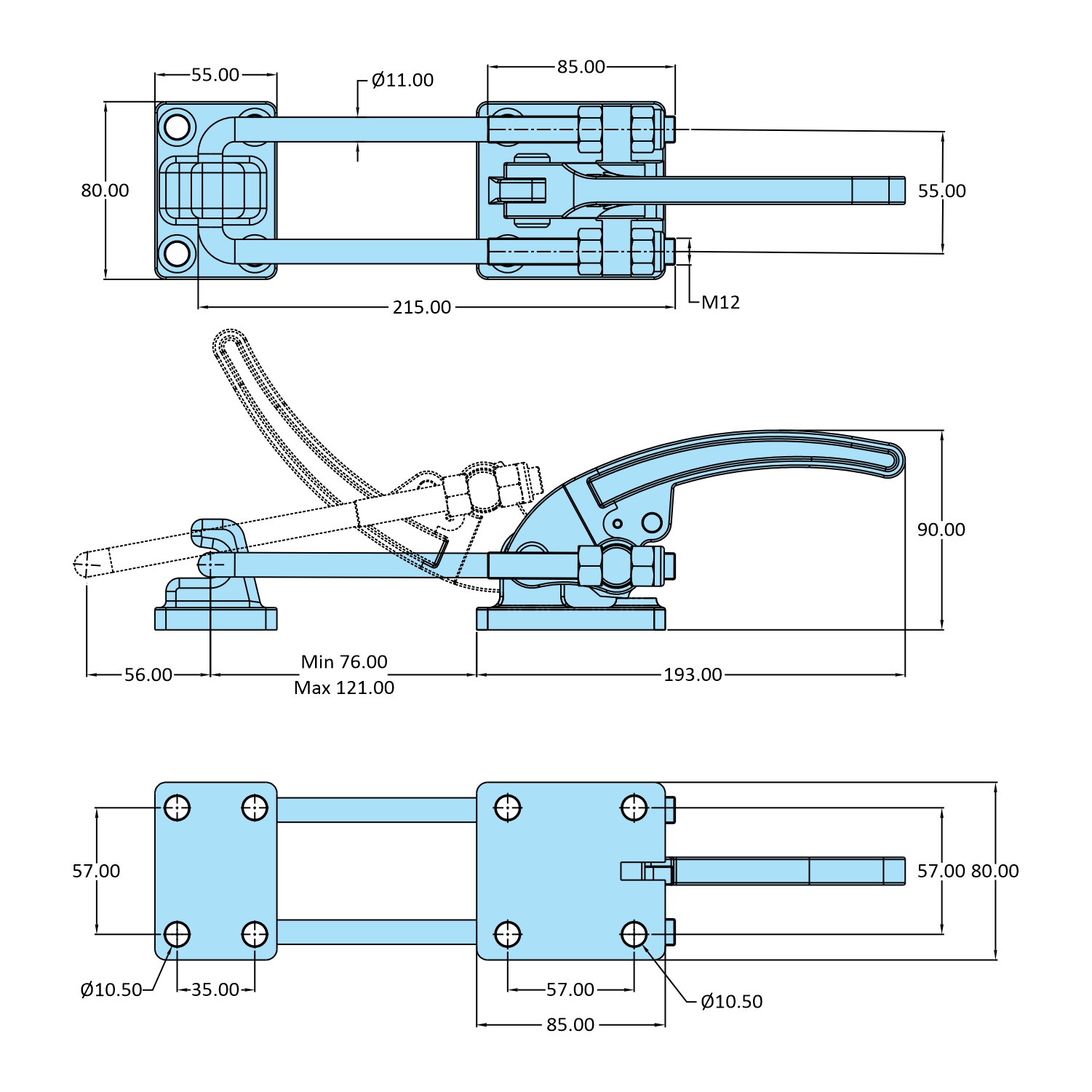

Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Black ED* Coating |
| Holding Capacity : | 34.30 kN |
| Length: | 193.00 mm |
| Width: | 80.00 mm |
| Height: | 90.00 mm |
| Drawing Movement: | 56 |
| U Bolt Part Number: | M1221585-55 |
| Front Hook Part Number: | FH-385 |
| Weight: | 2.080 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
