PAH-386-L-HV
PAH-386-L-HV Pull Action, Heavy Duty, Horizontal Series Clamps
Product Overview
PAH-386-L-HV is a heavy-duty Pull Action Toggle Clamp with a holding capacity of 34.30 kN. It features a horizontal handle and an adjustable U-rod with 58 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with black ed* coating for enhanced durability and corrosion resistance.

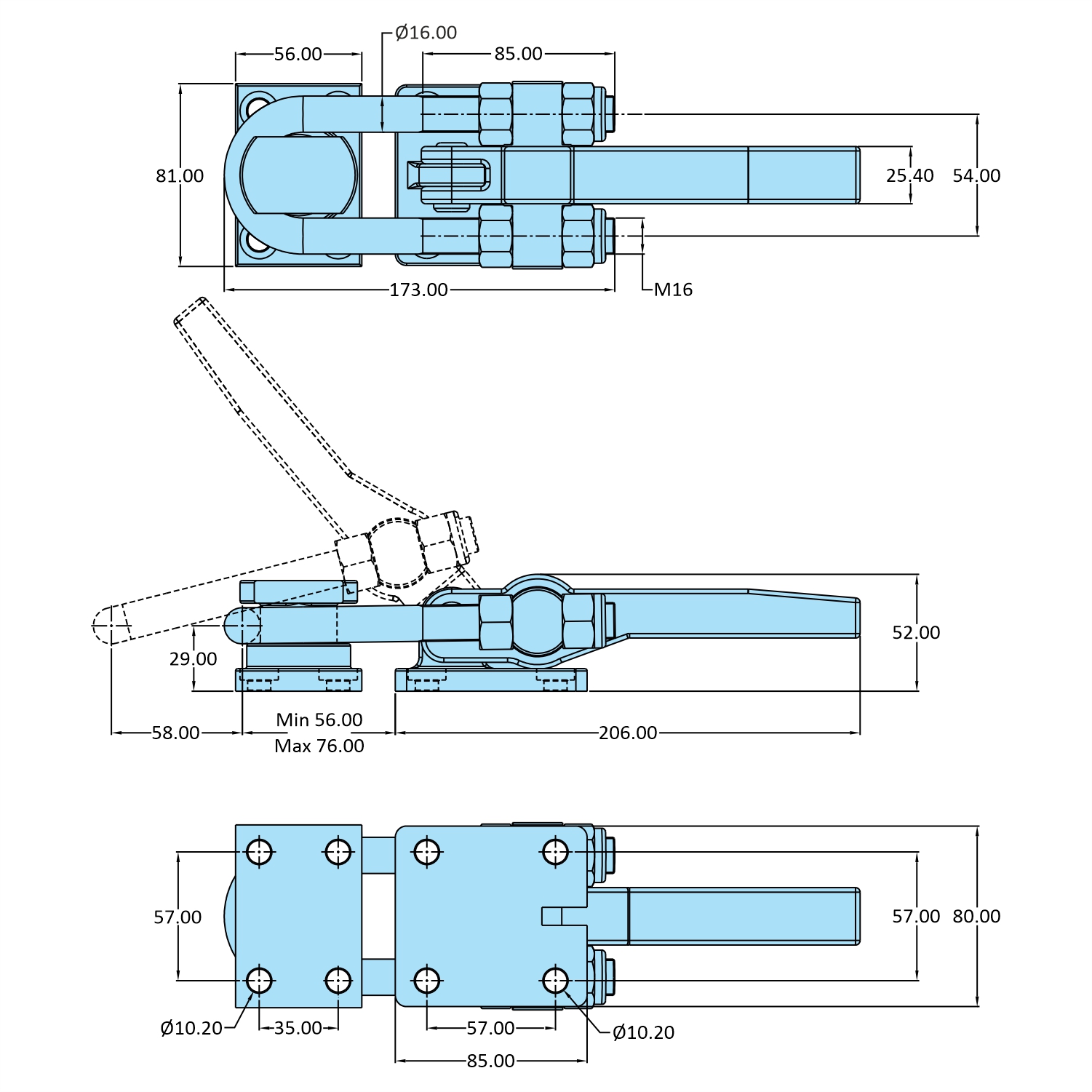

Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Black ED* Coating |
| Holding Capacity : | 50.00 kN |
| Length: | 206.00 mm |
| Width: | 80.00 mm |
| Height: | 52.00 mm |
| Drawing Movement: | 58 |
| U Bolt Part Number: | M1617385 |
| Front Hook Part Number: | FH-386-L-HV |
| Weight: | 3.100 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
