PAH-44-4000-TRIG-SS
PAH-44-4000-TRIG-SS Latch Clamps, Medium Duty
Product Overview

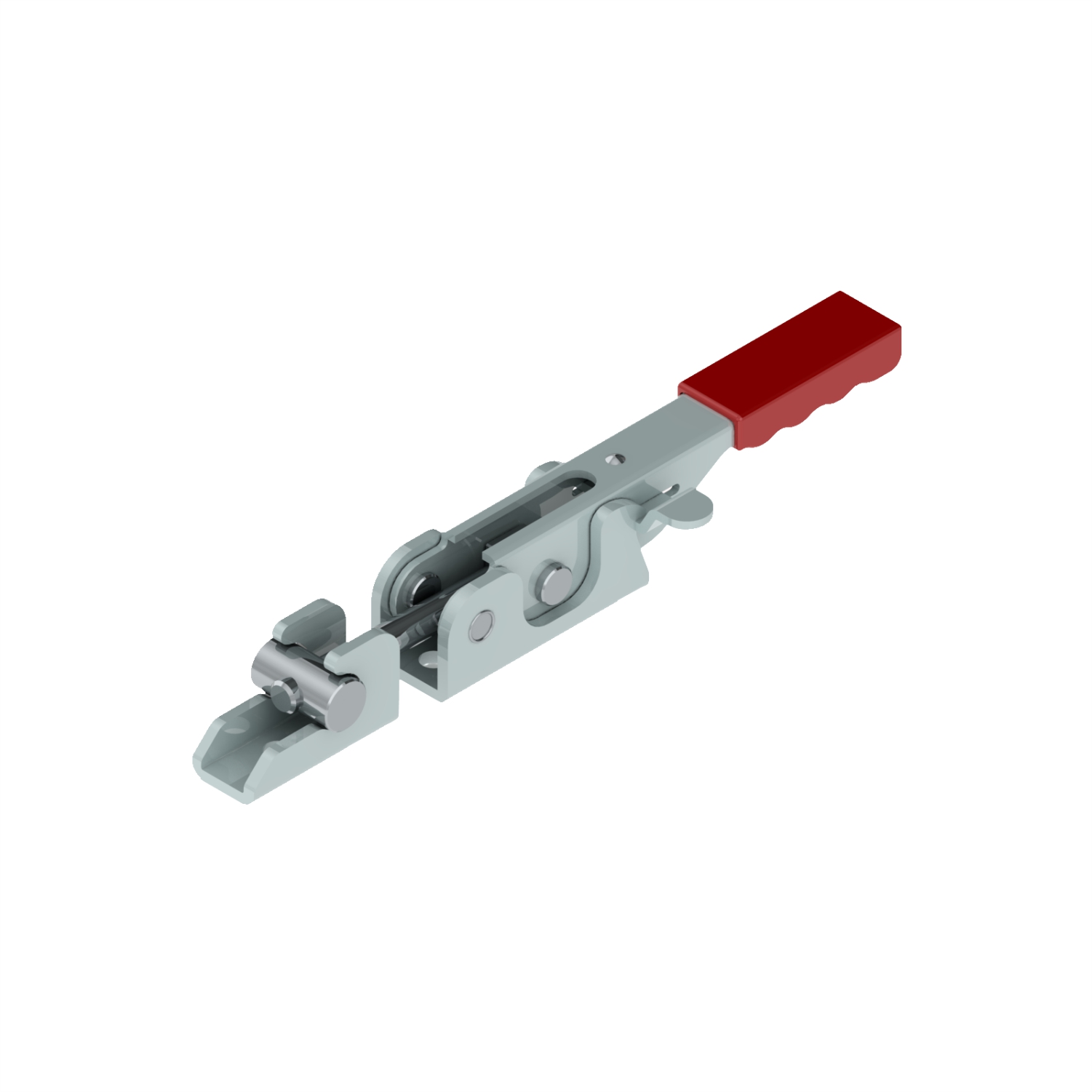

PAH-44-4000-TRIG-SS is a medium-duty non adjustable with additional locking mechanism Pull Action Latch Clamp with a holding capacity of 19.60 kN. It features a horizontal handle, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality stainless steel and finished with electro polishing for enhanced durability and corrosion resistance.
Technical Specifications
| Handle Type : | Latch |
| Material: | Stainless Steel-304 |
| Finish: | Electro Polishing |
| Holding Capacity: | 2.90 kN |
| Supplied with Hook: | FH-60-2600-SS |
| Weight: | 0.180 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
