PAH-5442-TRIG
PAH-5442-TRIG Pull Action, Horizontal Series Clamps, Additional Locking Mechanism
Product Overview

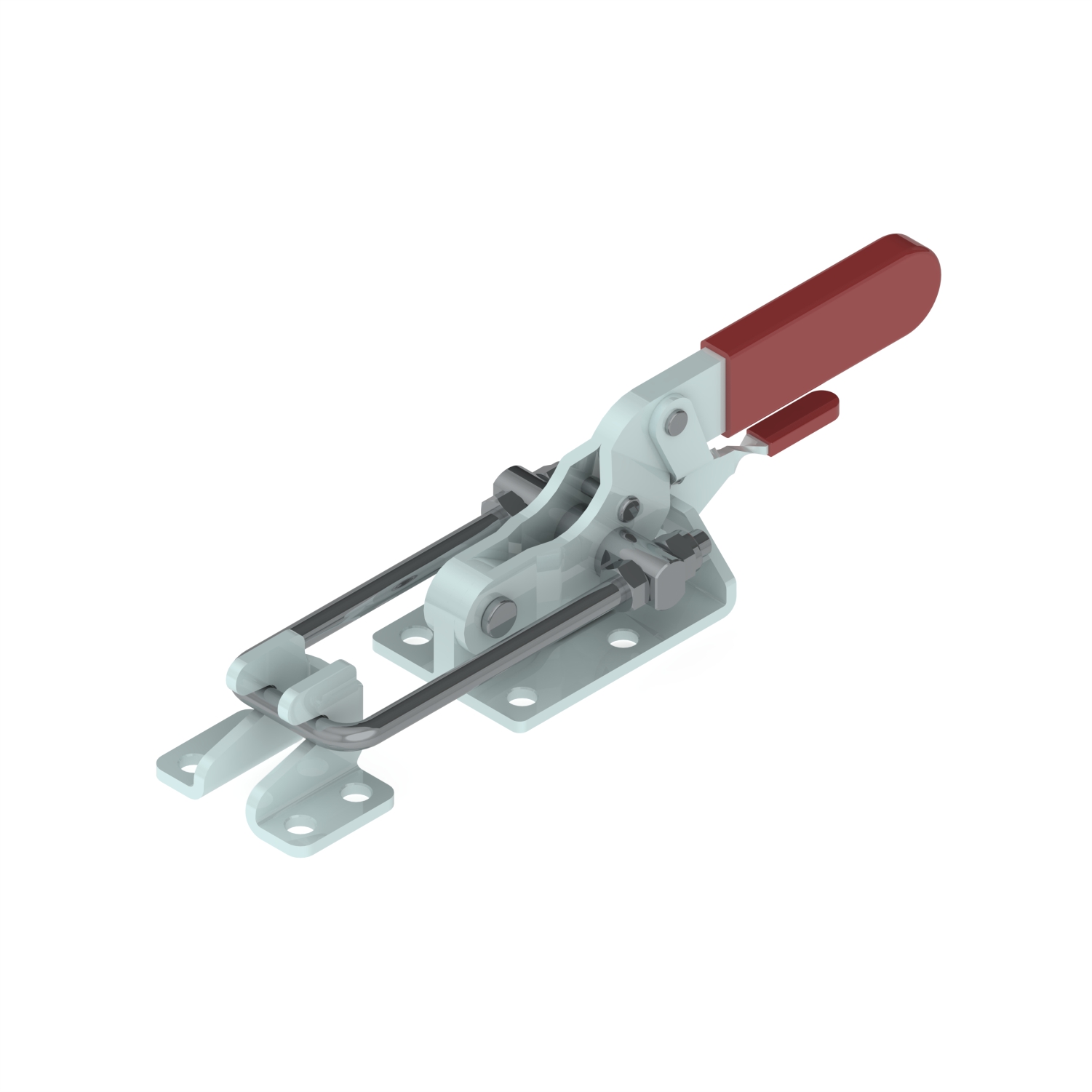

PAH-5442-TRIG is a additional locking machanism pull action toggle clamp with a holding capacity of 9.30 kN. It features a horizontal handle and an adjustable U-rod with 77 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with zinc plating for enhanced durability and corrosion resistance.

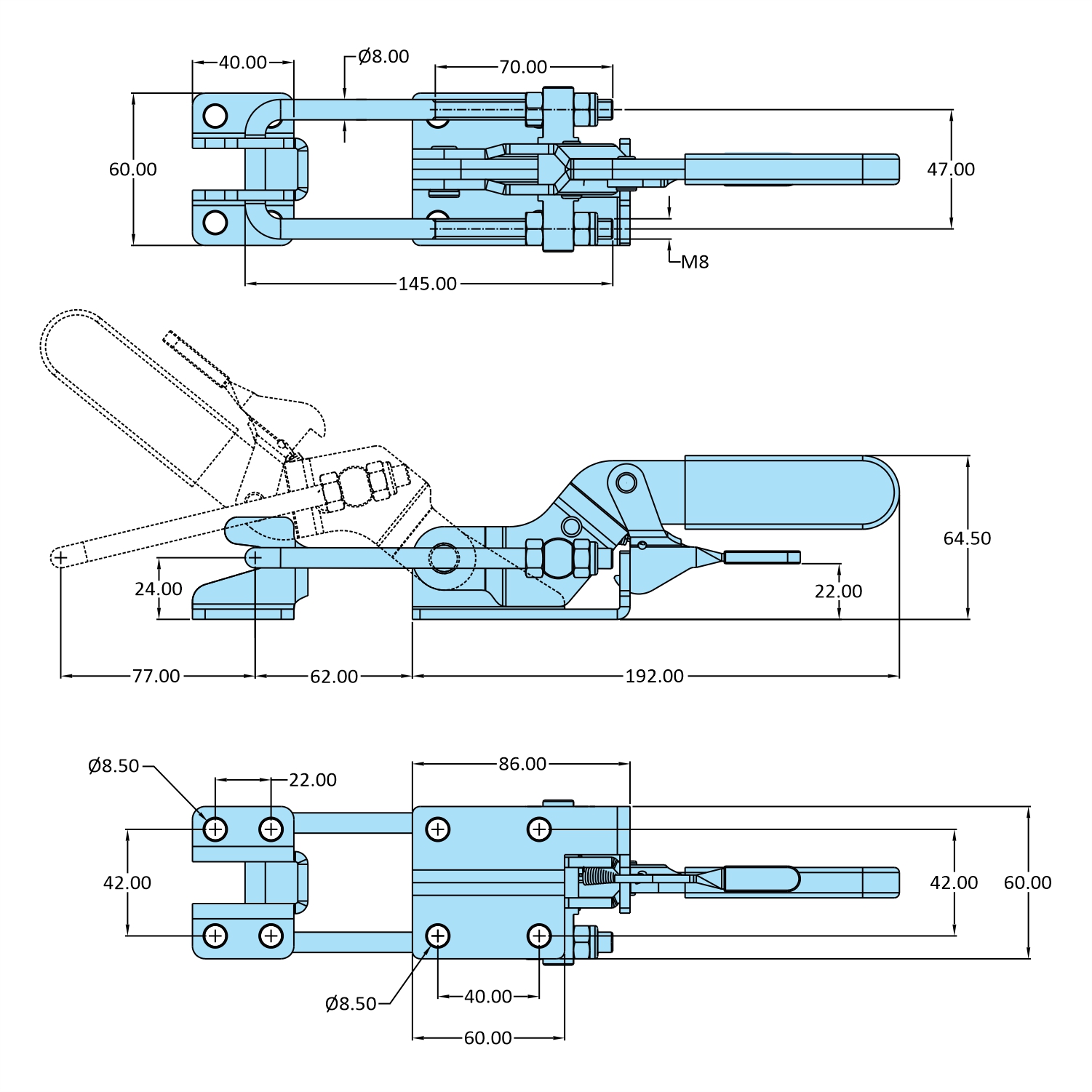

Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity : | 9.30 kN |
| Length: | 192.00 mm |
| Width: | 60.00 mm |
| Height: | 64.50 mm |
| Drawing Movement: | 77 |
| U Bolt Part Number: | M814570 |
| Front Hook Part Number: | FH-2445 |
| Weight: | 0.900 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
