PAV-5636-SS

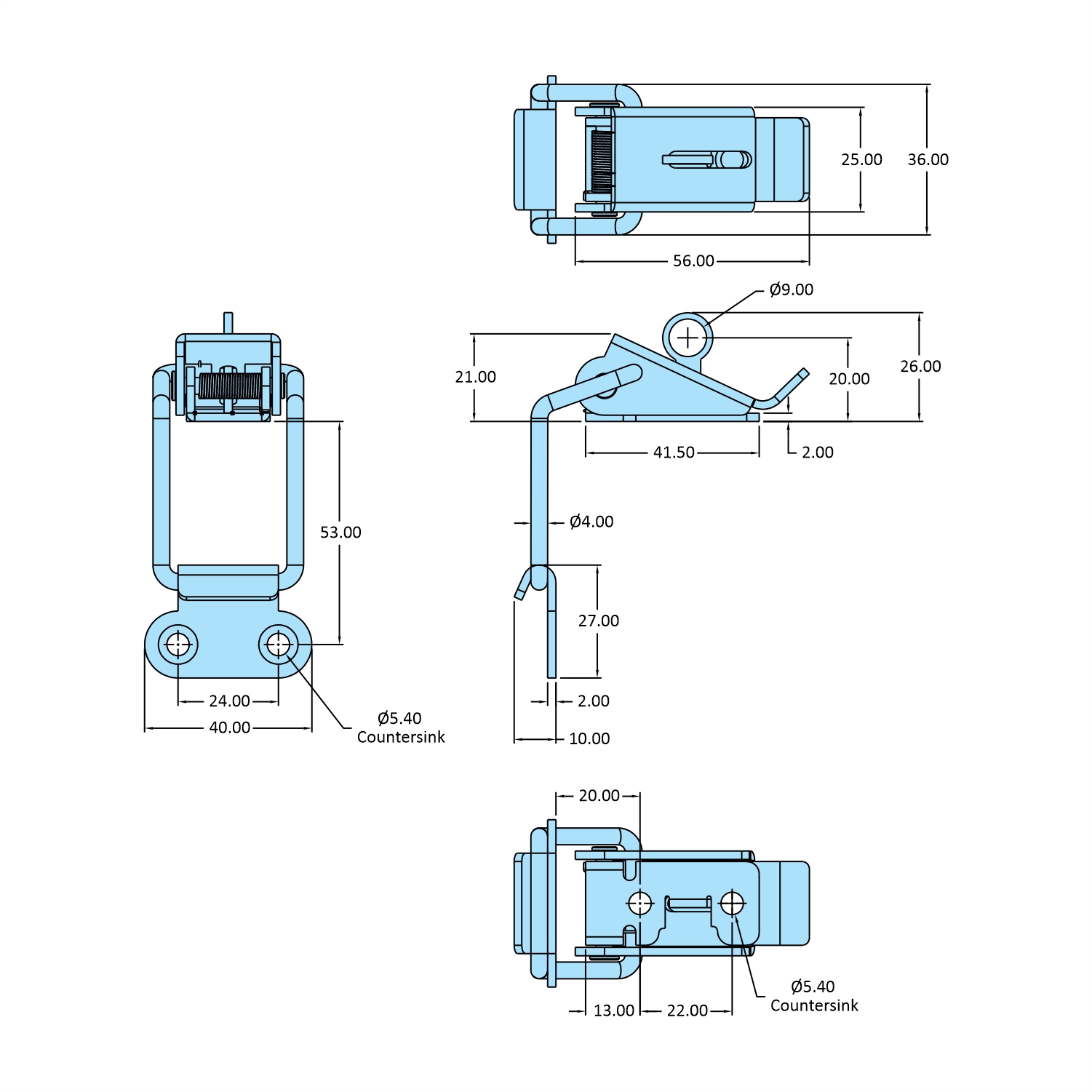

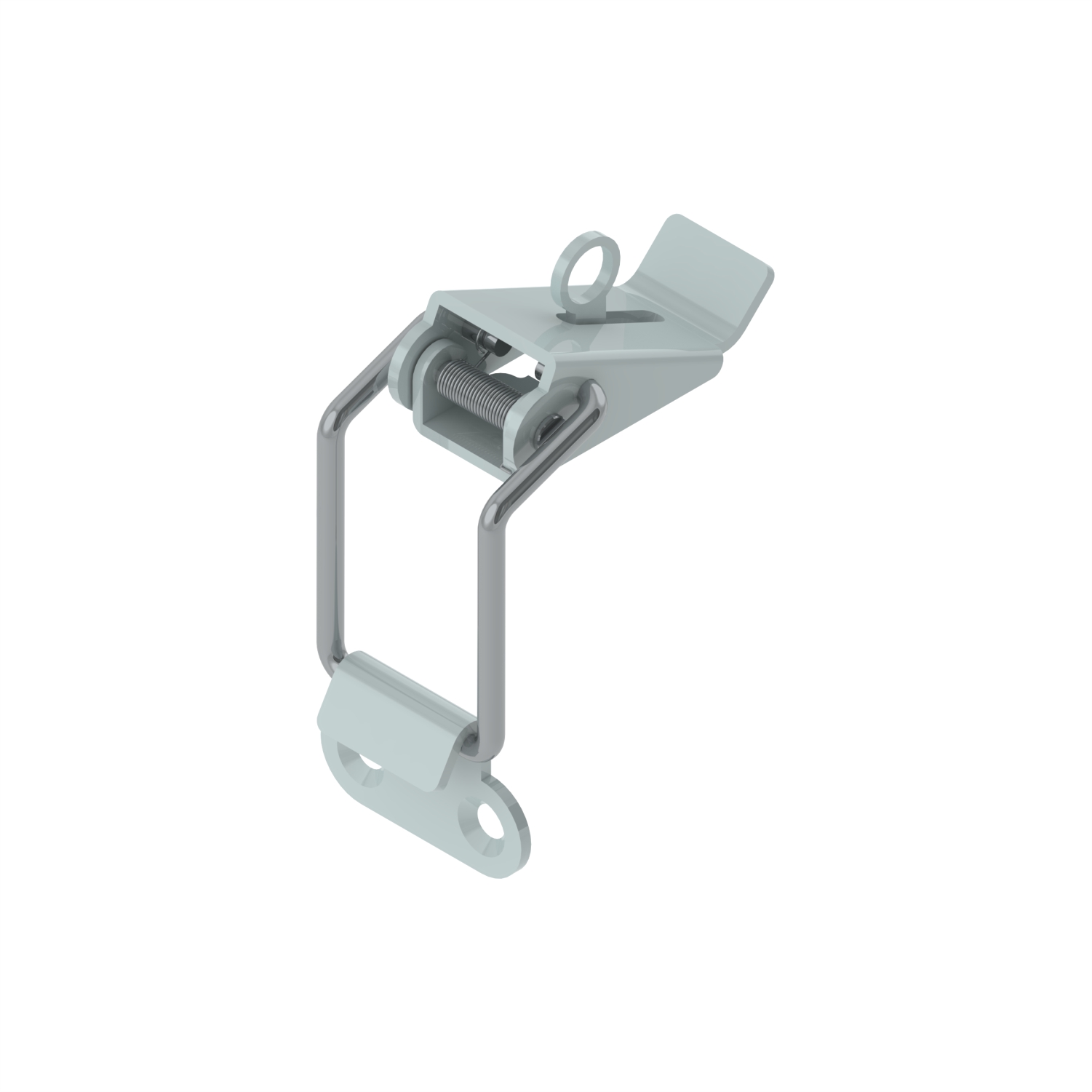

PAV-5636-SS Latch Clamps, Medium Duty, Right Angle
Product Overview
PAV-5636-SS is a medium-duty right angle-non adjustable Pull Action Latch Clamp with a holding capacity of 0.70 kN. It features a horizontal handle, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality stainless steel and finished with electro polishing for enhanced durability and corrosion resistance.
Technical Specifications
| Handle Type : | Latch |
| Material: | Stainless Steel-304 |
| Finish: | Electro Polishing |
| Holding Capacity: | 0.70 kN |
| Supplied with Hook: | FH-5630-SS |
| Weight: | 0.080 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
