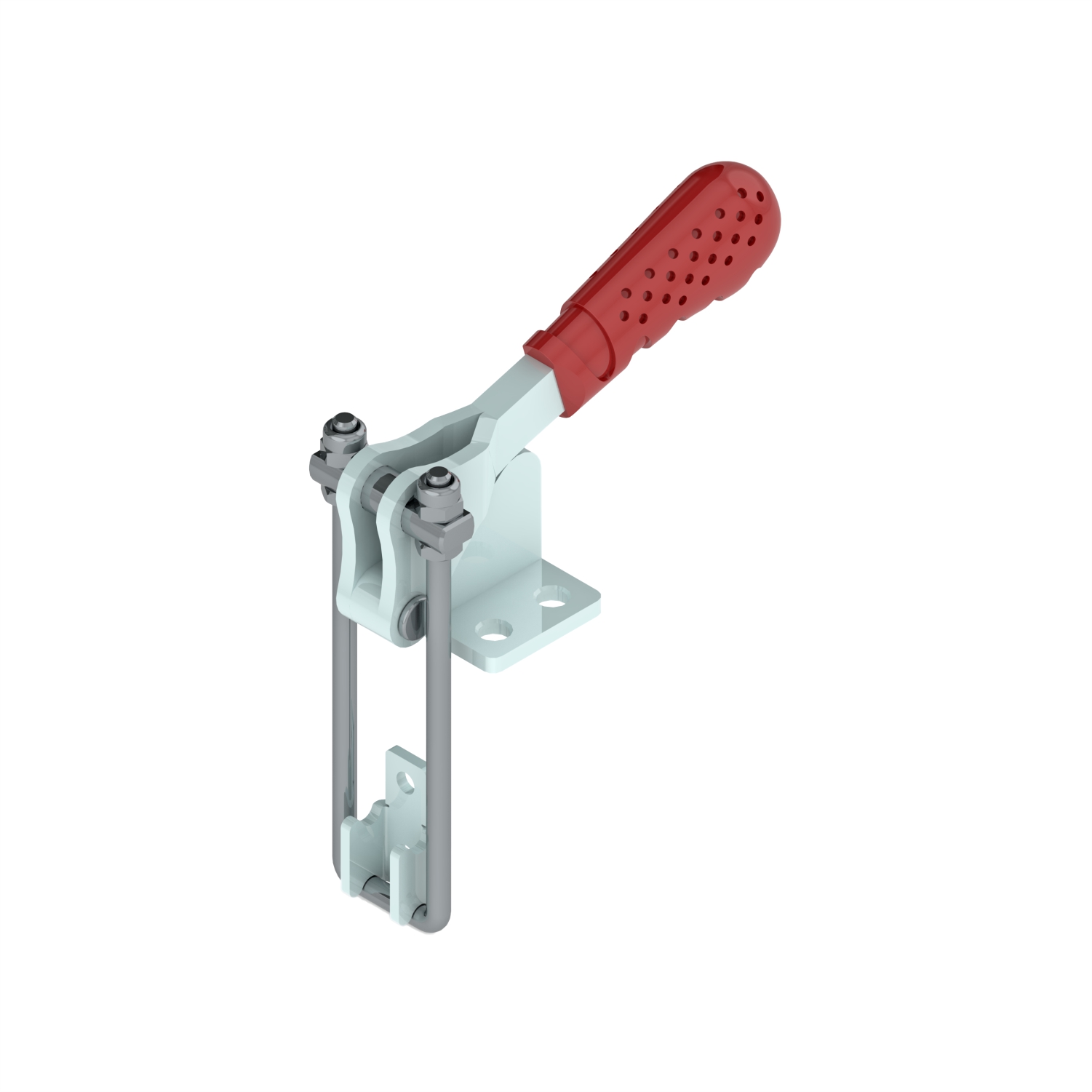

PAV-620
PAV-620 Pull Action, Vertical Series Clamps
Product Overview
PAV-620 is a medium-duty Pull Action Toggle Clamp with a holding capacity of 1.00 kN. It features a horizontal handle and an adjustable U-rod with 39 mm drawing movement, ensuring full clearance for locking and unlocking from the front hook. The clamp is manufactured from high-quality steel and finished with zinc plating for enhanced durability and corrosion resistance.
Technical Specifications
| Handle Type : | Pull |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity : | 1.00 kN |
| Length: | 90.50 mm |
| Width: | 35.00 mm |
| Height: | 55.00 mm |
| Drawing Movement: | 39 |
| U Bolt Part Number: | M49045 |
| Front Hook Part Number: | FH-620324 |
| Weight: | 0.130 Kgs |
Detailed Description
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
Applications
Mould and Tool Clamping, Lid, Door & Cover Latching, Packaging Machines, Welding Fixtures, Transportation & Material Handling Equipment, Testing and Inspection Fixtures, Electronics & Assembly Workstations, Food, Pharma & Process Machinery
