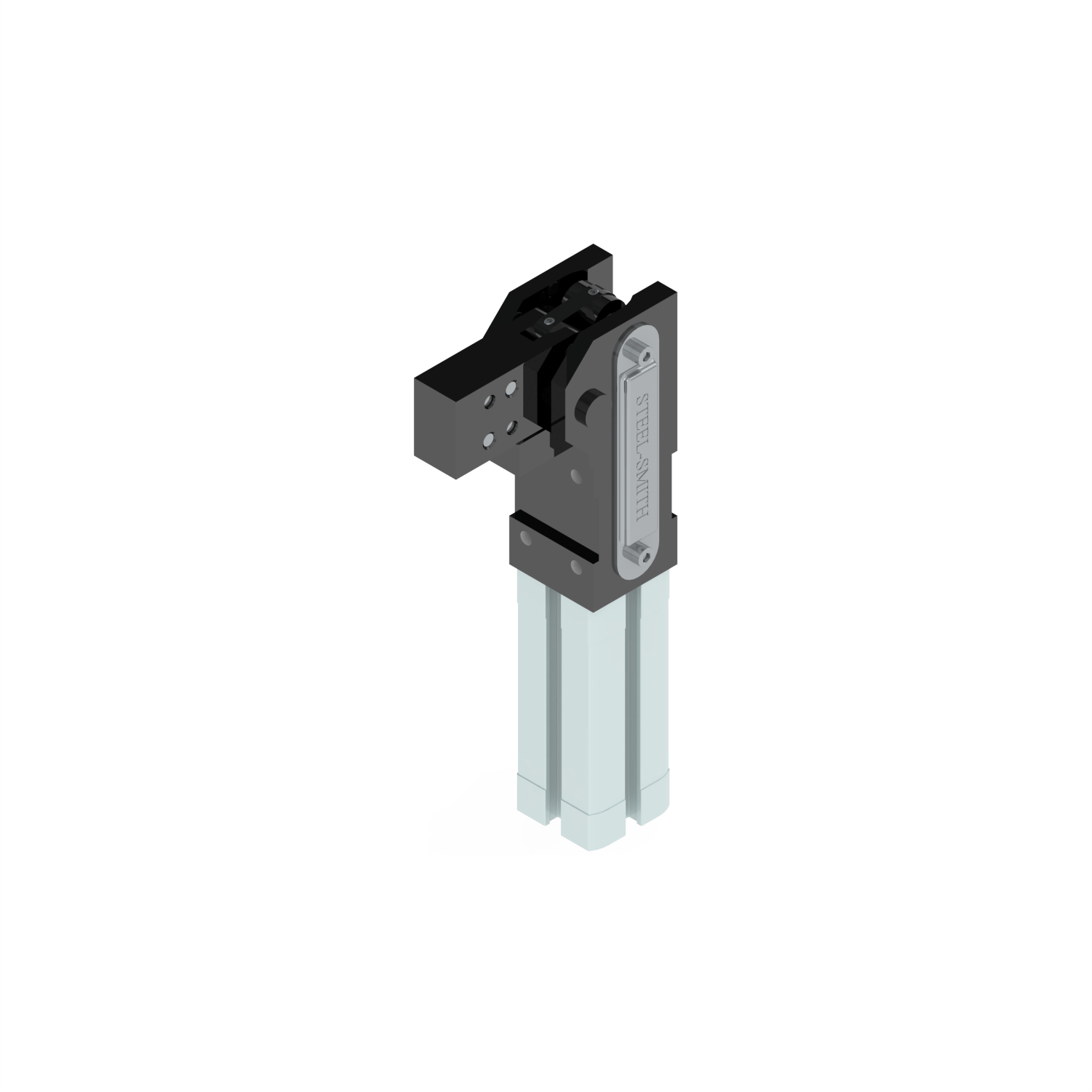

SSC-1640
SSC-1640 Pneumatic Clamps, SSC Series
Product Overview
Pneumatic Clamps, SSC Series
Technical Specifications
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 16 mm |
| Cylinder Stroke: | 40 mm |
| Port Size : | M5 |
| Holding Torque: | 25 Nm |
| Clamping Torque At 5 Bar: | 5 Nm |
| Maximum Permissible Arm Length [mm]: | 125.00 mm |
| Maximum Permissible Weight of Clamping Adapter : | 0.350 Kgs |
| Length: | 71.50 mm |
| Width: | 30.00 mm |
| Height: | 159.00 mm |
| Clamp Bar Opening (±3°): | 120° |
| Weight: | 0.800 Kgs |
