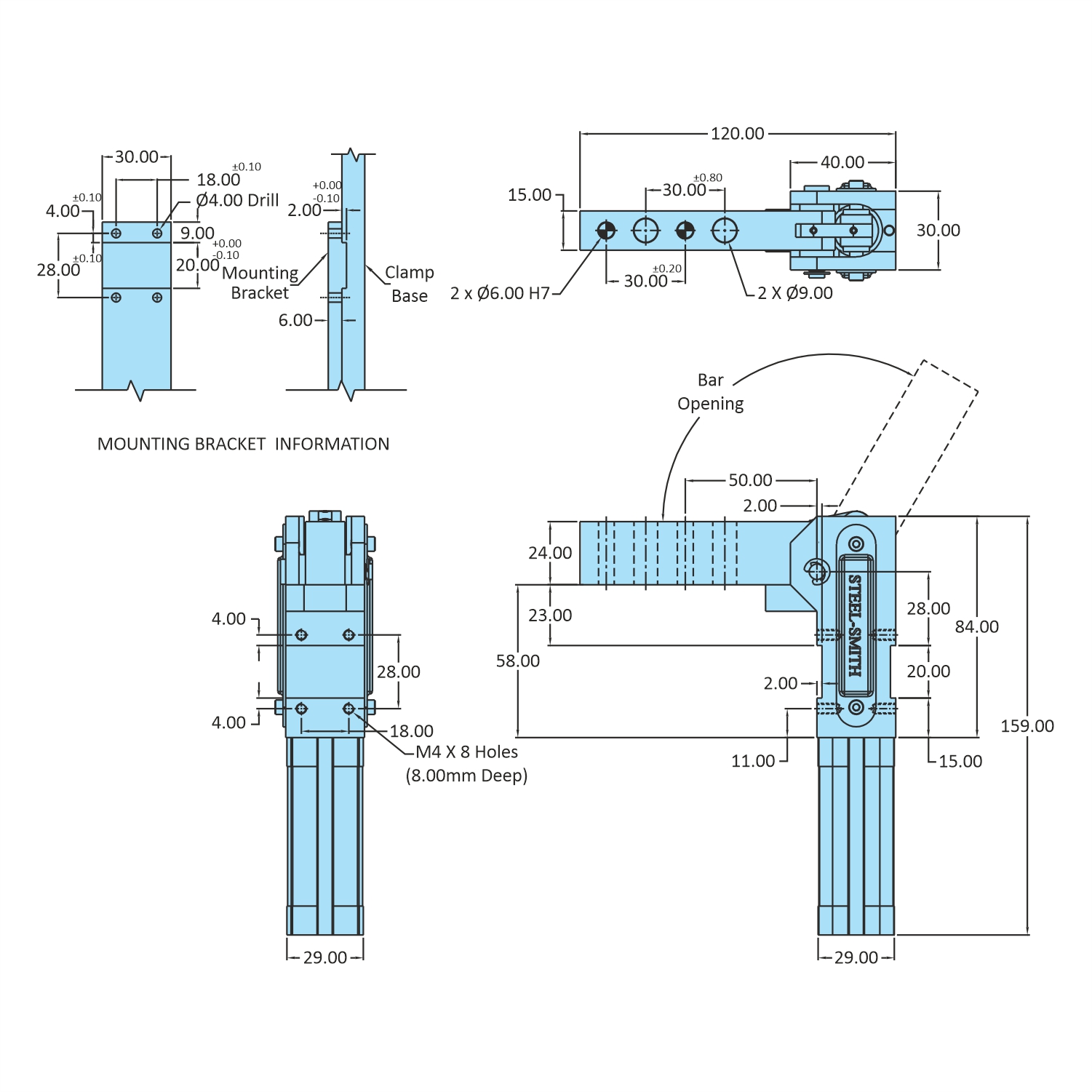

SSC-1640-HA
SSC-1640-HA Pneumatic Clamps, SSC Series, Horizontal Arm
Product Overview
Pneumatic Clamps, SSC Series, Horizontal Arm
Technical Specifications
| Cylinder Type : | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 16 mm |
| Cylinder Stroke : | 40 mm |
| Port Size : | M5 |
| Holding Torque : | 25 Nm |
| Clamping Torque At 5 Bar: | 5 Nm |
| Maximum Permissible Arm Length [mm]: | 125.00 mm |
| Maximum Permissible Weight of Clamping Adapter : | 0.250 Kgs |
| Length: | 120.00 mm |
| Width: | 30.00 mm |
| Height: | 159.00 mm |
| Clamp Bar Opening (±3°): | 120° |
| Weight: | 0.800 Kgs |
