SSC-2550

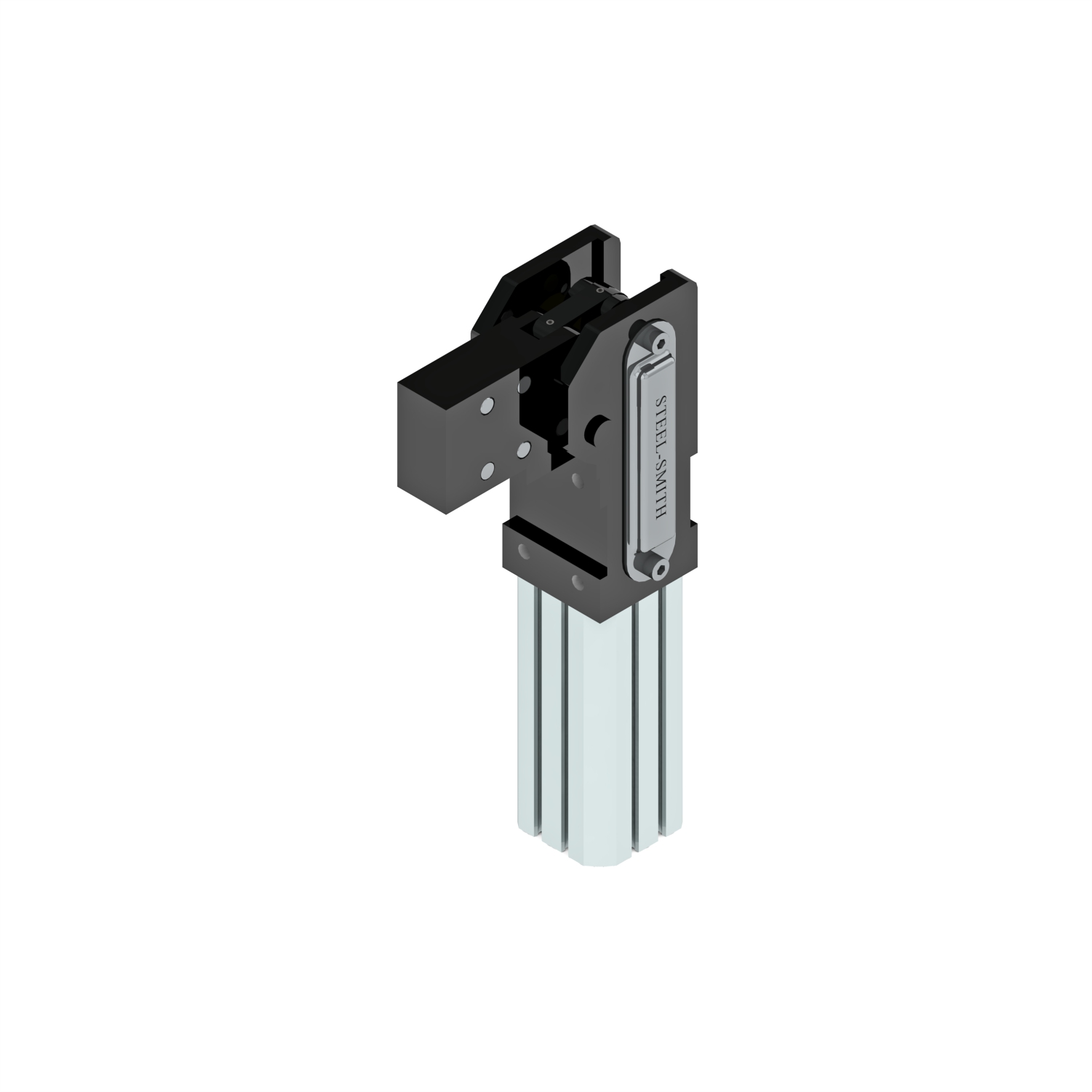

SSC-2550 Pneumatic Clamps, SSC Series
Product Overview
Pneumatic Clamps, SSC Series
Technical Specifications
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 25 mm |
| Cylinder Stroke: | 50 mm |
| Port Size : | M5 |
| Holding Torque: | 100 Nm |
| Clamping Torque At 5 Bar: | 20 Nm |
| Maximum Permissible Arm Length [mm]: | 150.00 mm |
| Maximum Permissible Weight of Clamping Adapter : | 1.000 Kgs |

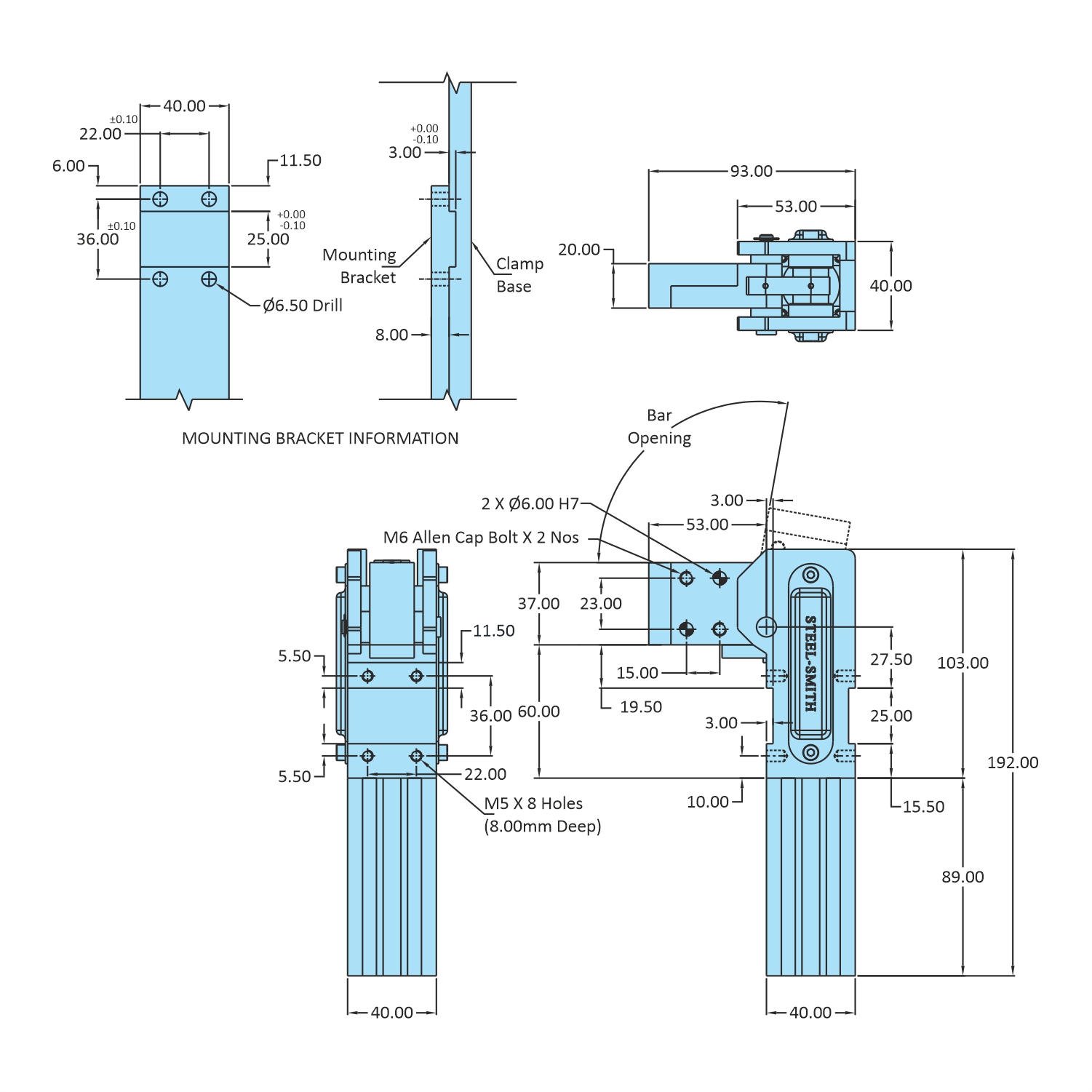

| Length: | 93.00 mm |
| Width: | 40.00 mm |
| Height: | 192.00 mm |
| Clamp Bar Opening (±3°): | 100° |
| Weight: | 1.300 Kgs |
