SSC-4065

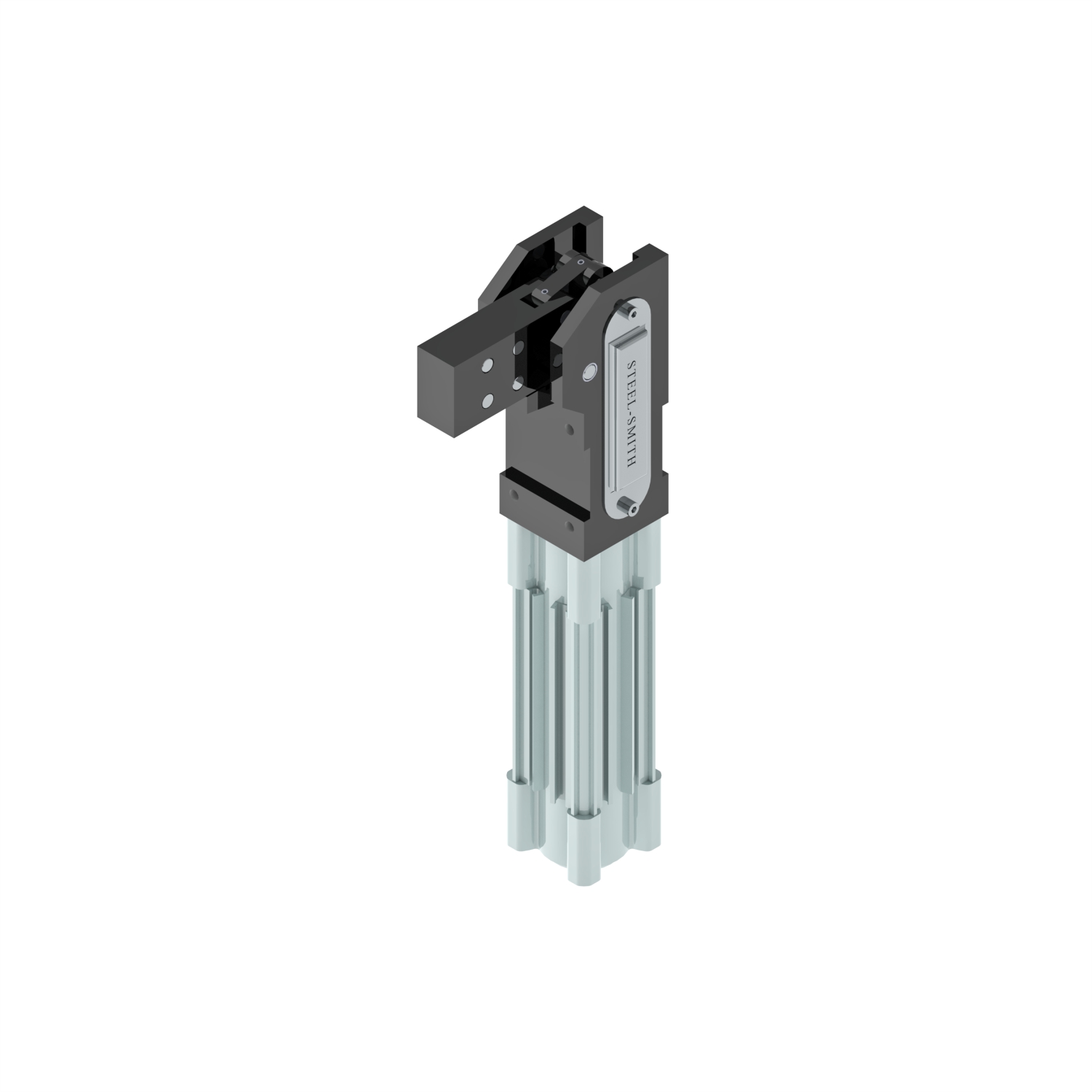

SSC-4065 Pneumatic Clamps, SSC Series
Product Overview
Pneumatic Clamps, SSC Series
Technical Specifications
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 40 mm |
| Cylinder Stroke: | 80 mm |
| Port Size : | G 1/4 |
| Holding Torque: | 250 Nm |
| Clamping Torque At 5 Bar: | 50 Nm |
| Maximum Permissible Arm Length [mm]: | 200.00 mm |
| Maximum Permissible Weight of Clamping Adapter : | 1.300 Kgs |

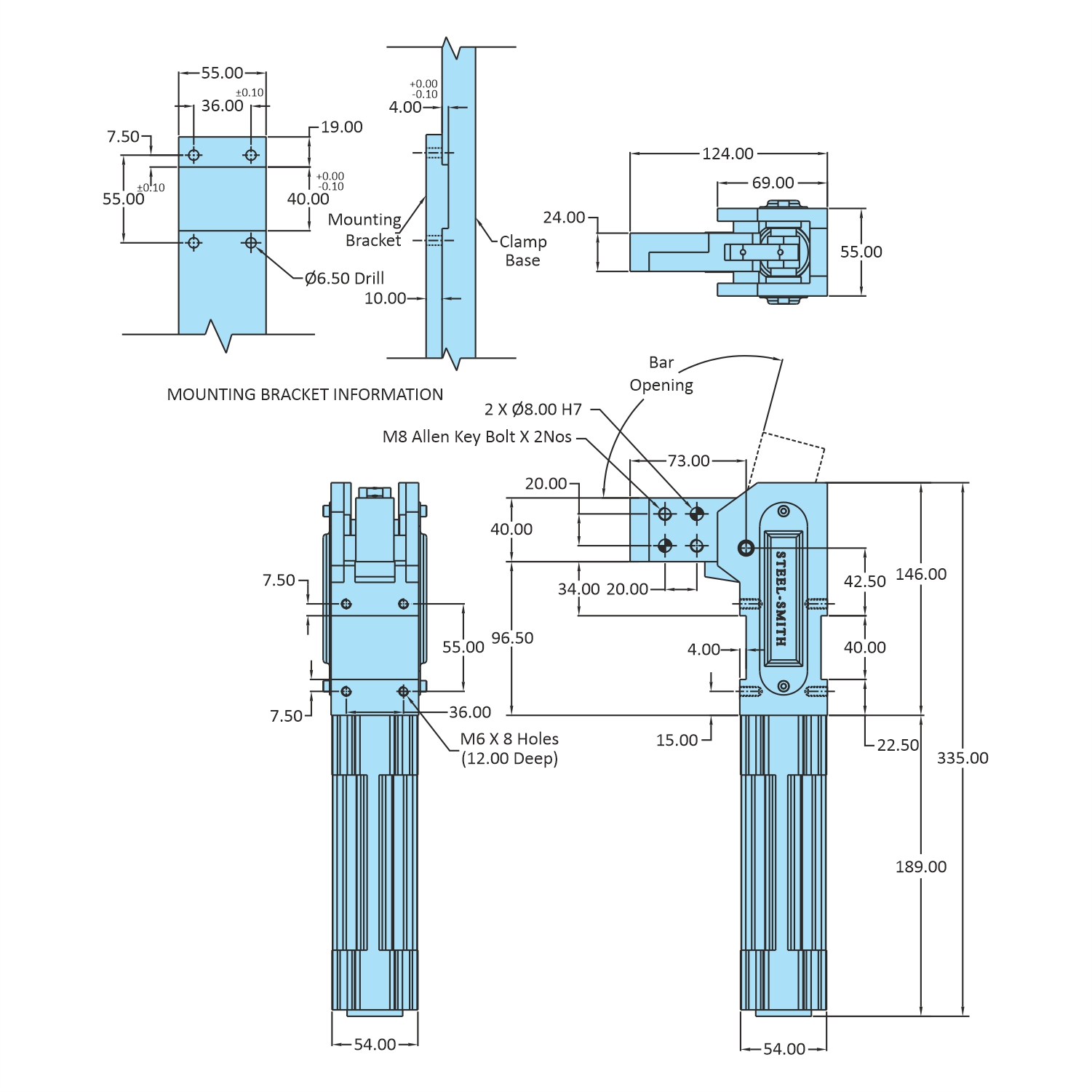

| Length: | 124.00 mm |
| Width: | 55.00 mm |
| Height: | 335.00 mm |
| Clamp Bar Opening (±3°): | 105° |
| Weight: | 3.600 Kgs |
