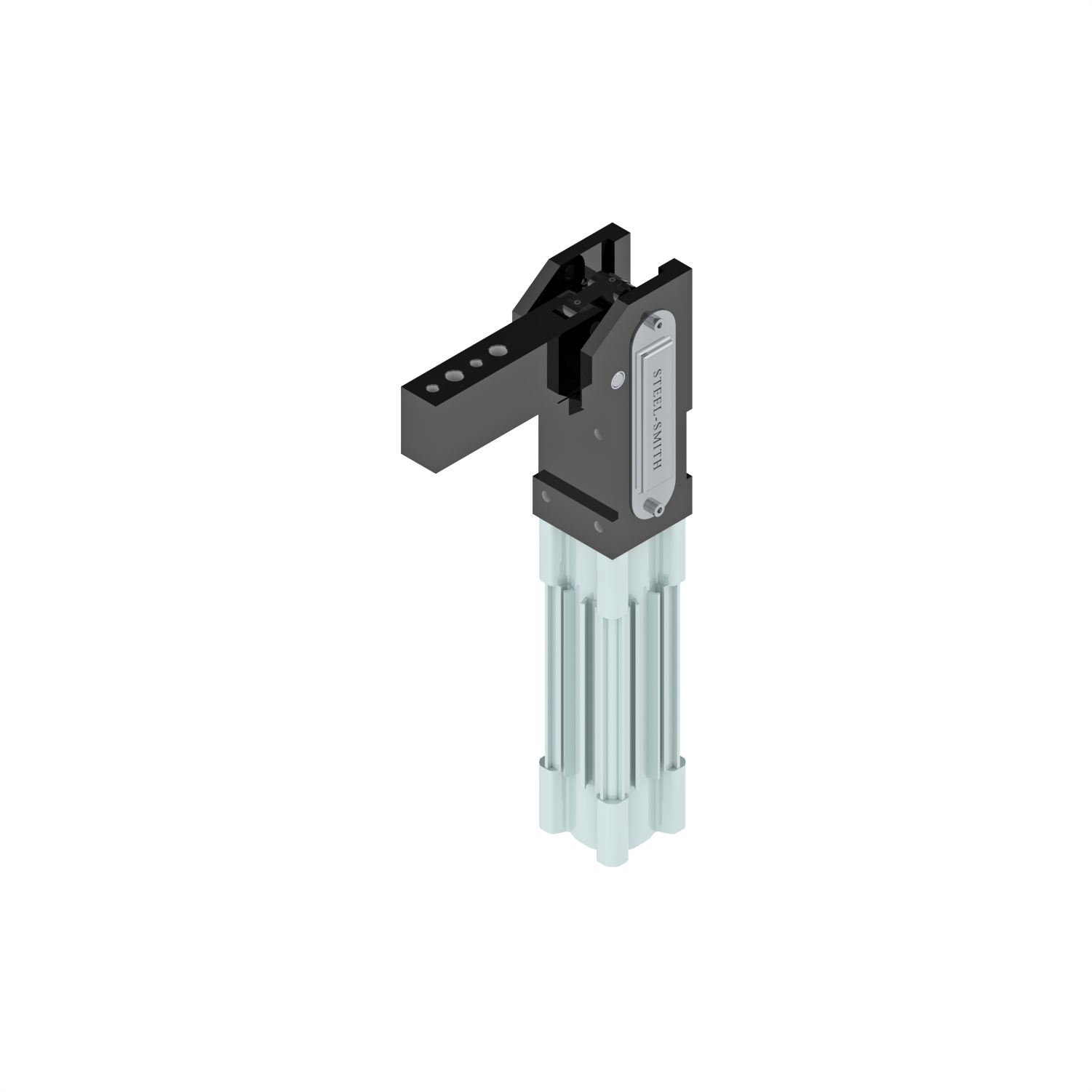

SSC-4065-HA
SSC-4065-HA Pneumatic Clamps, SSC Series, Horizontal Arm
Product Overview
Pneumatic Clamps, SSC Series, Horizontal Arm
Technical Specifications
| Cylinder Type : | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 40 mm |
| Cylinder Stroke : | 80 mm |
| Port Size : | G 1/4 |
| Holding Torque : | 250 Nm |
| Clamping Torque At 5 Bar: | 50 Nm |
| Maximum Permissible Arm Length [mm]: | 200.00 mm |
| Maximum Permissible Weight of Clamping Adapter : | 1.000 Kgs |
| Length: | 161.00 mm |
| Width: | 55.00 mm |
| Height: | 335.00 mm |
| Clamp Bar Opening (±3°): | 105° |
| Weight: | 3.600 Kgs |
