SSC-5065-HA

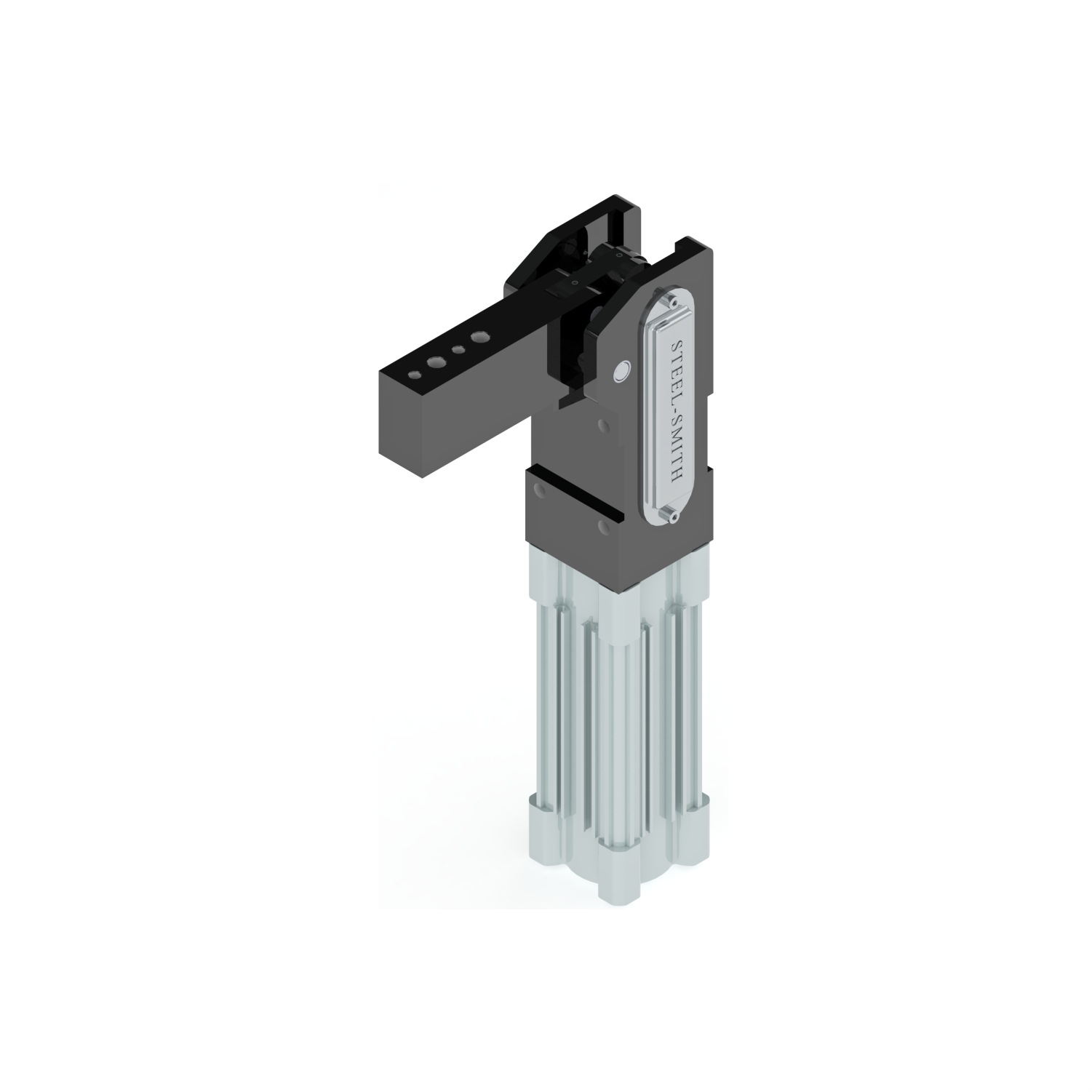

SSC-5065-HA Pneumatic Clamps, SSC Series, Horizontal Arm
Product Overview
Pneumatic Clamps, SSC Series, Horizontal Arm
Technical Specifications
| Cylinder Type : | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 50 mm |
| Cylinder Stroke : | 80 mm |
| Port Size : | G 1/4 |
| Holding Torque : | 600 Nm |
| Clamping Torque At 5 Bar: | 120 Nm |
| Maximum Permissible Arm Length [mm]: | 250.00 mm |
| Maximum Permissible Weight of Clamping Adapter : | 1.500 Kgs |

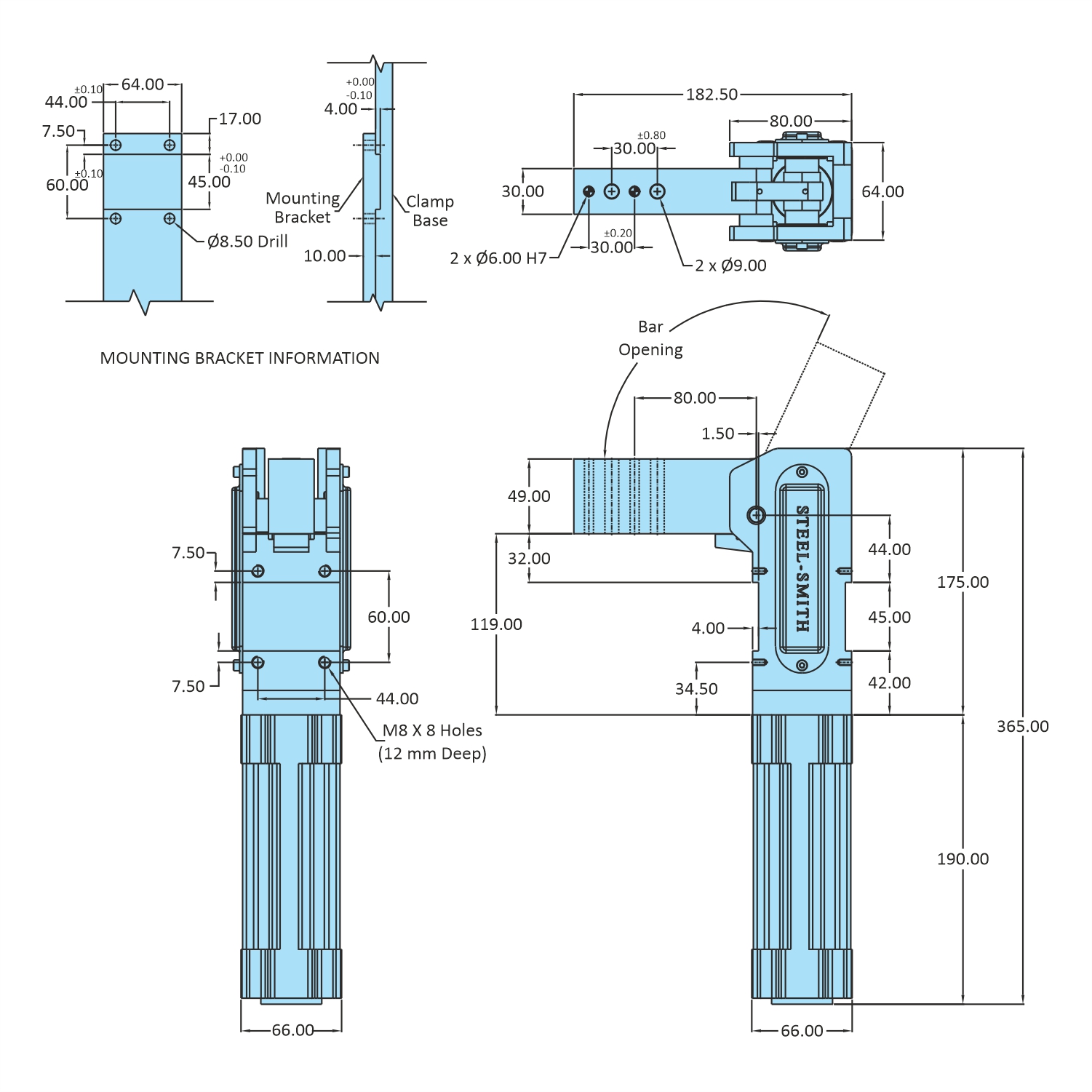

| Length: | 182.50 mm |
| Width: | 64.00 mm |
| Height: | 365.00 mm |
| Clamp Bar Opening (±3°): | 115° |
| Weight: | 5.600 Kgs |
