SSC-63100

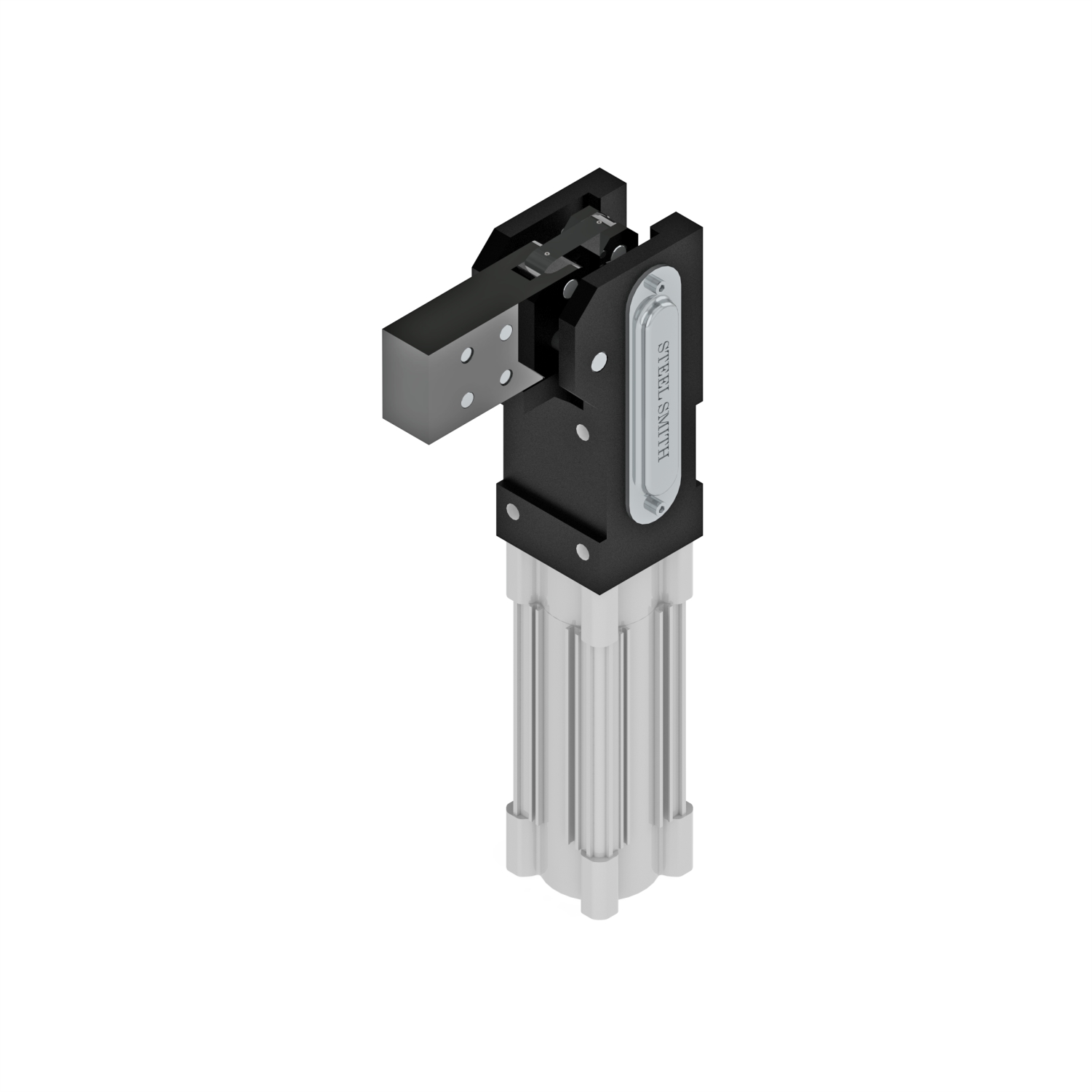

SSC-63100 Pneumatic Clamps, SSC Series
Product Overview
Pneumatic Clamps, SSC Series
Technical Specifications
| Cylinder Type: | ISO Series Double Acting Magnetic Cylinder |
| Cylinder Bore: | 63 mm |
| Cylinder Stroke: | 100 mm |
| Port Size : | G 3/8 |
| Holding Torque: | 950 Nm |
| Clamping Torque At 5 Bar: | 190 Nm |
| Maximum Permissible Arm Length [mm]: | 300.00 mm |
| Maximum Permissible Weight of Clamping Adapter : | 2.000 Kgs |

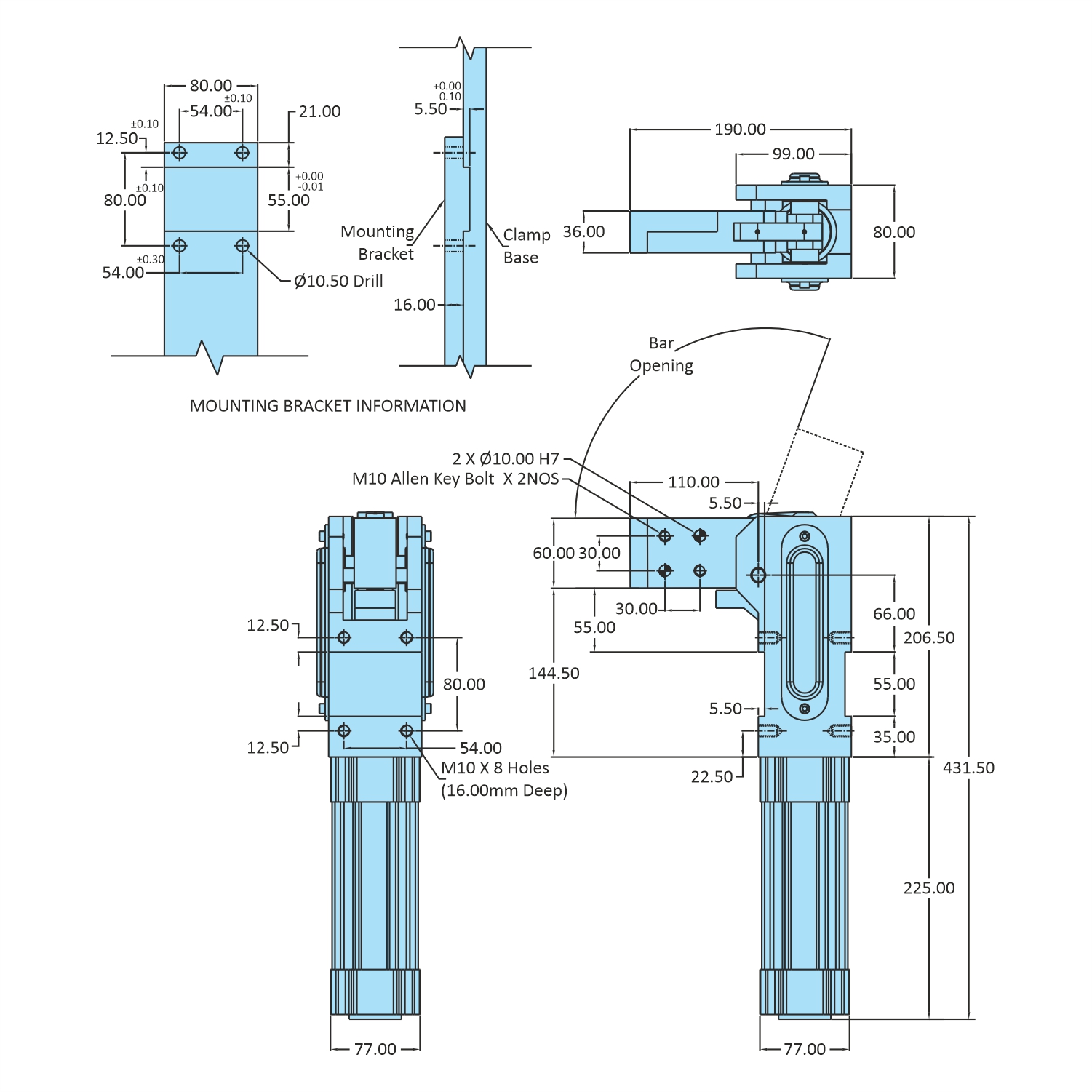

| Length: | 190.00 mm |
| Width: | 80.00 mm |
| Height: | 431.50 mm |
| Clamp Bar Opening (±3°): | 110° |
| Weight: | 10.200 Kgs |
