VTC-207-TULB

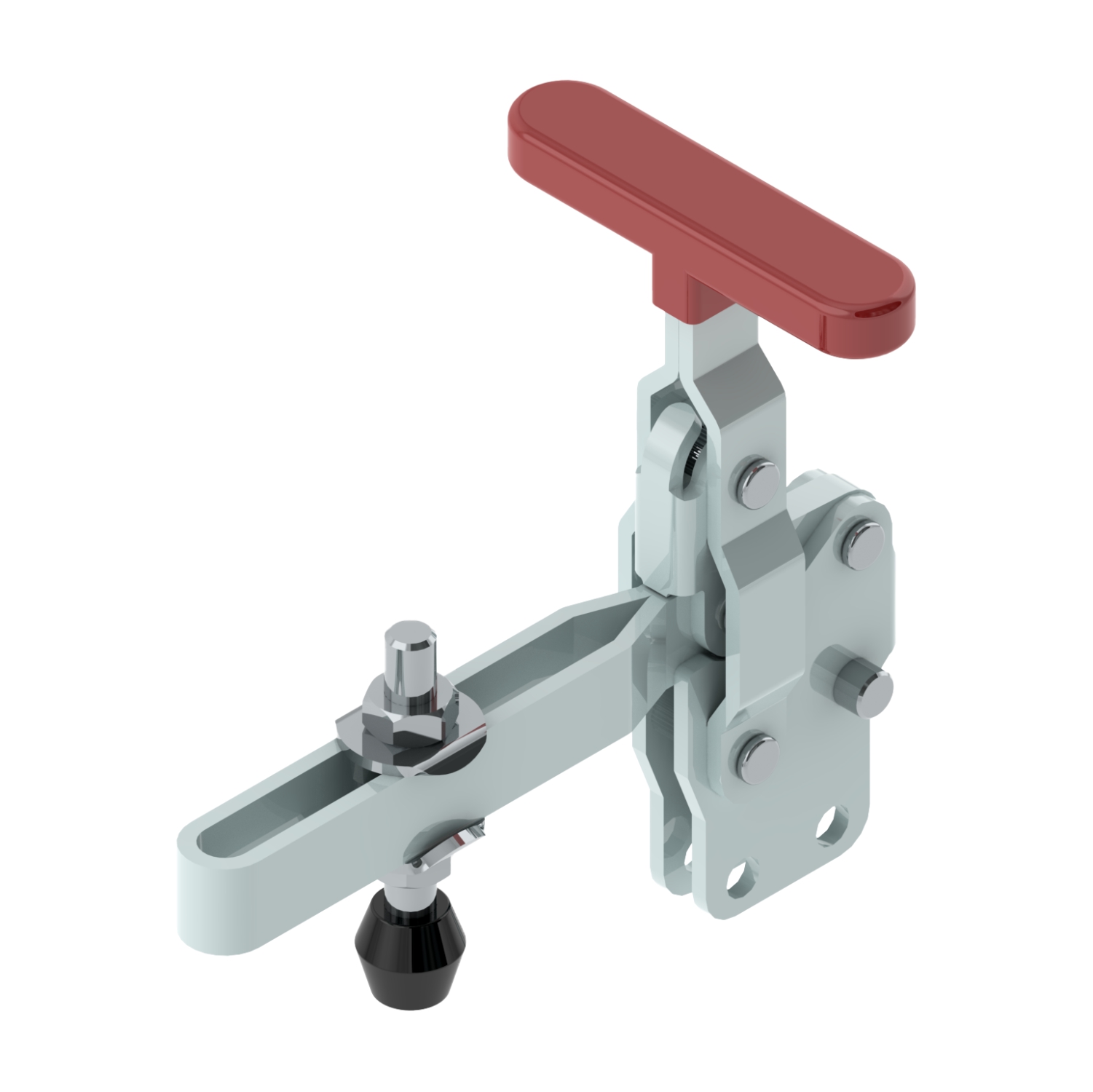

VTC-207-TULB Vertical Hold Down Action, Straight Base, T-Handle, U Bar
Product Overview
VTC-207-TULB is medium duty vertical hold down action t-handle toggle clamp with 1.50 kN holding capacity, featuring a straight base, adjustable U-bar arm and 115 degree opening angle giving full clearance for loading & unloading of work piece.

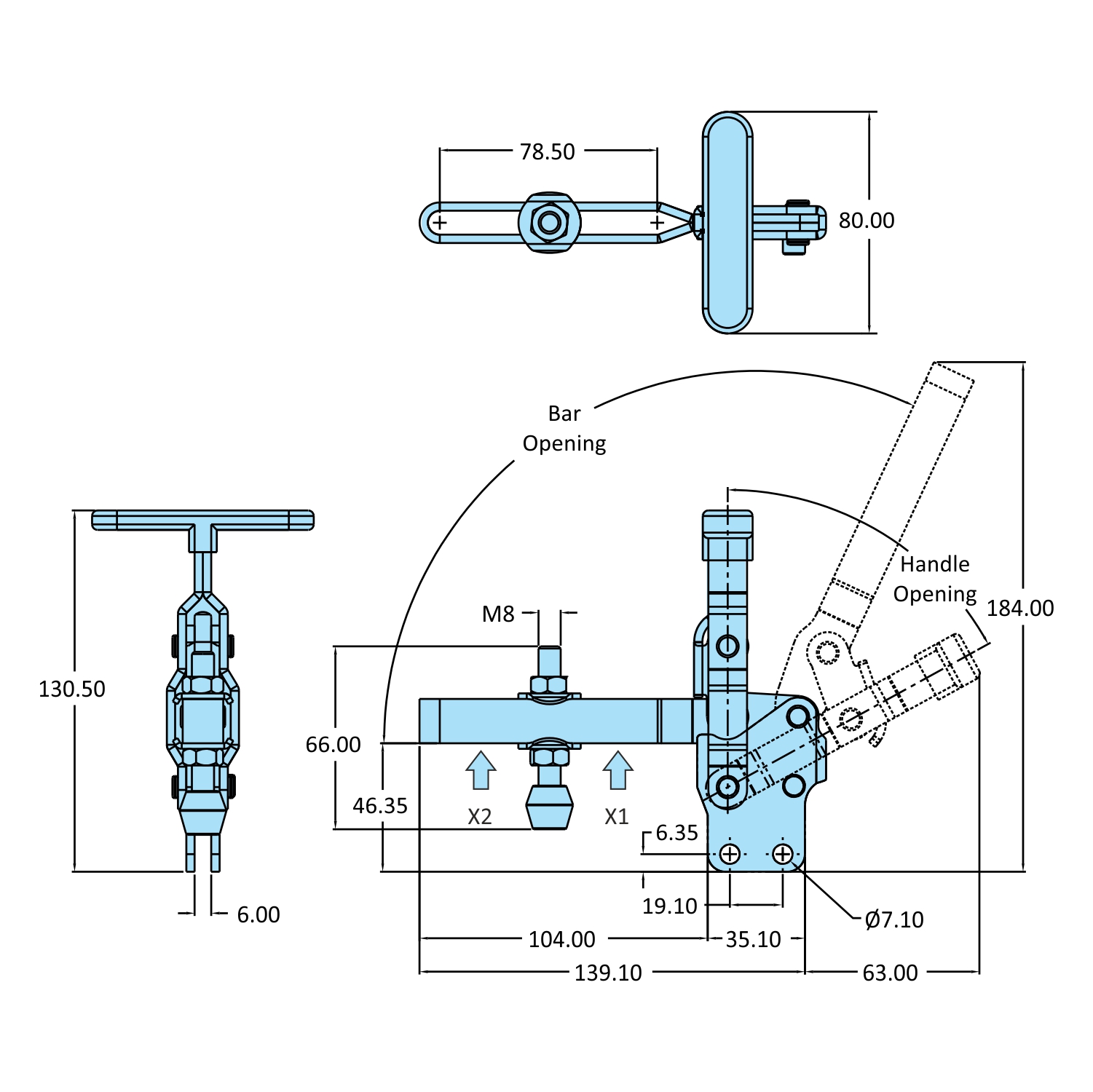

Technical Specifications
| Handle Type: | Vertical |
| Clamping Bar Style: | Adjustable Arm |
| Base Type: | Straight Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity X1: | 1.50 kN |
| Holding Capacity X2: | 0.70 kN |
| Length: | 139.10 mm |
| Width: | 6.00 mm |
| Height: | 130.50 mm |
| Handle Opening: | 61° |
| Clamping Bar Opening: | 115° |
| Supplied With: | RT-865-2N2W & M10-WSHR |
| Weight: | 0.340 Kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
