VTC-4595-SF-BS

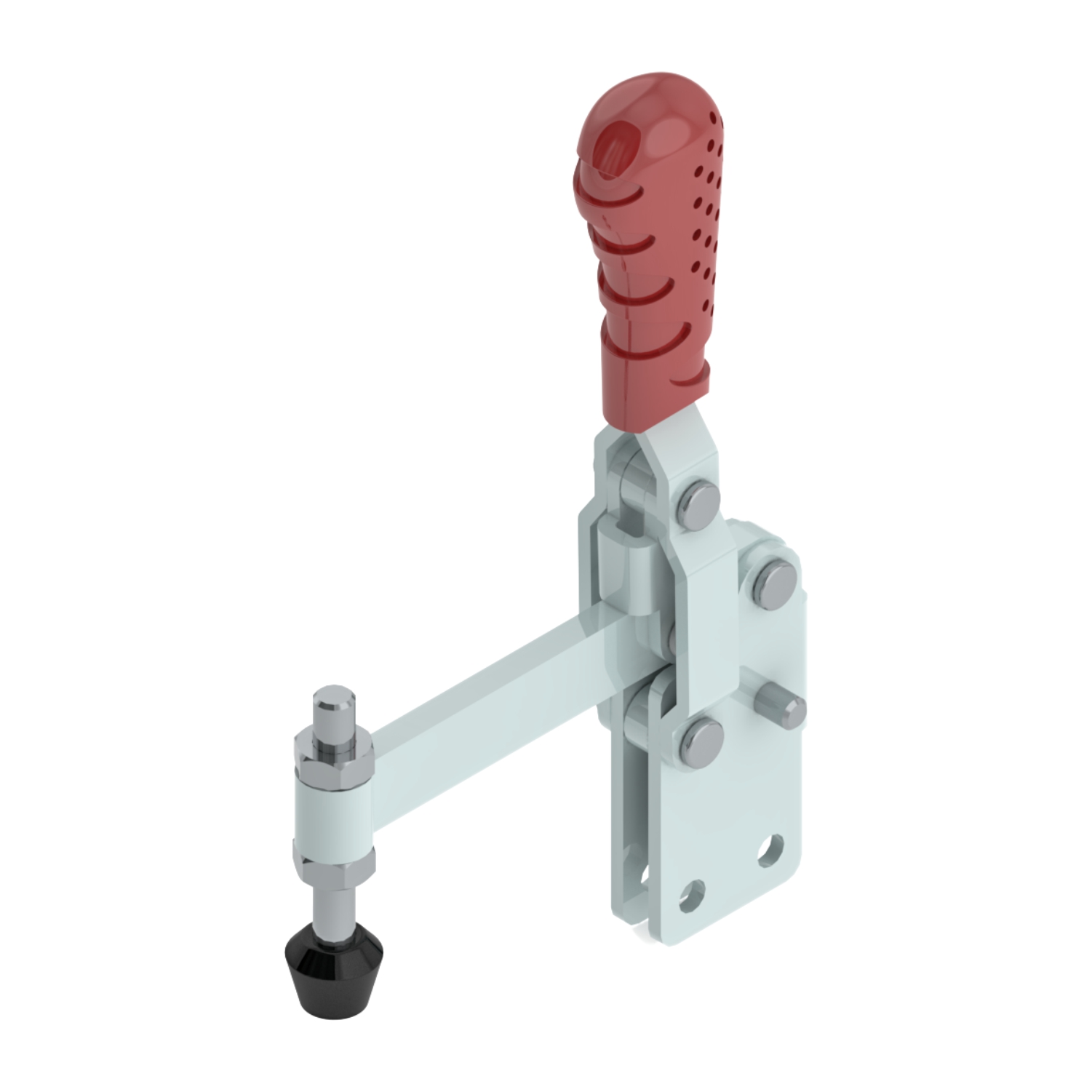

VTC-4595-SF-BS Vertical Hold Down Action, Straight Base, Fixed Spindle
Product Overview
VTC-4595-SF-BS is medium duty vertical hold down action toggle clamp with 2.00 kN holding capacity, featuring a straight base, spindle fixed arm and 120 degree opening angle giving full clearance for loading & unloading of work piece.

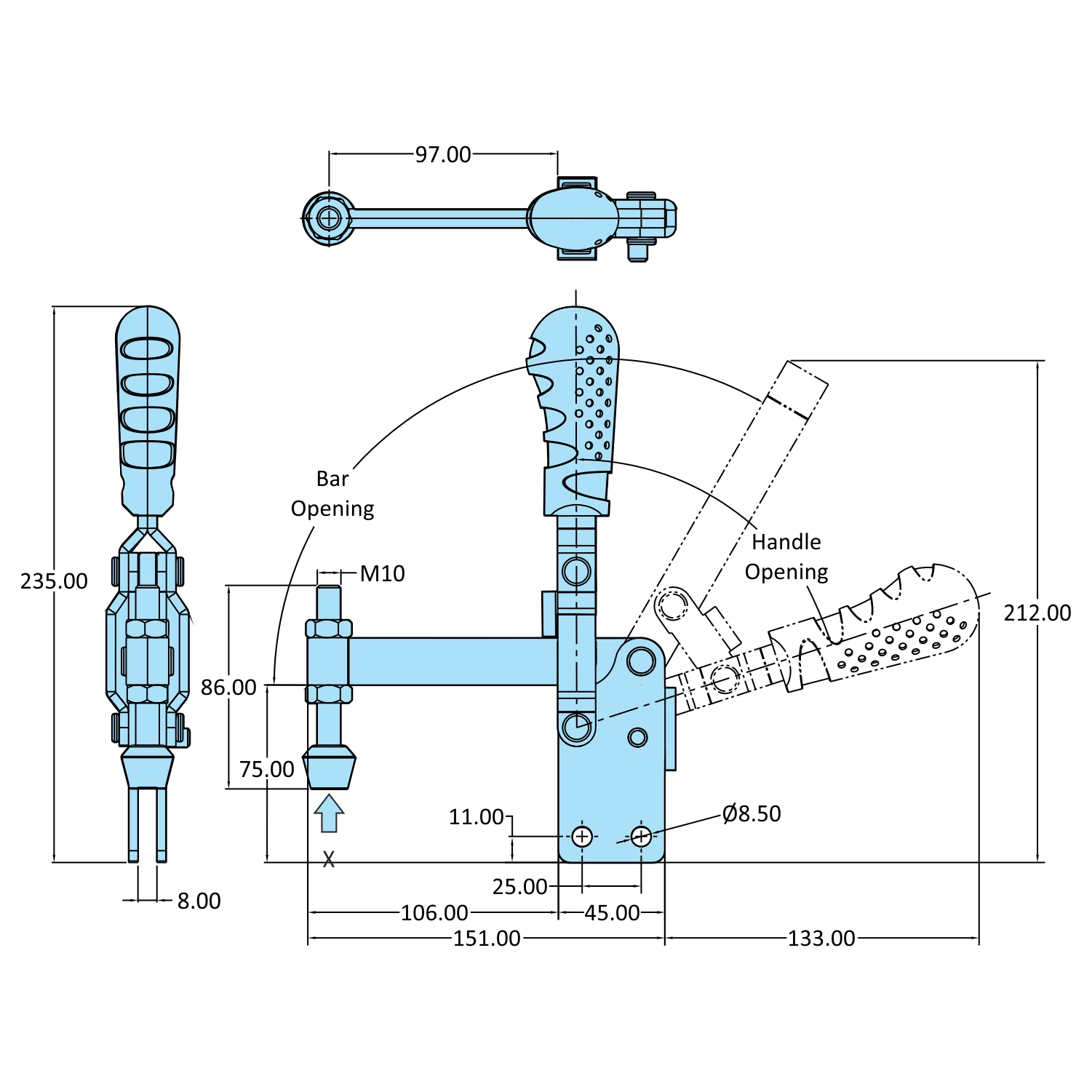

Technical Specifications
| Handle Type: | Vertical |
| Clamping Bar Style: | Spindle Fixed |
| Base Type: | Straight Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity X2: | 2.00 kN |
| Length: | 151.00 mm |
| Width: | 8.00 mm |
| Height: | 235.00 mm |
| Handle Opening: | 72° |
| Clamping Bar Opening: | 120° |
| Supplied With: | RT-1085-2N & M10-WSHR |
| Weight: | 0.820 Kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
