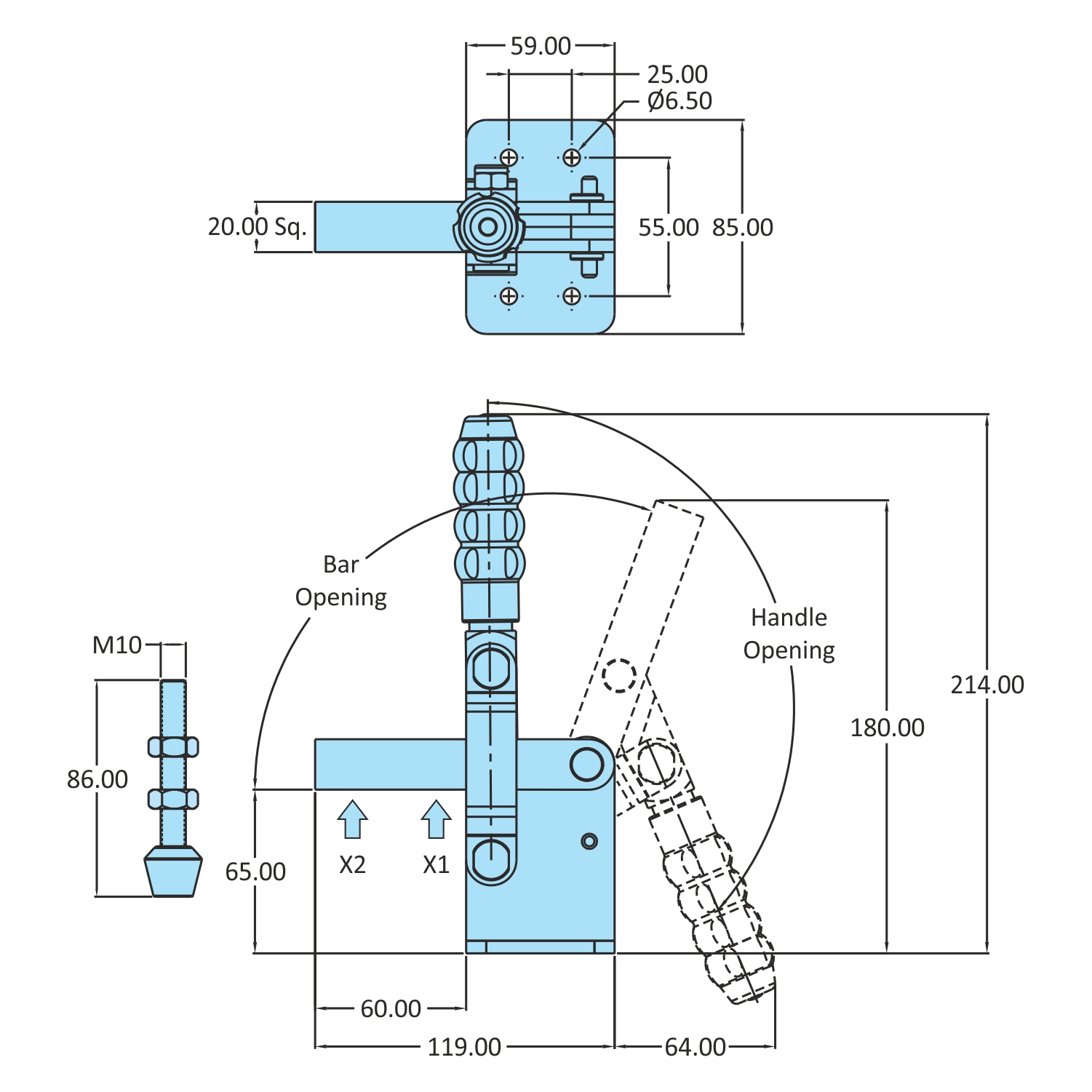

VTC-6065-SH
VTC-6065-SH Vertical Hold Down Action, Heavy Duty, Flange Base
Product Overview
VTC-6065-SH is heavy duty vertical hold down action toggle clamp with 7.40 kN holding capacity, featuring a flanged base, solid arm and 157 degree opening angle giving full clearance for loading & unloading of work piece.
Technical Specifications
| Handle Type: | Vertical |
| Clamping Bar Style: | Solid Arm |
| Base Type: | Flanged Base |
| Material: | Steel |
| Finish: | Zinc Plated |
| Holding Capacity X1: | 7.40 kN |
| Holding Capacity X2: | 4.90 kN |
| Length: | 119.00 mm |
| Width: | 85.00 mm |
| Height: | 214.00 mm |
| Handle Opening: | 110° |
| Clamping Bar Opening: | 157° |
| Supplied With: | RT-1085-2N |
| Weight: | 1.300 Kgs |
Detailed Description
Welding Fixtures, Assembly Fixtures, Checking Fixtures, Wood-Working, Closures, Food Processing, Pharmaceutical Machines, PCB Testing and Assembly, Special Purpose Machine.
Industry Verticals
Automotive, Aerospace and Defense, Construction and Agriculture Equipment, Wind Energy, Food and Packaging, Pharma Machine Manufacturer, Automation and Robotics.
